Operating elements for crane operation
9.2 Short description of the operating elements
9 - 142 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

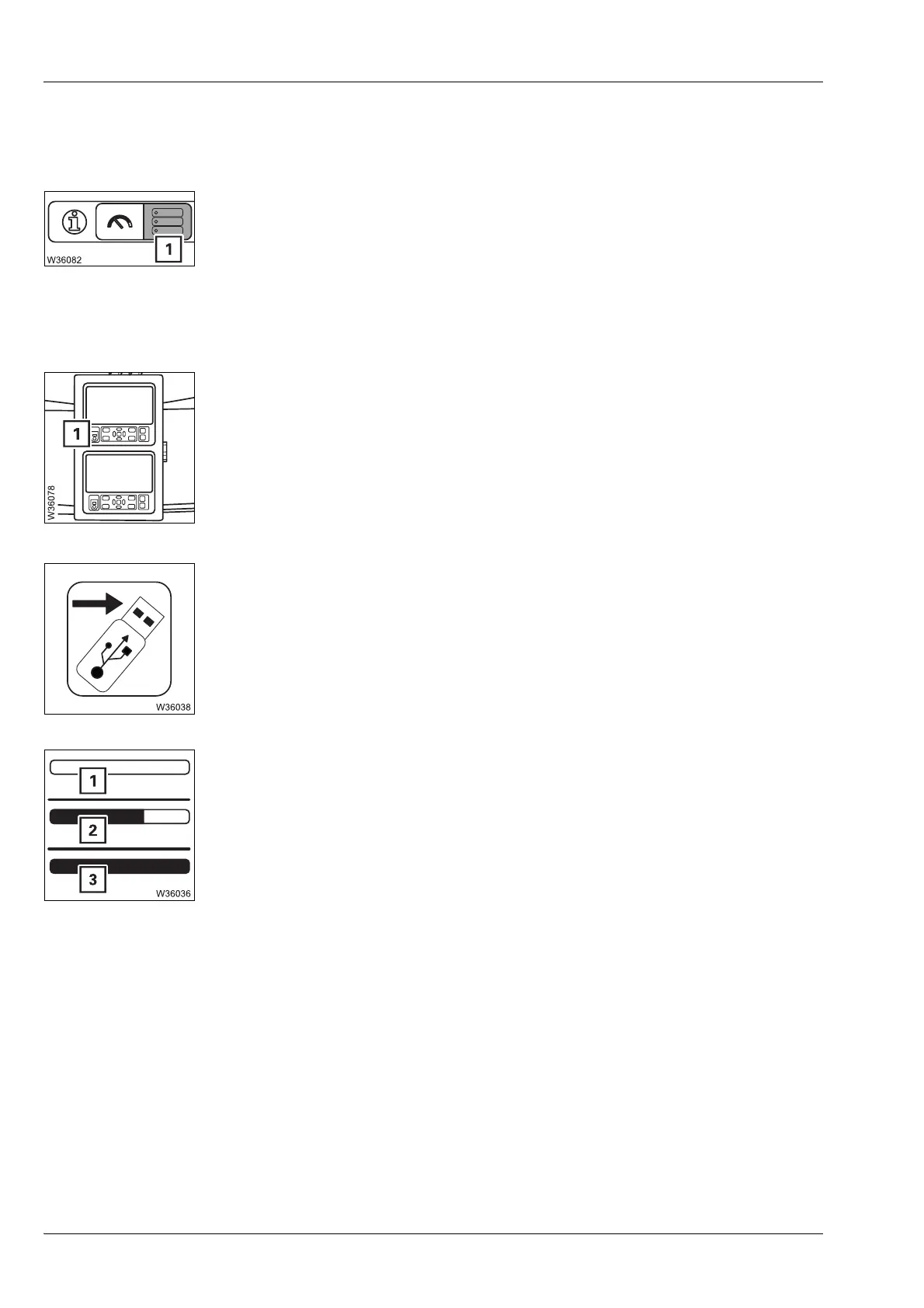

In the Datalogger menu
à Datalogger, p. 11 - 68
RCL display In the
Datalogger menu
à Datalogger, p. 11 - 68
USB connection for data export
Export data
Can only be selected when a USB stick is connected to the
RCL control unit.
Starts the data export to the USB stick.
Display of export progress
There are no short descriptions for these displays.
–In the
Lifting capacity tables; menu
à Displaying the lifting capacity tables, p. 11 - 59
–In the
Monitoring menu
à Checks before operating the crane, p. 11 - 45,
à Display during the crane operation, p. 11 - 49.
– To open: Select and confirm symbol (1)
1 Connect the USB stick – the symbol for the export is activated
1 0% exported
2 75% exported
3 100% exported
