Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
9 - 164 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
Separate steering In the driver's cab: The ignition key must be in position 1.
Crane cab – The parking brake must be released.

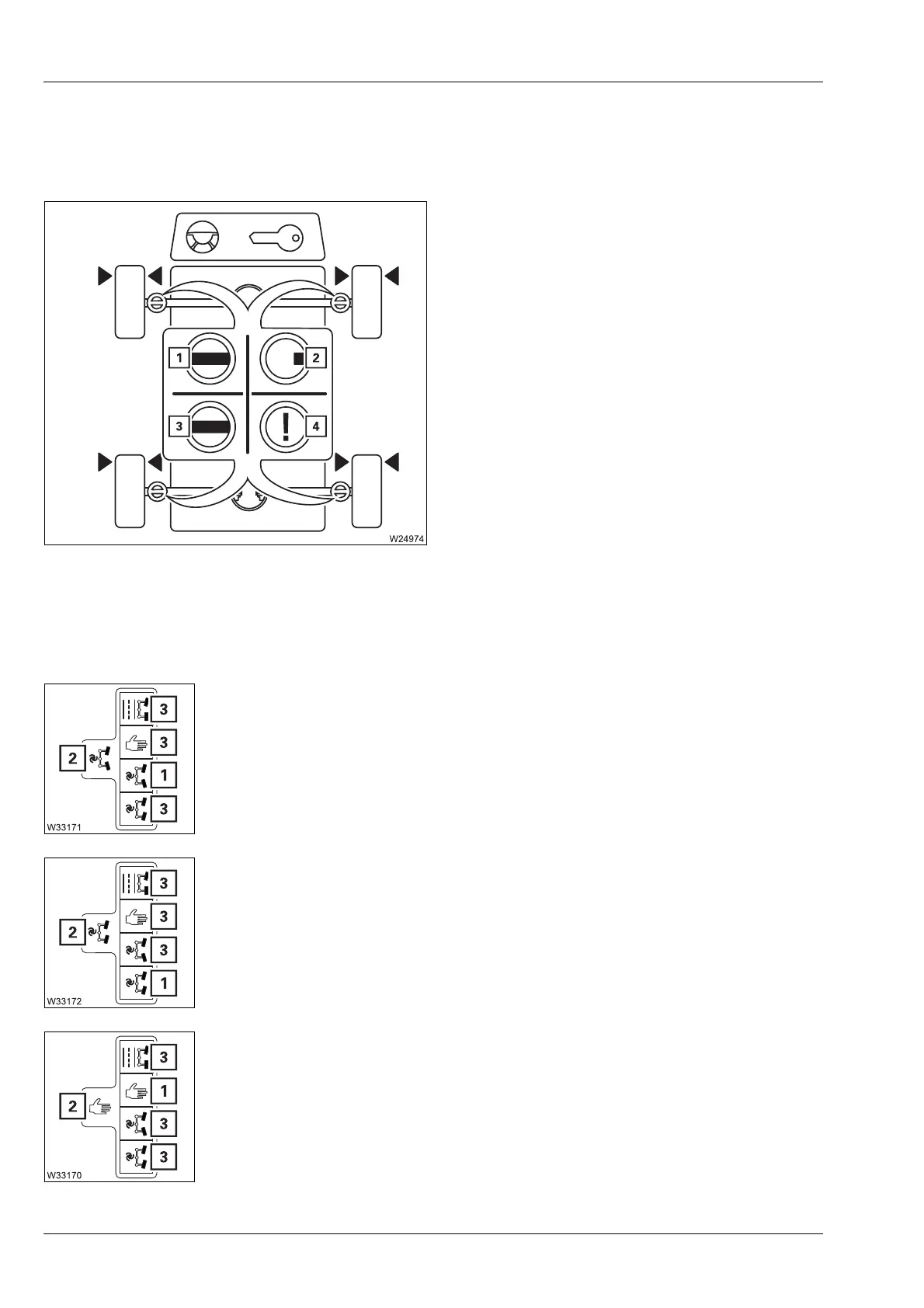

Steering locking status display
The current status is shown using different
symbols:
The following applies to all steering modes:
The selected symbol must be confirmed within 2 seconds, otherwise the
type of steering remains unchanged.
Automatic separate steering for driving around corners on/off
Automatic separate steering for crab travel mode on/off
Manual separate steering on/off
1Green – locked
2Red – unlocked
3 Yellow – intermediate position
4 Violet – error
à p. 13 - 22
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – Symbol (3)
à p. 13 - 22
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – Symbol (3)
à p. 13 - 22
– Switch on: Select symbol (1) and confirm – Symbol (2) is displayed
– Switch off: Select a different steering mode – Symbol (3)
à p. 13 - 22
