Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 690 en 11 - 71
GMK4100L-1
23.11.2017

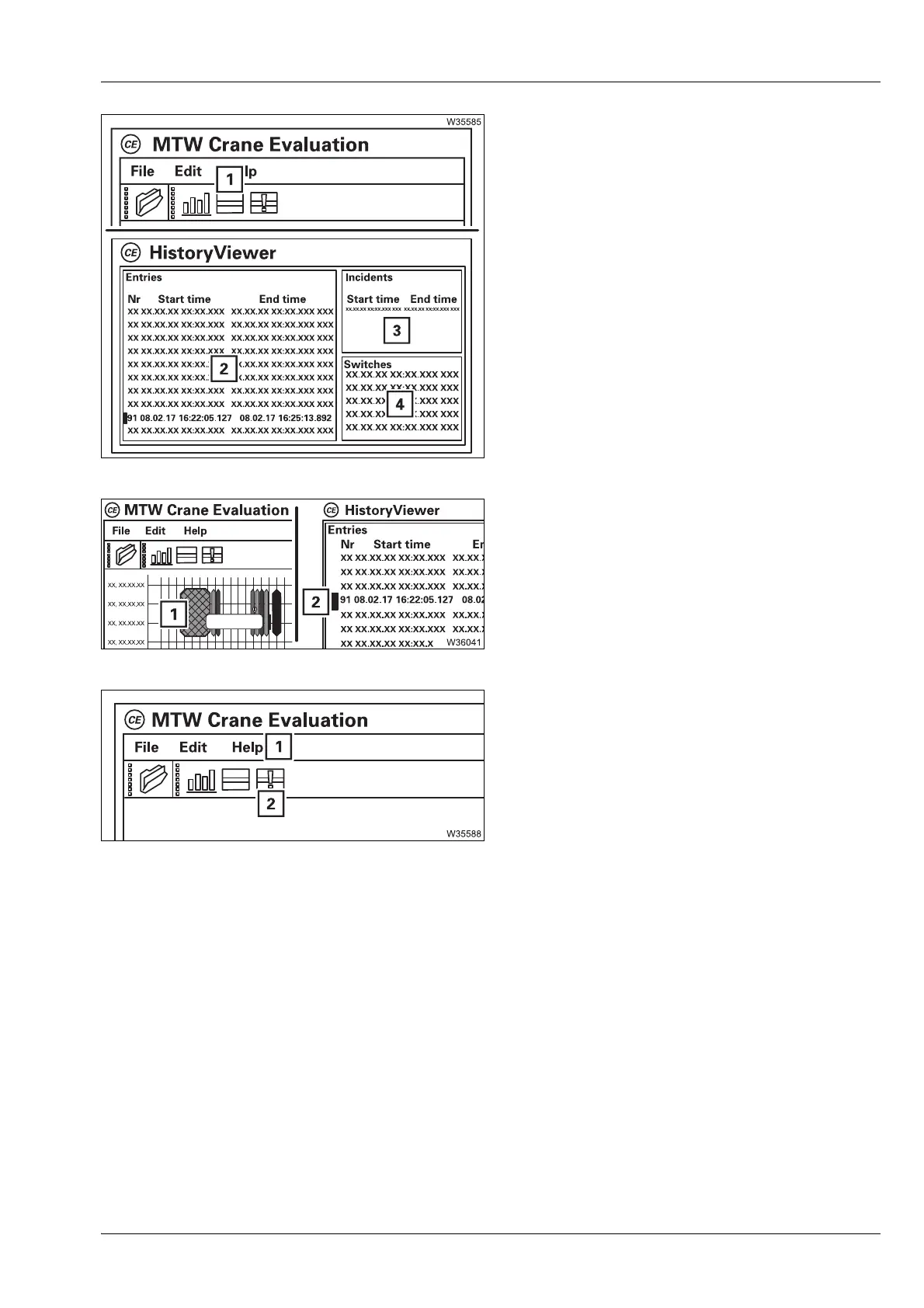

Displaying tables
• Select the symbol (1) – a table is displayed.
When the
Crane use graphic is also open,
an element is displayed and marked in the
respective other window when clicked.
Display the error list
• Select the symbol (2) – a table showing all
imported errors is displayed.
Other
Select the command (1) for further information.
2 List with all lifts
3 List with all events
4 List with all actuated switches
1 Graphical marking
2 Tabular marking
