11.5 Crane operation with main boom
11 - 92 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
Telescoping
process

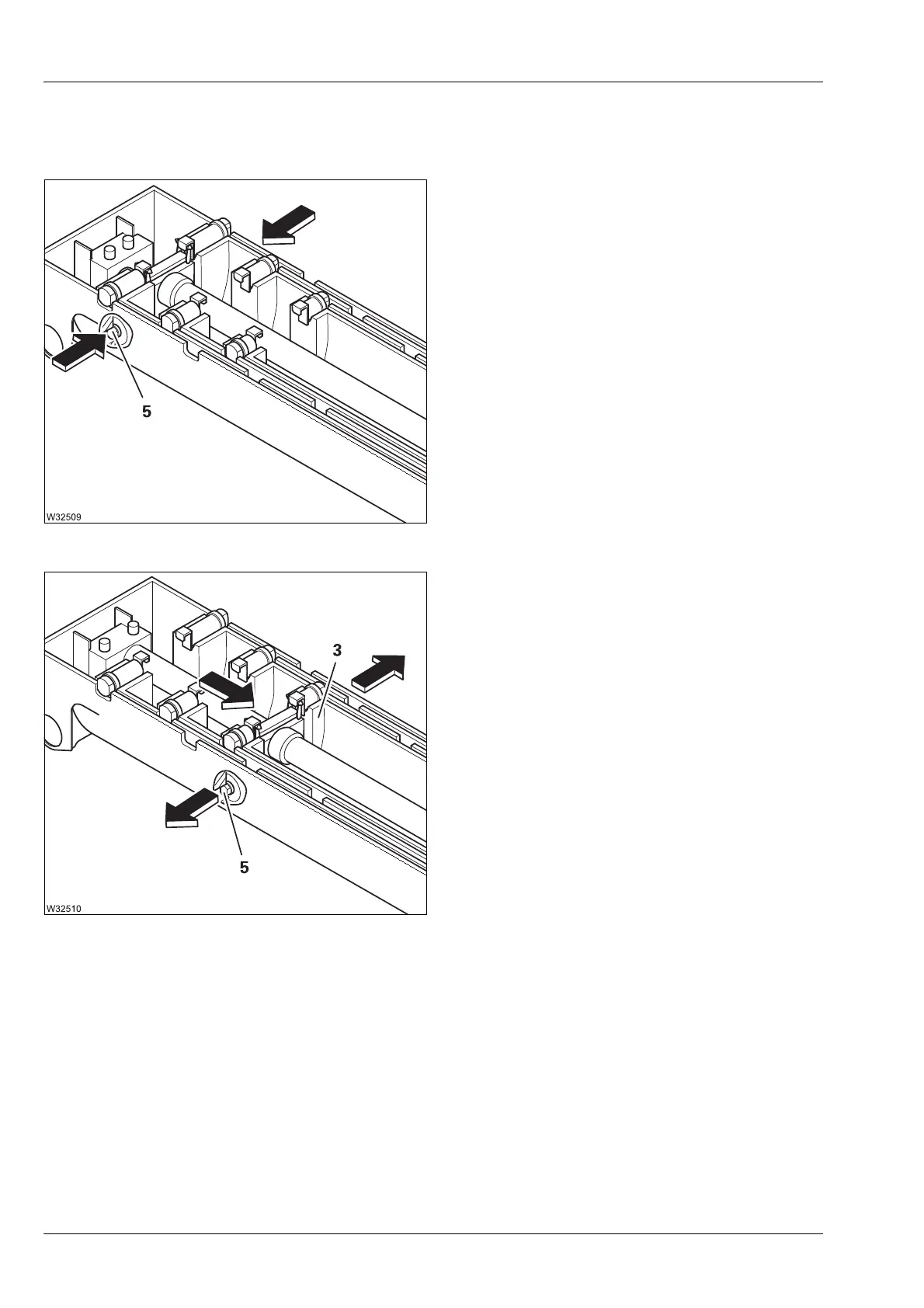

This state should be the starting point for a telescoping process. A telescop-
ing processes consist of 4 steps:
1. Unlocking the telescoping cylinder
The locking pins (5) retract – the telescoping
cylinder is unlocked.
2. Moving and locking the telescoping cylinder
The telescoping cylinder moves into the sec-
tion to be telescoped, for example, telescopic
section
III (3).
The locking pins (5) extend – the telescoping
cylinder is locked.
