Manitowoc Grove GMK4100L-1 User Manual

Crane operation
11.7 Working range limiter
11 - 138 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

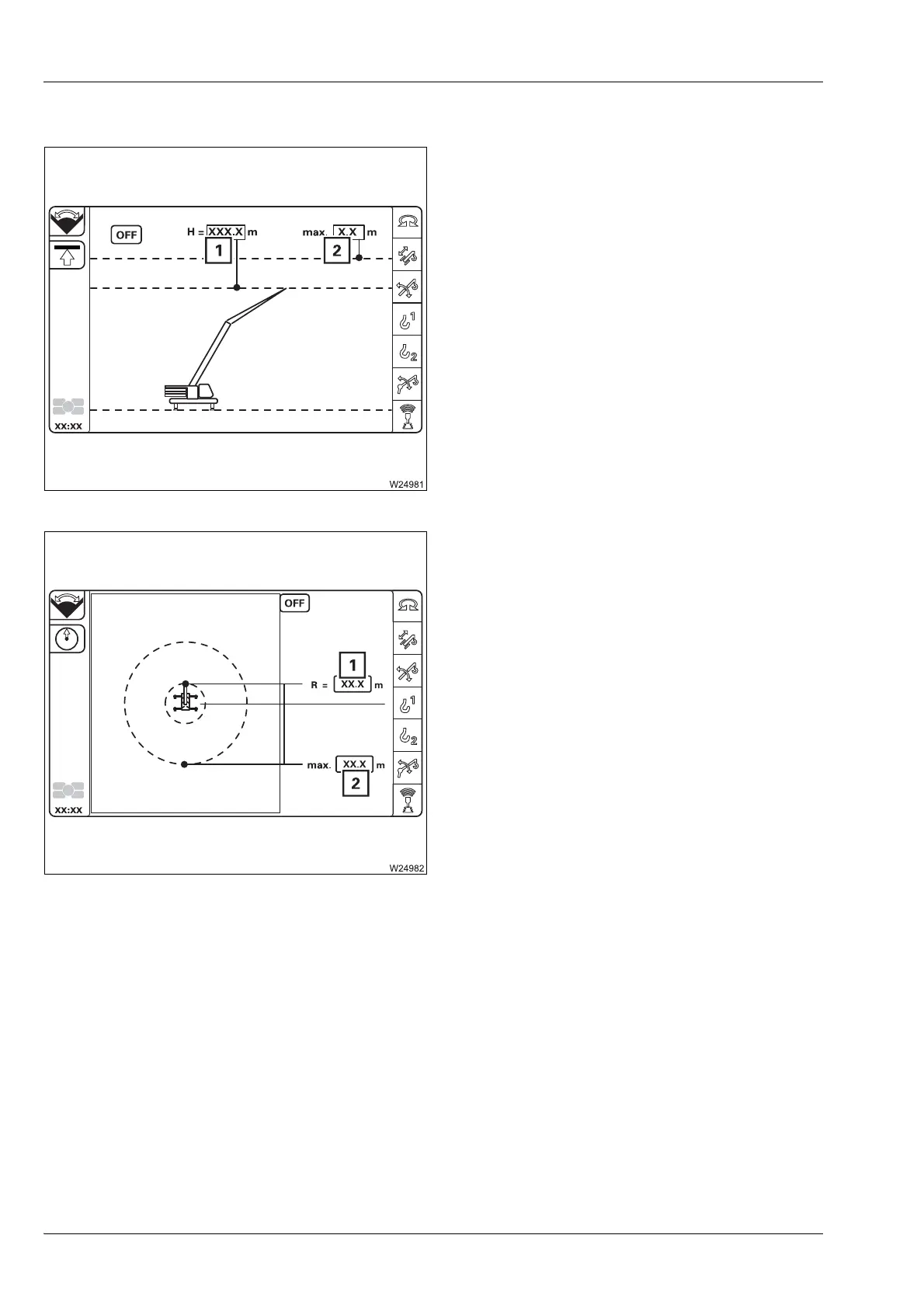

The working range limiter values are displayed graphically and numerically.
Limit values/current values for height
The symbols show values for:
Limit values/current values for working radius
The symbols show values for
1 Current overall height
2 permissible overall height
1 current working radius
2 permissible working radius
