Manitowoc Grove GMK4100L-1 User Manual

Rigging work
12.7 Outriggers – Overview – MAXbase slewing range type
Operating manual 3 302 690 en 12 - 37
GMK4100L-1
23.11.2017

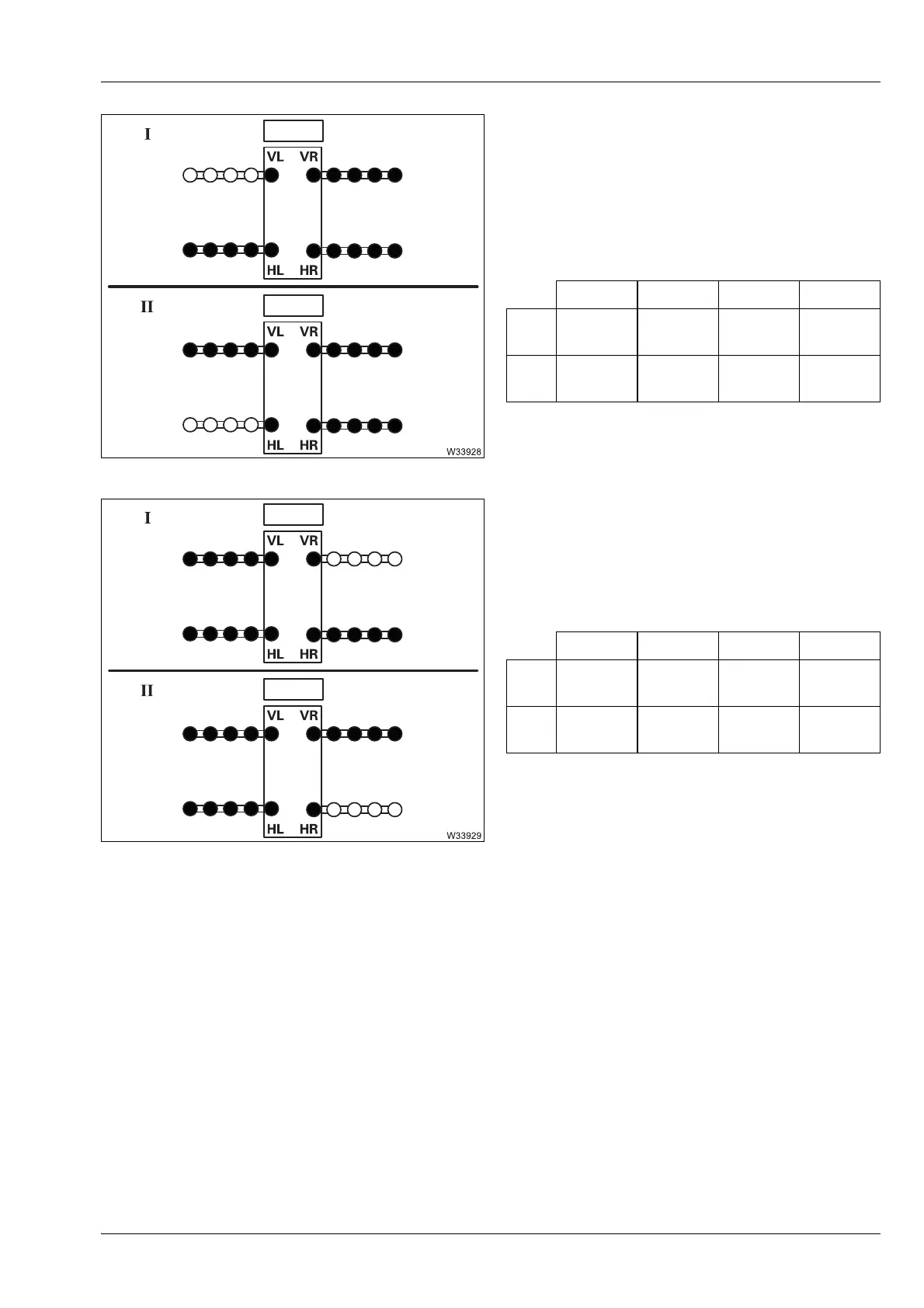

Three / One
– One outrigger beam retracted – left
Three outrigger beams are extended the same
distance and one outrigger beam at the left
side is retracted. The table shows the released
combinations.
– One outrigger beam retracted – right
Three outrigger beams are extended the same
distance and one outrigger beam at the right
side is retracted. The table shows the released
combinations.
There are no separate lifting capacity tables
for this type. The lifting capacities for the
One
outrigger beam retracted – left
type are enabled in
a correspondingly mirrored slewing range;
à Lifting capacities and slewing ranges for outrig-
ger spans without separate lifting capacity tables
,
p. 11 - 28.
VR VL HR HL
I
3.600 m
(11.8 ft)
1.170 m
(3.8 ft)
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
II
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
1.170 m
(3.8 ft)
VR VL HR HL
I
1.170 m
(3.8 ft)
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
II
3.600 m
(11.8 ft)
3.600 m
(11.8 ft)
1.170 m
(3.8 ft)
3.600 m
(11.8 ft)
