Rigging work
12.8 Outrigger operation
Operating manual 3 302 690 en 12 - 57
GMK4100L-1
23.11.2017

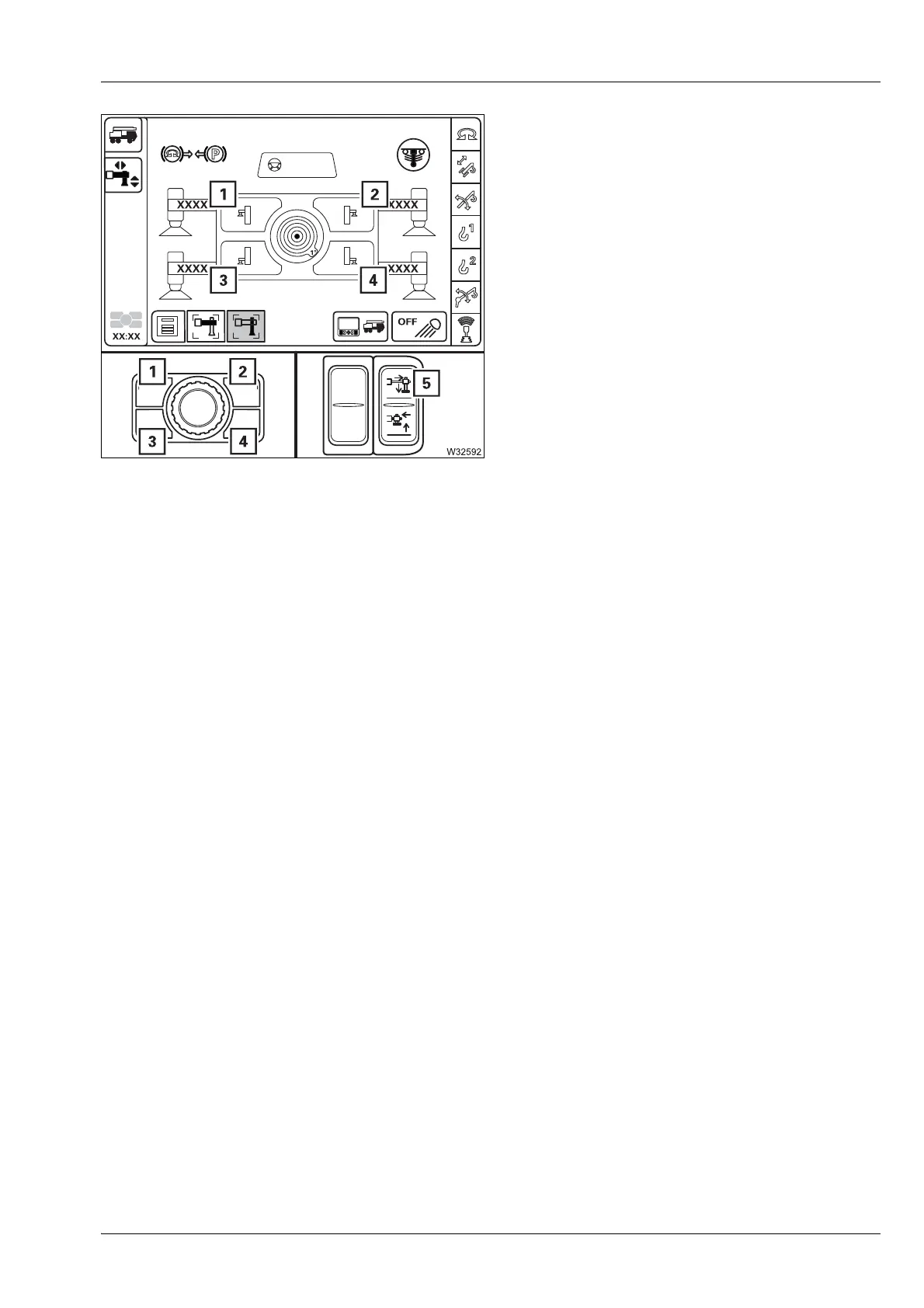

Retracting
• Press the button for the desired outrigger
cylinder.
• Press the button (5) in at the bottom – the
selected supporting cylinder retracts.
1 Front left
2 Front right
3 Rear left
4 Rear right
