Manitowoc Grove GMK4100L-1 User Manual

Rigging work
12.8 Outrigger operation
Operating manual 3 302 690 en 12 - 67
GMK4100L-1
23.11.2017

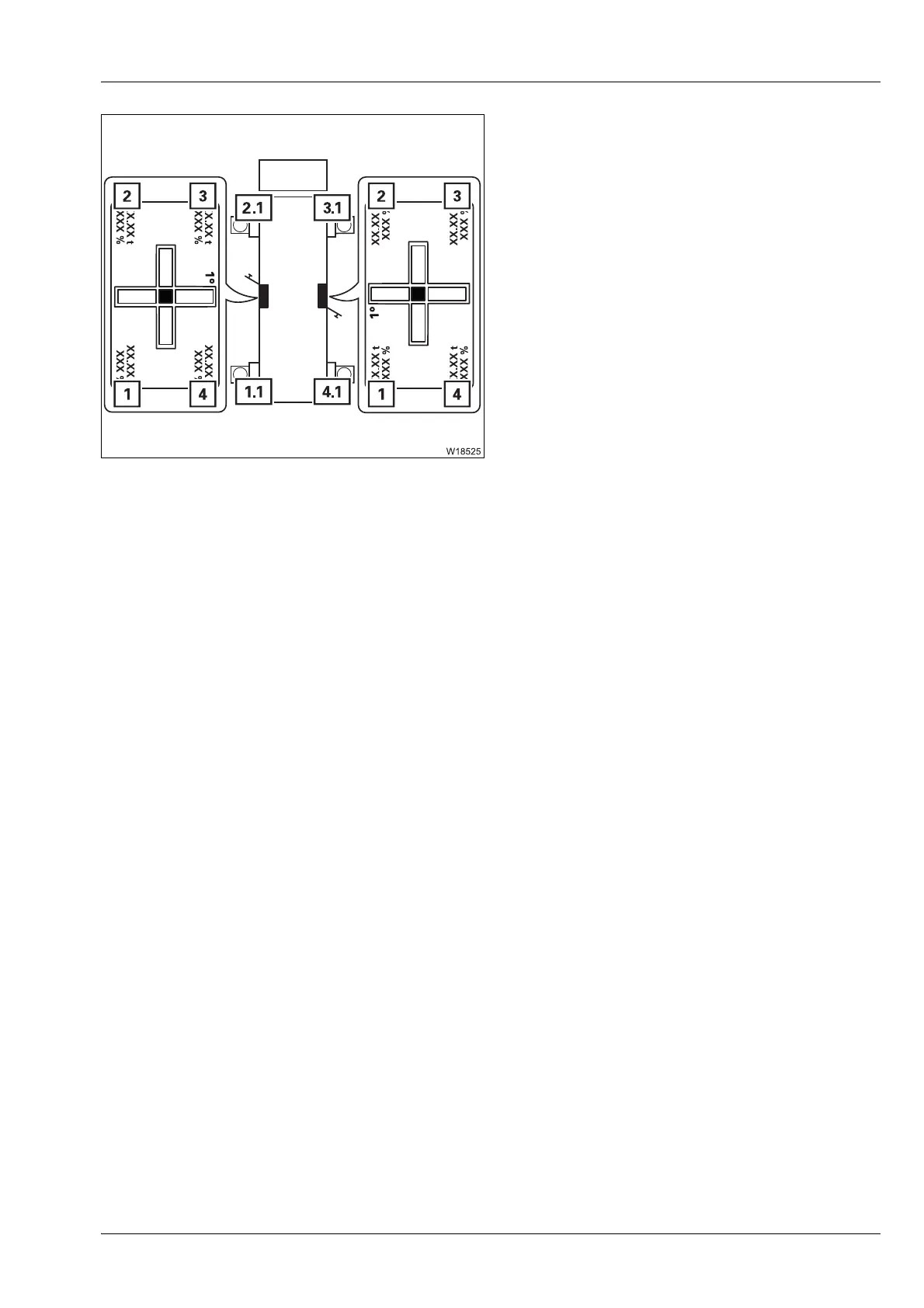

On the outrigger control units
The assignment of the displays to the carrier
corresponds to the top view.
1 Display for the supporting cylinder 1.1
2 Display for the supporting cylinder 2.1
3 Display for the supporting cylinder 3.1
4 Display for the supporting cylinder 4.1
