Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 690 en 12 - 75
GMK4100L-1
23.11.2017
Multiple sections

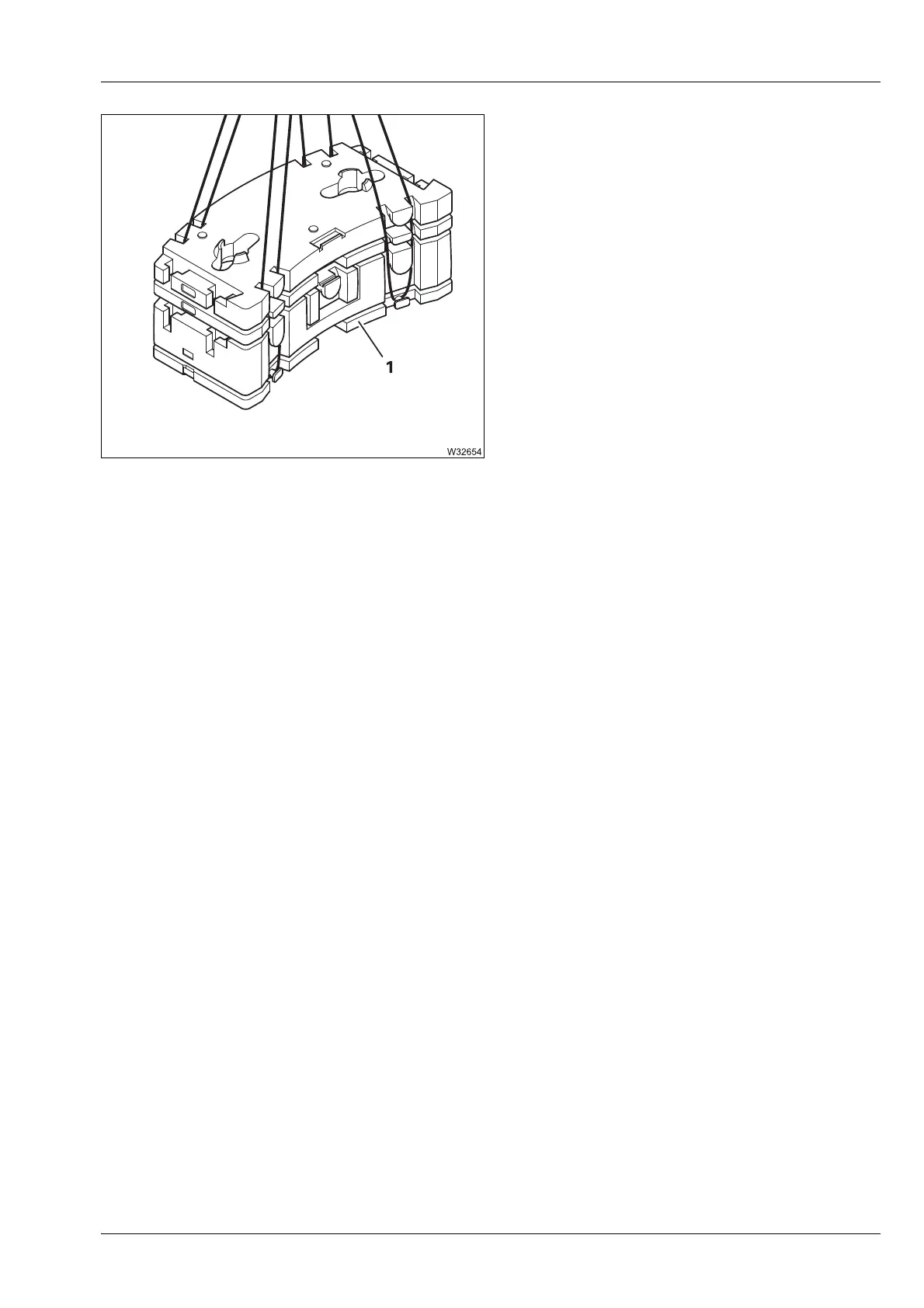

You can lift the assembled counterweight
mass (max. 17 t) as a single item. The 2.1 t
section (1) must be at the bottom.
• Attach the lifting gear as shown in the
diagram.
