Rigging work
12.9 Rigging/unrigging the counterweight
12 - 82 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

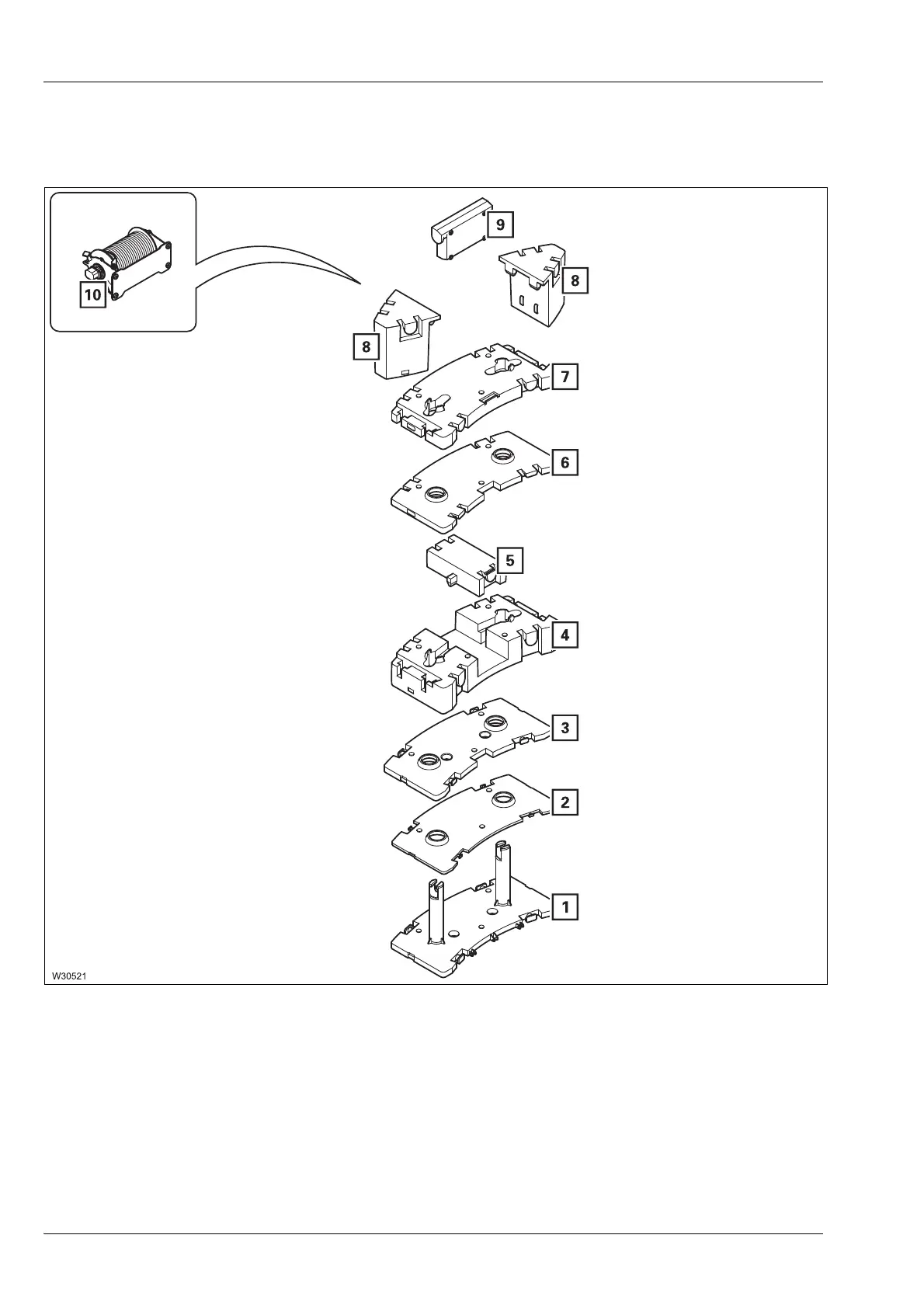

The illustration and the table show all counterweight sections and all
counterweight combinations which can be rigged.
• The table specifies which counterweight sections are needed for the
respective counterweight combination.
• Lift the counterweight sections onto the base plate; à Slinging points on
the counterweight sections
, p. 12 - 74.
