Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 690 en 12 - 119
GMK4100L-1
23.11.2017
Hook tackle
With 7 head
sheaves
The 7th head sheave of the auxiliary single-sheave boom top
1)
is used for
this version.

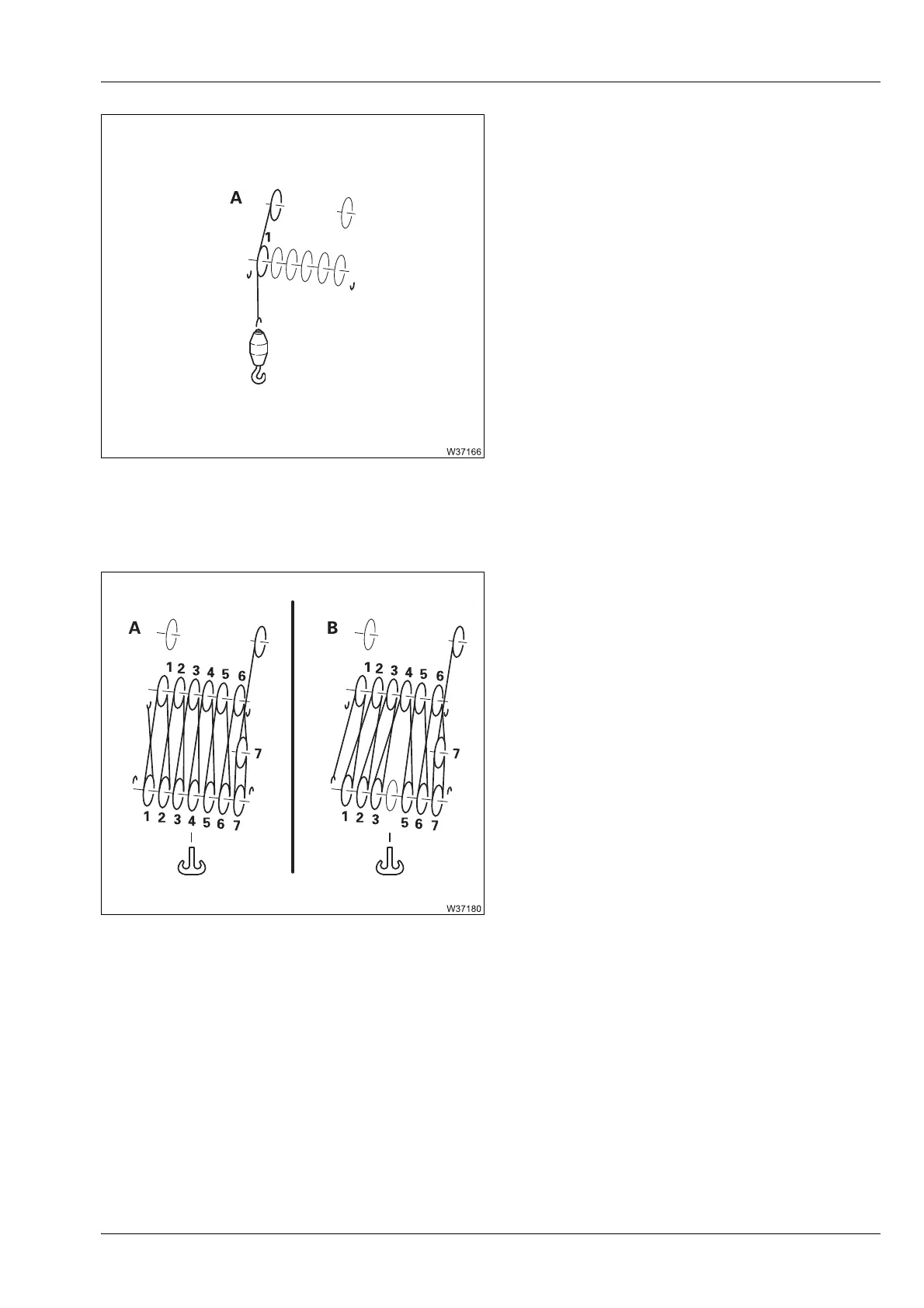

7-sheave hook block
Reeving
A 3-fall
Reeving
A 14-falls
2)
B 13-fall
1)
Additional equipment;
à Lattice extension operating manual
2)
Only with special equipment; à p. 1 - 7
