Manitowoc Grove GMK4100L-1

Rigging work
12.11 Other rigging work
12 - 134 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

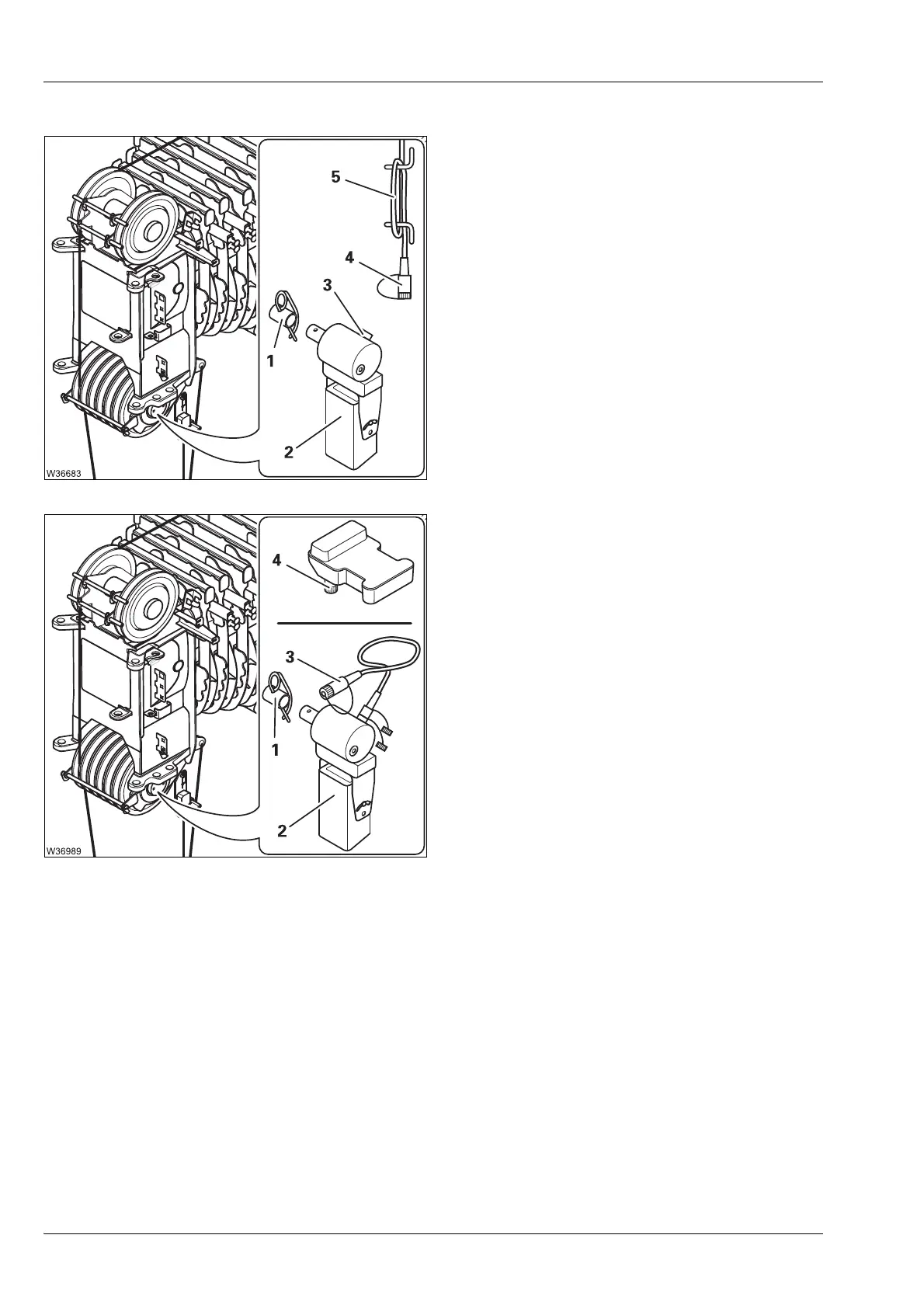

Removing
– Only the camera
• Withdraw the plug (4) from the socket (3)
and close it with the cap.
• Remove the camera (2) from the clamp (1)
and put the retaining pin in the holder (1).
• Wind the cable (5) on to the clamp.
– The camera and the connecting cable
• Withdraw the plug (3) from the socket (4)
and close it with the cap.
• Remove the camera (2) from the clamp (1)
and put the retaining pin in the holder (1).
• Wind the cable (5) on to the clamp.
