NOTICE
Slave – master device names
A unique device name must be assigned out of the master. This name is given highest
priority when establishing the communication.
When replacing devices or servicing, please note:
Apart from the IP address, the device name must correspond to the one of the
replacement device. Explicit assignment out of the master is required.

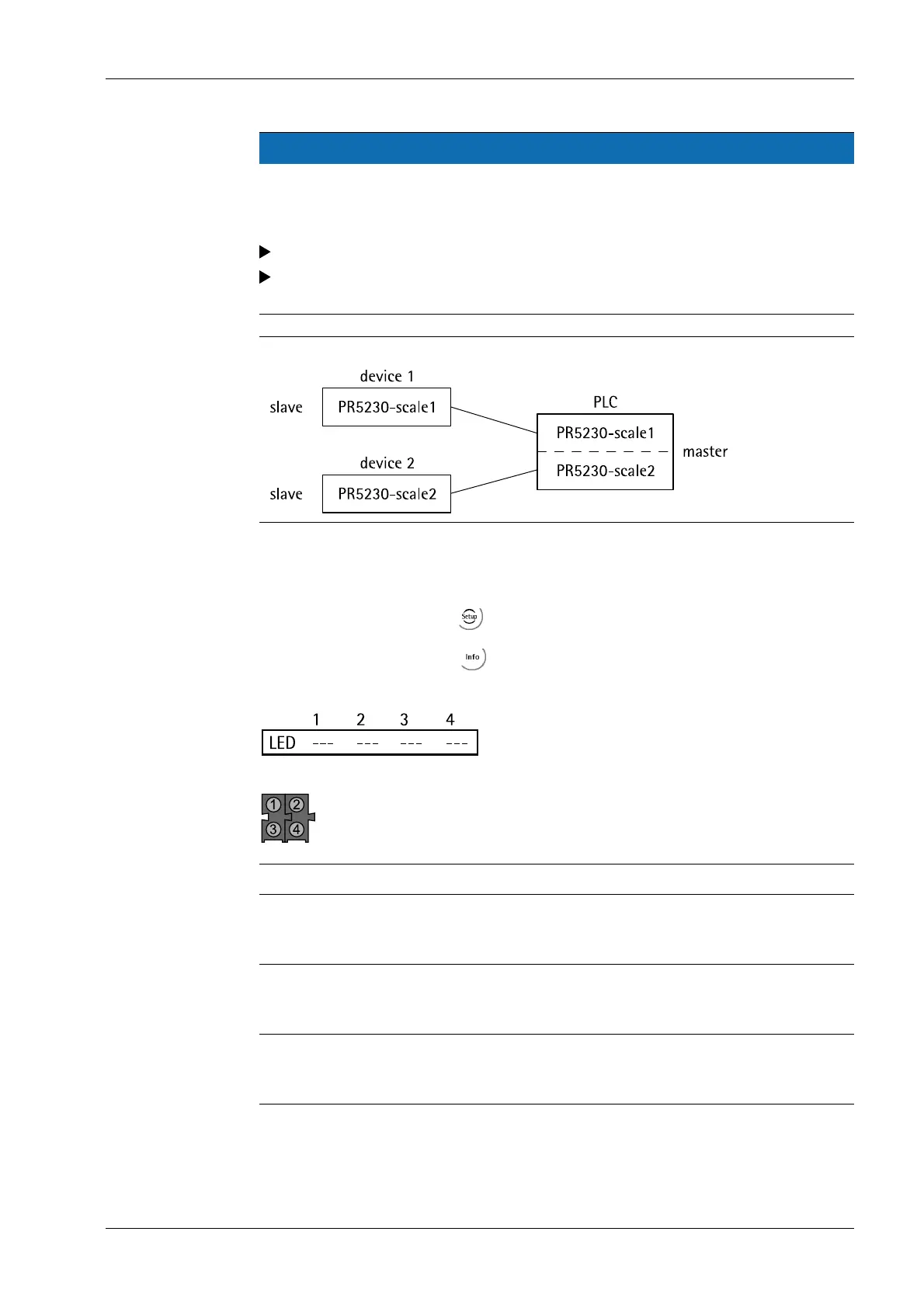

Example:
4.6.9.1 Status indicator
Requirements:
- The items are dened via - [Display items]- [Fieldbus LEDs]; see Chapter 7.15.7.
- PR 1721/46 is selected via - [HW-Slots]- [Slot 2].
Display:
LEDs in device:

1 2 3 4
Constant ---:
No link or no power
Constant ---:
"Oine," no connec-
tion
Constant ---:
No function
Constant ---:
No power or not ini-
tialized.
Constant grn:
Link detected.
Constant grn:
Link detected; online
and connected.
Constant grn:
Initialized, no error.
Flashing 1 Hz grn:
Send/receive data.
Flashing 1 Hz grn:
"Online, not connec-
ted."
Flashing 1 Hz grn:
Diagnostics data can
be accessed.
4 Device installation Transmitter in eld housing PR 5230
