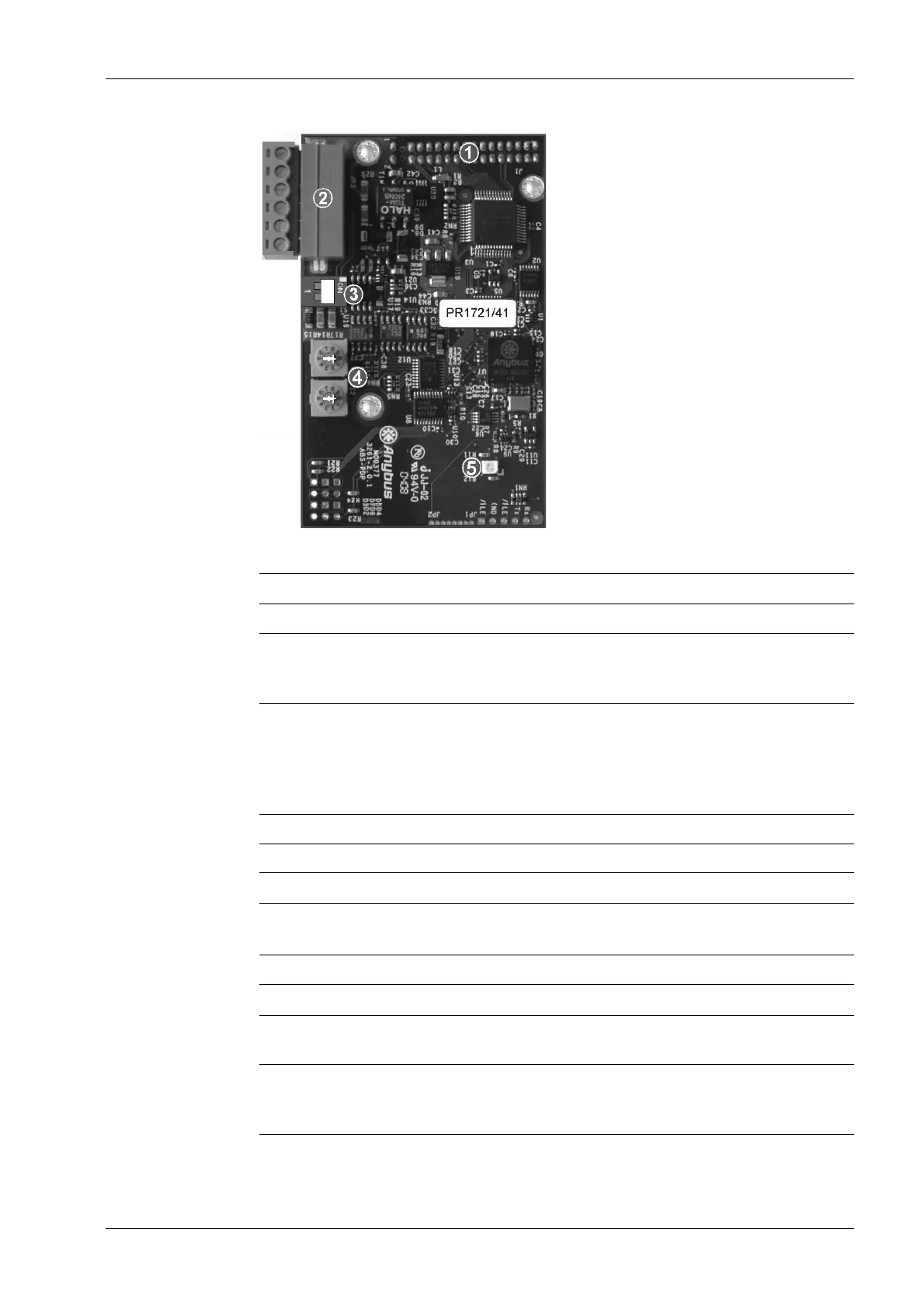

Specications
Description Data
Transmission rate
9.6 kbit/s12 Mbit/s, Auto Baudrate detection
Connection mode ProBus network,
connections can be made/released without aecting other
stations
Protocol PROFIBUS-DP-V0 SLAVE to IEC 61158
- Mono or multi-master systems are supported.
- Master and slave devices, max. 126 nodes possible.
- Watch-Dog Timer  (see Chapter 4.6.4)
Conguration GSD le "SART5230.gsd"
Potential isolation Yes, optocoupler in lines A and B (RS-485)
Bus termination
Via bus terminating resistor switch  (see Chapter 4.6.5.3)
Addressing Via software
Switch  must be set to position 0!
Cable type Special ProBus color: violet; screened twisted pair cable
Cable impedance
150 Ω
Cable length The max. distance of 200 m can be extended at 1.5 Mbit/s by
means of an additional repeater.
Certicates Probus test center Comdec in Germany and PNO (Probus
User Organization).
Industry-compatible CE, UL and cUL
