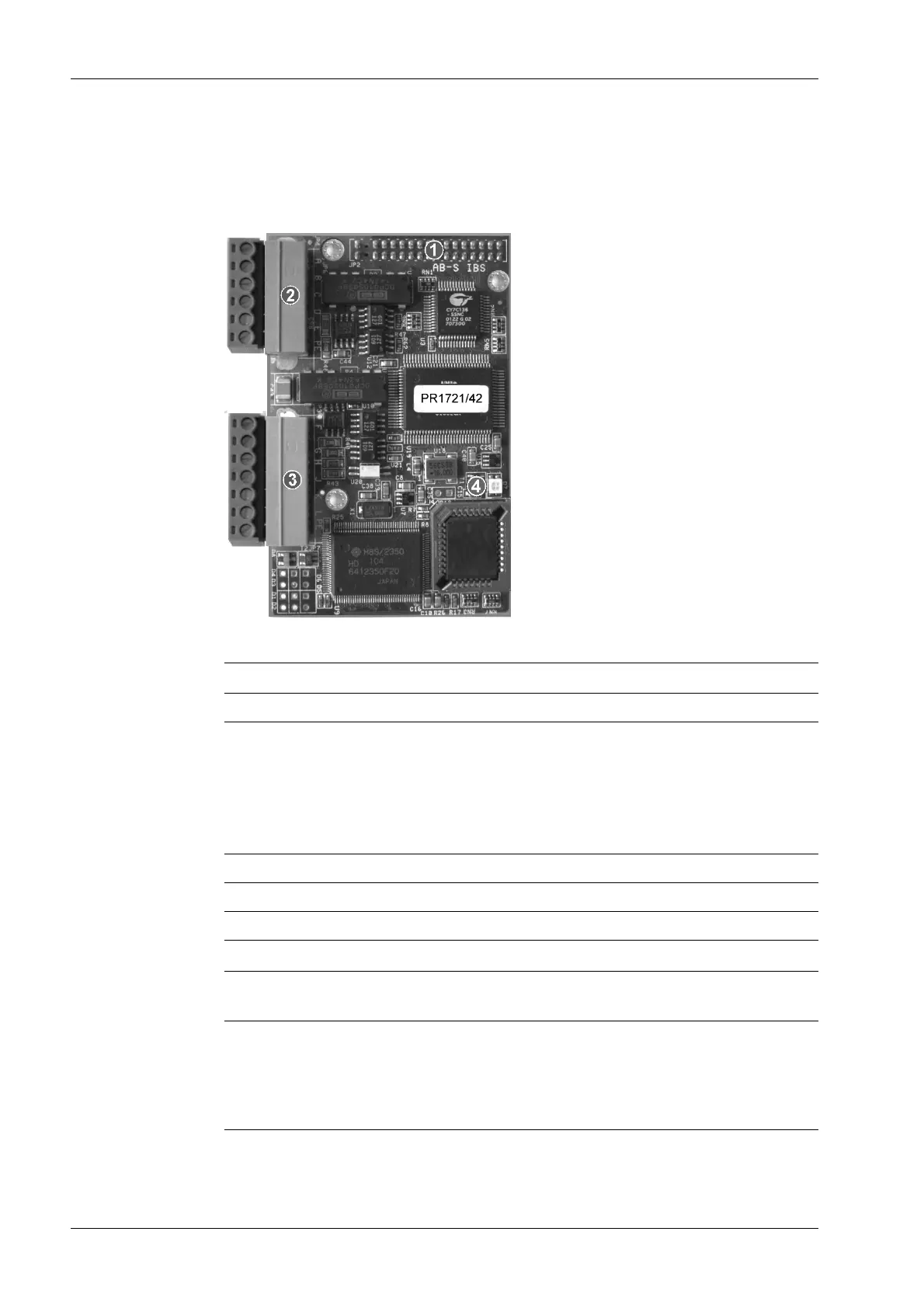

The interface is based on the InterBus chip technology and enables transfer rates of
500 kbit/s.
The InterBus-S connection is established by the 6-pin (IN)  and 7-pin (OUT)  terminal.
The card is inserted into "Slot 2"  (see Chapter 4.6.1).
Specications
Description Data
Transmission rate 500 kbit/s
Protocol Interbus-S master–slave
- Fixed telegram length
- Deterministic cyclical process data transmission with
max. 10 words I/O.
- Watch-Dog Timer  (see Chapter 4.6.4)
Potential isolation Yes, optocoupler and DC/DC converter
Lead termination Not required, due to active ring topology
Cable type InterBus; color: green; 3x2 twisted pair; screened
Cable impedance
150 Ω
Cable length 400 m (between two remote bus subscribers); overall length:
13 km
Certicates From INTERBUS CLUB e.V.:
- Compatibility with InterBus standard.
- IEC 61158 (Parts 3 to 6), EN 50254 (DIN 19258)
- Industry-compatible CE, UL and cUL
