Description Data
Certicates - Compatible with DeviceNet specication Vol. 1: 2.0, Vol 2:
2.0
- ODVA Certicate according to conformity test software
version A-12
- Industry-compatible CE, UL and cUL
Note:
The EDS le is stored on the CD supplied with the device (eldbus directory of the
respective device). The current le is also available for download via the Internet.
http://www.minebea-intec.com

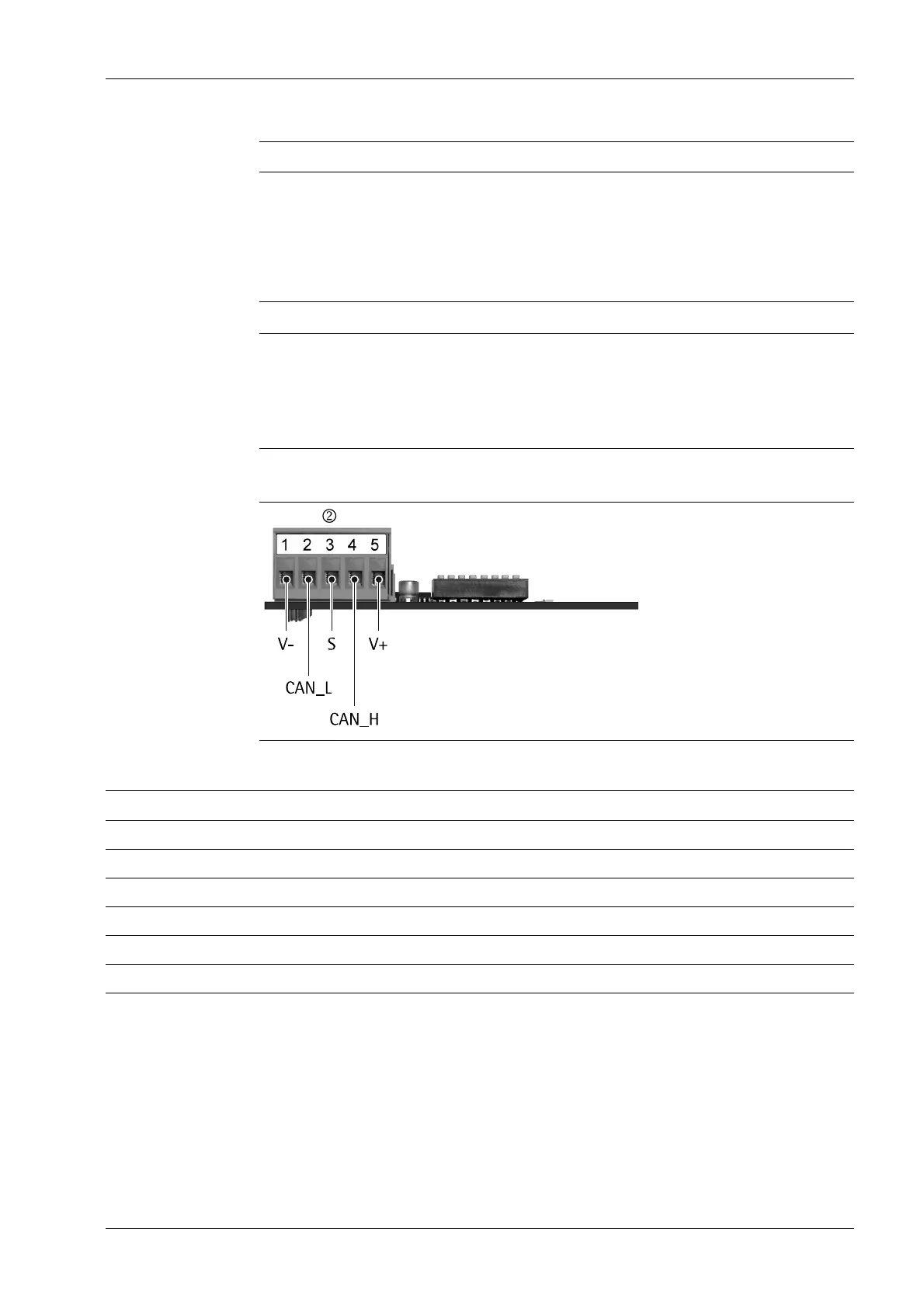

DeviceNet terminal
Allocation of the 5-pole terminal block
Pin Assignment Signal Color Description
Cable sheath Special DeviceNet cable (certied)
1 -------------------- V– black Negative power supply
2 -------------------- CAN_L blue CAN_L bus signal
3 ------------ S Cable screen
4 -------------------- CAN_H white CAN_H bus signal
5 -------------------- V+ red Positive power supply
