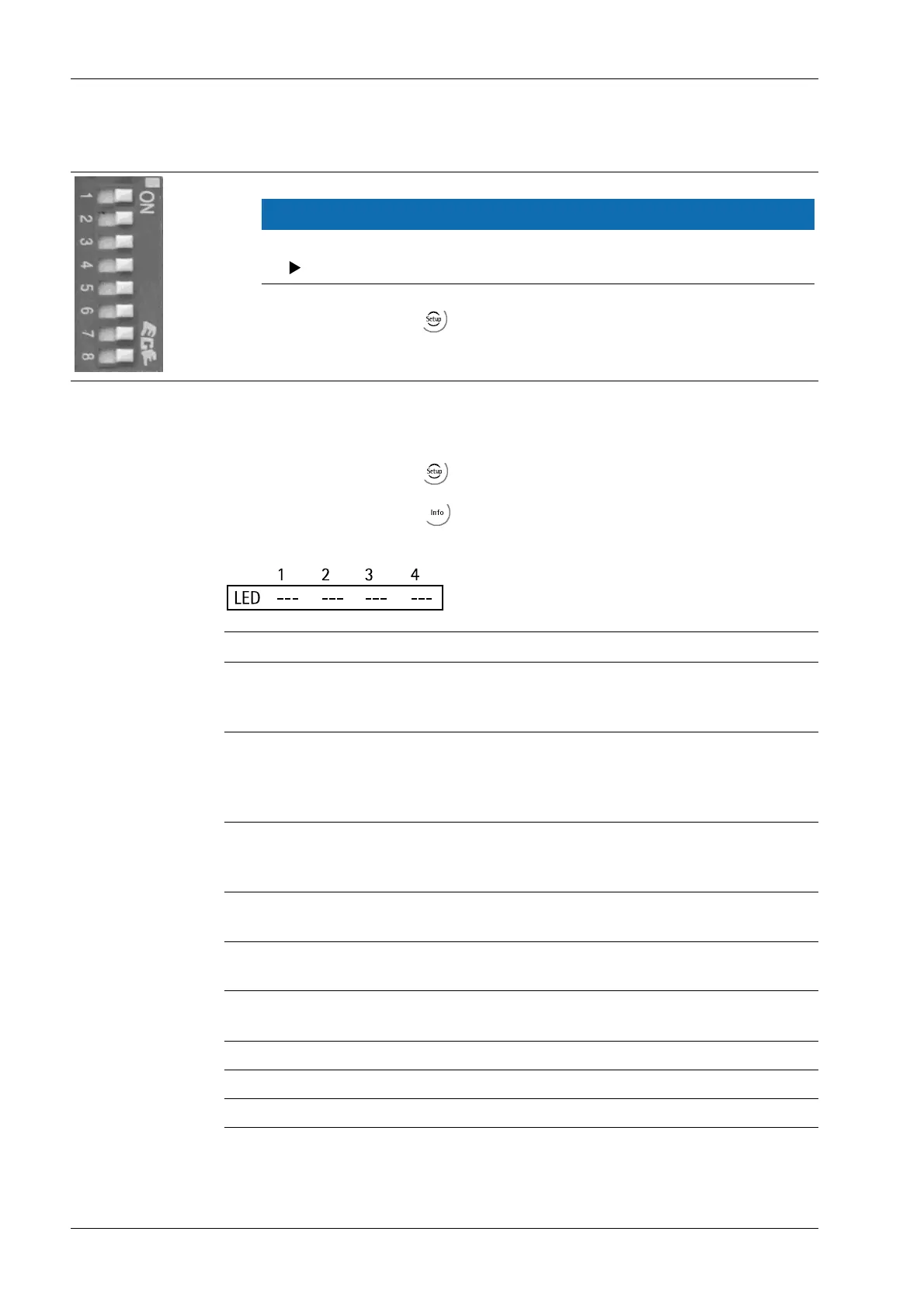

4.6.7.1 Controls on eldbus card

NOTICE
The  DIL switch settings will not be used.
Make sure that the switches 18 are set to position "ON."
Settings are dened via - [Fieldbus parameter].
4.6.7.2 Status indicator
Requirements:
- The items are dened via - [Display items]- [Fieldbus LEDs]; see Chapter 7.15.7.
- PR 1721/44 is selected via - [HW-Slots]- [Slot 2].
Display:
1 2 3 4
Constant ---:
No function
Constant ---:
Not powered, not
online.
Constant ---:
No function
Constant ---:
No power
Constant grn:
Link detected. Field-
bus is online and
connected.
Constant grn:
Module is working.
Flashing grn:
Online, not connec-
ted.
Flashing grn:
Data size > congu-
ration
Constant red:
Critical link error
Constant red:
Fatal error
Flashing red:
Connection timeout
Flashing red:
Minor error
Legend
--- o
red red
grn green
