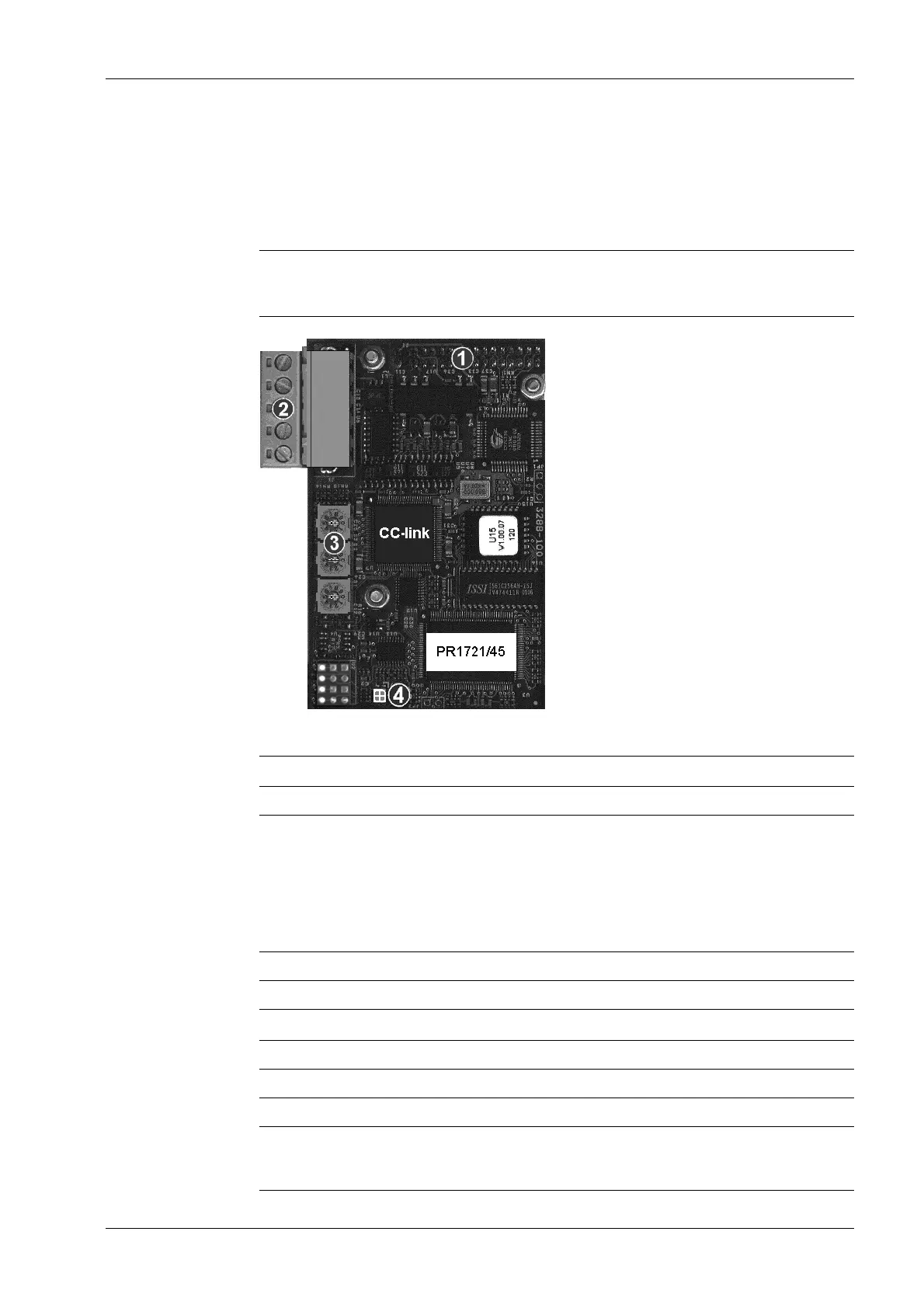

The eldbus card contains all functions to provide a complete CC-Link slave with transfer
rates up to 10 Mbps.
The CC-Link connection is established by the 5-pin terminal .
The card is inserted into "Slot 2"  (see Chapter 4.6.1).
Note:
This eldbus card does not support the "EasyFill" application.
Technical data
Designation Data
Transfer rate 156; 625 kbps; 2.5; 5, 10 Mbps
Protocol CC-Link slave
- CRC error recognition according to IEC 62026 (EN 50325)
- Max. 64 station nodes
- 128 I/O bits and 16 (32 bit) words
- Watchdog Timer  (see Chapter 4.6.4)
Conguration CSP le "PR1721_1.csp"
Potential isolation Yes, optocoupler and DC/DC converter
Bus termination
110 Ω at the cable ends
Bus load 100 mA
Cable type 2x2 screened twisted pair
Cable length 100 m @ 10 Mbps, 1200 m @ 156 kbps
Certicates - Type: ABS-CCL (H/W: 1.01, S/W: 2.00.05, CC-Link: 2.0)
- Reference no. 372
