Chapter 5 Web-Based Operations
104 Lynx II DSA User's Manual - 7096089
WARNING:
Please note that when HVPS Inhibit is Disabled (cleared), the
Inhibit Signal on the rear panel’s HV INH connector cannot shut
down the HVPS (i.e., in case of detector warm-up) resulting in
possible damage to the detector.
Likewise, if the HVPS Inhibit is Enabled (checked), but the Inhibit
Signal on the rear panel’s HV INH connector is not connected the
HVPS cannot be shut down in case of detector warm-up.
Gain Settings
Activates the settings dialog for the Gain parameters consisting of common parameters
associated with the preamplifier and amplifier. These include gains, signal attenuation,
preamplifier types, and energy window (LLD/ULD).
General
The General tab displays settings that are common to both Inputs 1 and 2.

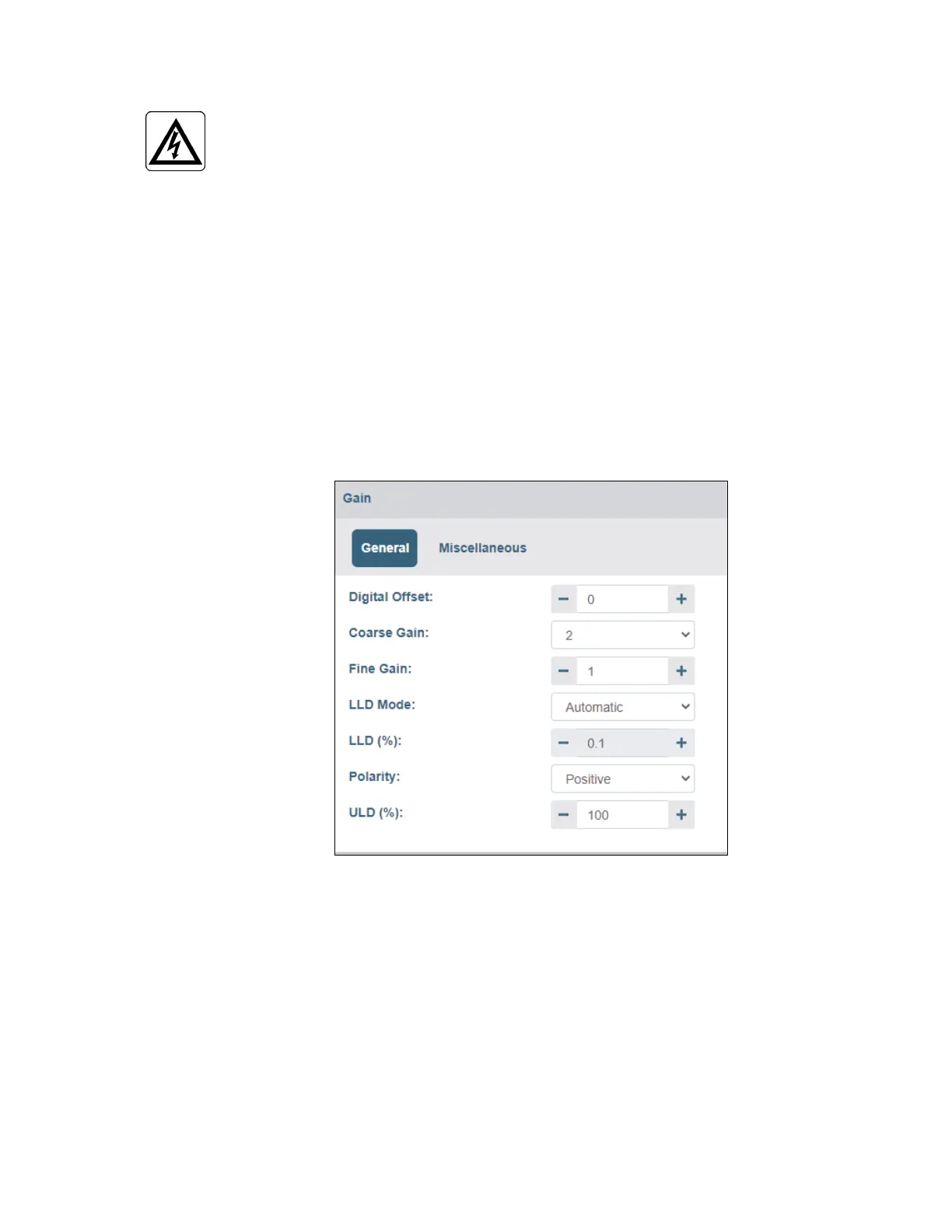

Figure 52: General Gain Hardware Settings
Digital Offset
Specifies the digital offset value in the number of channels that are applied during
acquisition to each event that is processed and stored by Input #1. Applies to PHA, MSS,
DLFC, LIST, and TLIST. Value is a signed quantity ranging from -32768 to +32767. This
range cannot exceed the current Input Size setting.
To Next Page
