Setting Up a USB Connection
Lynx II DSA User's Manual – 7096089 163

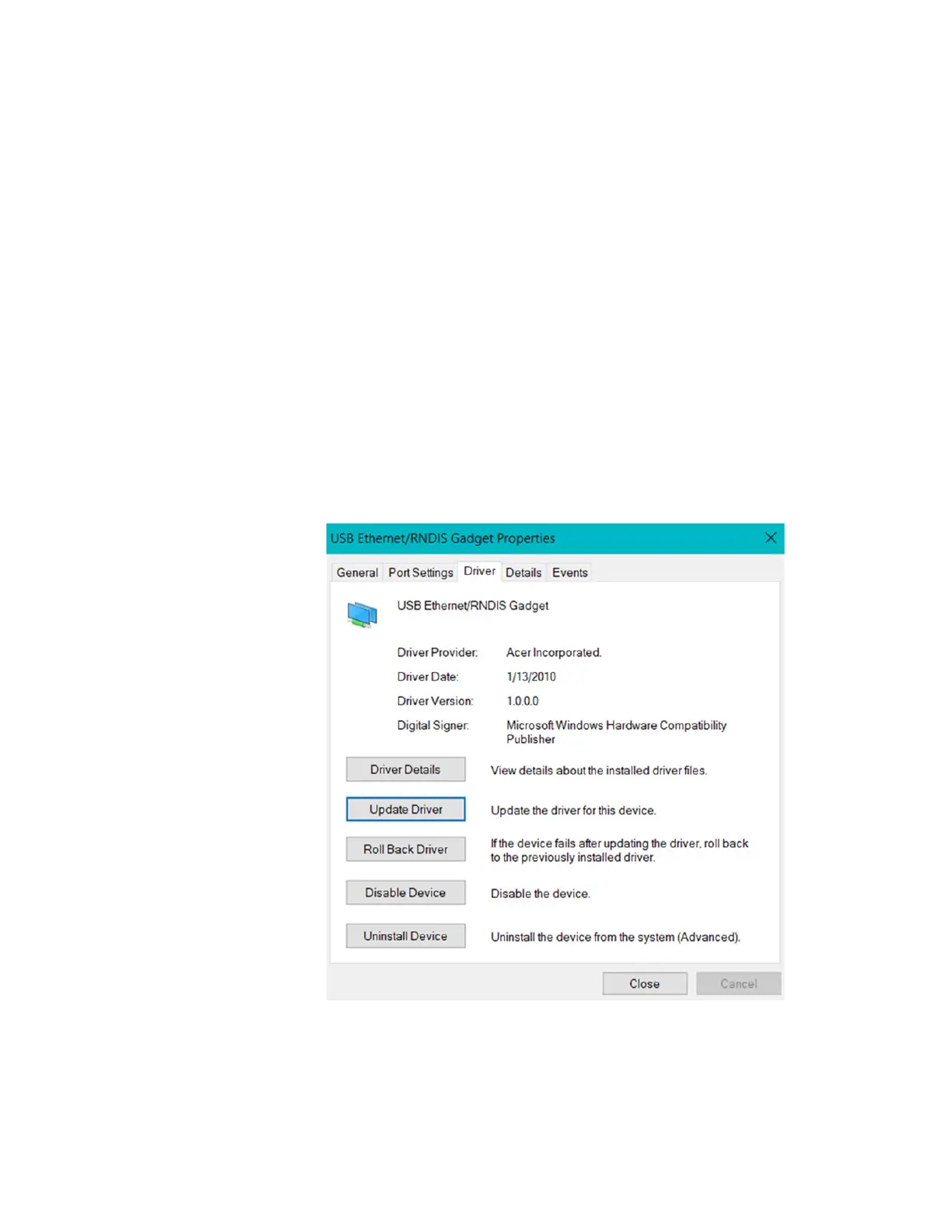

e. Click on the Update Driver button
f. Select: Browse My Computer for Drivers.
g. Select: Let me pick from a list of available drivers on my computer.
h. Select: Have Disk…
i. Browse to the LYNX II USB Driver folder noted above and select the
RNDIS.inf file. Click OK.
j. Select USB Ethernet/RNDIS Gadget that will show under Model.
k. Select Next, this will install the driver and the USB connection will show under
Network Adapters.
l. Select Close.
4. The new properties will now be shown in the Driver tab. Click Close.
5. The USB Ethernet/RNDIS Gadget device will now appear under Network
Adapters. The USB Serial device will no longer appear under Ports (COM & LPT)
6. The Lynx II can be connected via USB at the default address of 10.0.1.4.
