Chapter 4 System Setup
46 Lynx II DSA User's Manual - 7096089
Stabilizer Parameters
The stabilization algorithm used by the Spectrum Stabilizer is described in the Stabilizer
section under Hardware Options (see Stabilizer on page 46). Genie’s Stabilizer settings
screen for the Lynx II contains the following controls.

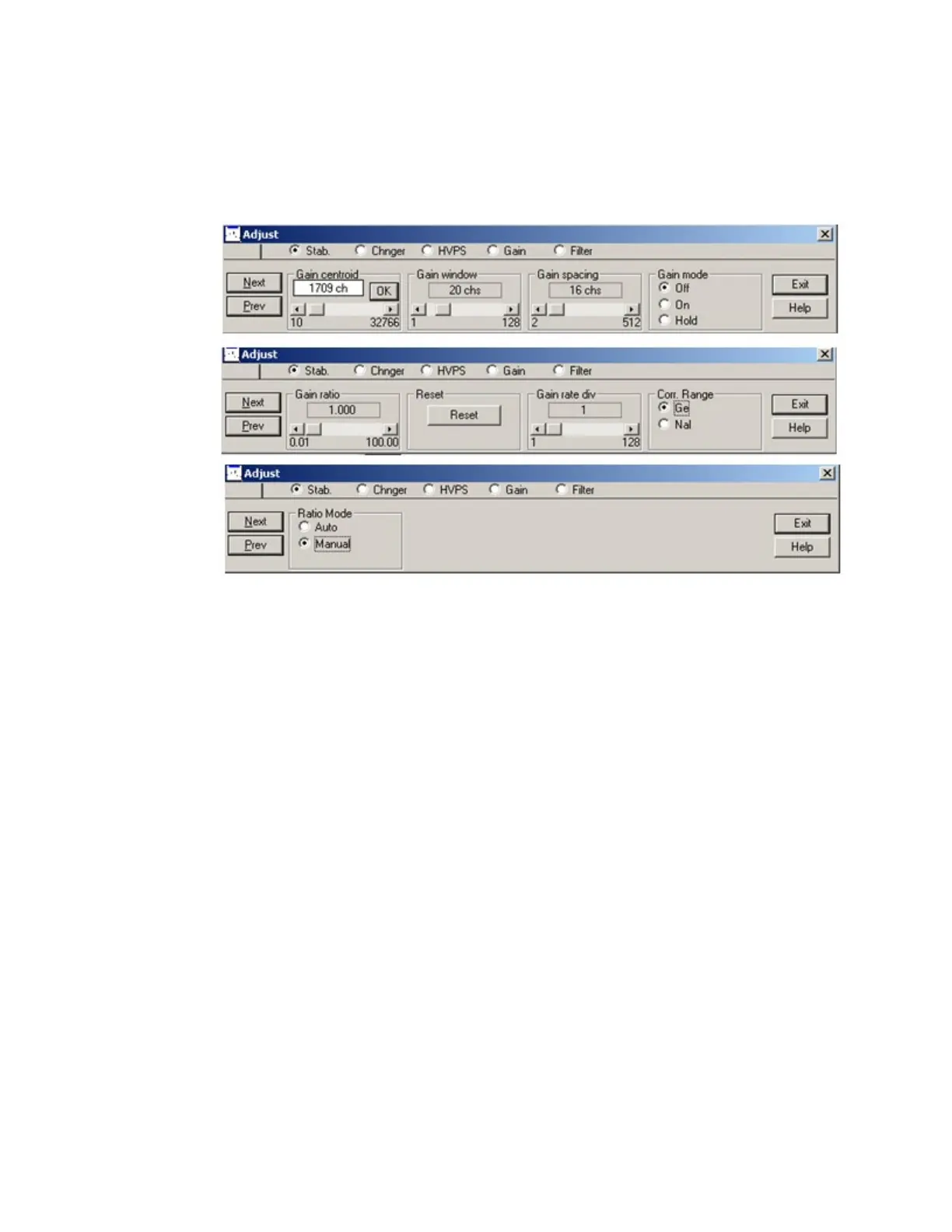

Figure 22 Adjust Screen’s Stabilizer Settings
Gain Centroid
The Centroid parameter sets the centroid (in channels) of the reference peak at the high
end of the spectrum that will be used for gain stabilization. The centroid channel becomes
the focal point for the stabilization algorithm.
Gain Window
This adjustment sets the width (in channels) of the upper and lower sampling windows on
either side of the gain reference peak. For best results, the windows should be placed so
that a shift in the reference peak reflects a significant change in the count rate through the
windows.
Gain Spacing
Sets the spacing (in channels) between the upper and lower sampling windows. For broad
peaks, the spacing should be set so that the windows’ edges are not on the flat part of the
peak.
Gain Mode
Sets the Gain Stabilization mode to Off, On, or Hold.
• Off disables spectrum stabilization and sets the correction adjustment to the system
gain back to zero.
