14.7 I/O Check
14.7.1 I/O check function
9
UTILITY FUNCTION
10
COMMUNICATION INTERFACE SETTING
11
DISPLAY AND OPERATION SETTINGS
12
CLOCK SETTINGS AND BATTERY STATUS DISPLAY
13
FILE DISPLAY AND COPY
14
GOT SELF CHECK
15
CLEANING OF DISPLAY SECTION
16
INSTALLATION OF BOOTOS AND STANDARD MONITOR OS
14.7 I/O Check
14.7.1 I/O check function
The I/O check is a function which checks whether GOT and PLC can communicate with each other.
If I/O check ends normally, the communication interface and the connection cable hardwares are normal.
To execute I/O check, the PLC communication driver has to be installed in GOT in advance from GT
Designer2.
Refer to the following for the details related to the installation of the PLC communication driver.
GT Designer2 Version Basic Operation/Data Transfer Manual
Chapter 8 TRANSFERRING DATA
I/O check function
Controllers except MITSUBISHI PLC cannot be checked with the use of I/O check
function.
When checking the communication between GOT and controller, follow "Preparatory
Procedures for Monitoring" in "GOT 1000 Series Connection Manual".
GOT 1000 Series Connection Manual.

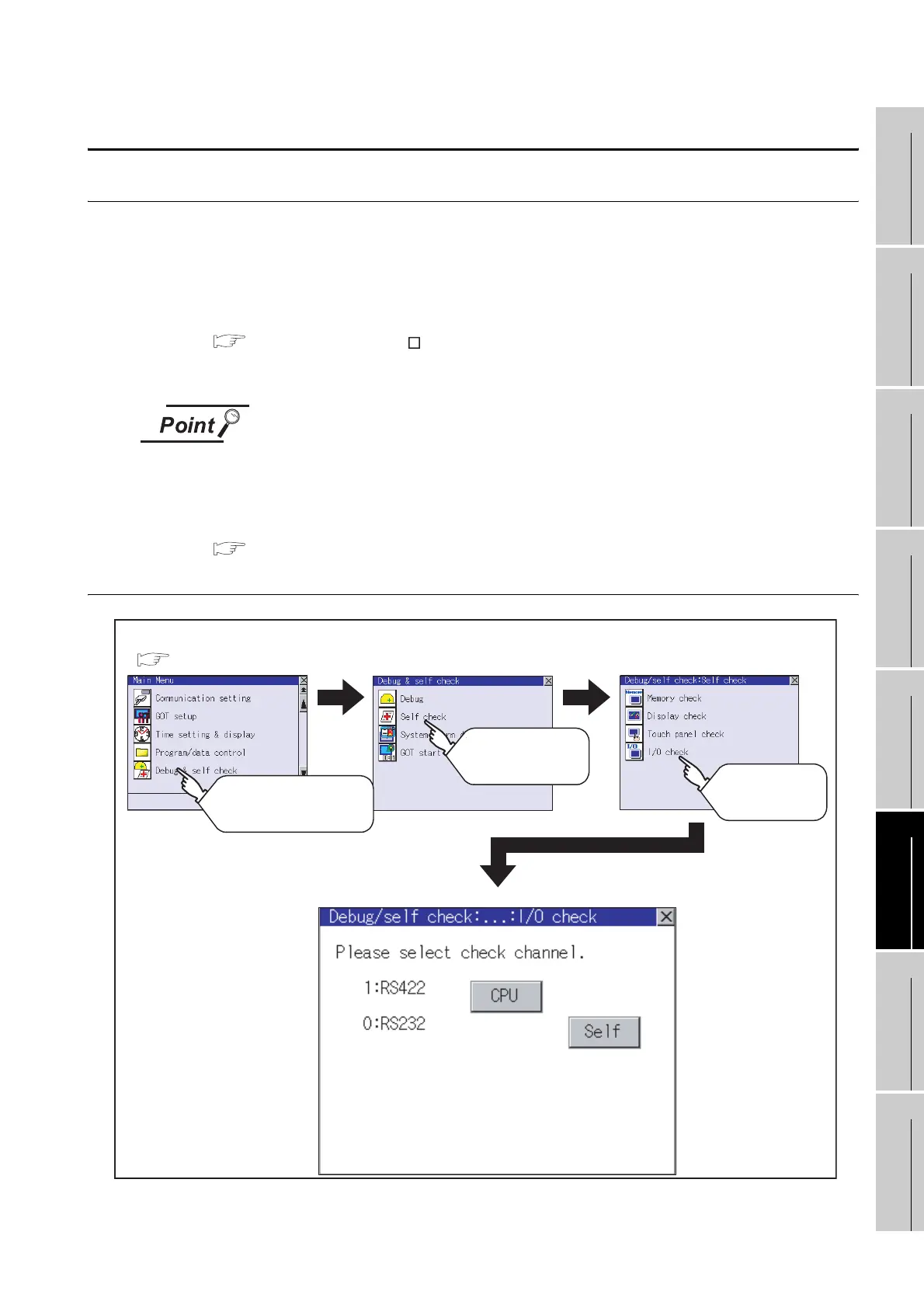

14.7.2 Display operation of I/O check
I/O check
Touch [Self check].
Touch [Debug & self check].
Touch [I/O check].
Debug & self check Self check
Main menu
( Section 9.3 Utility Display)
GT1155-QSBD ,GT1150-QLBD
