4 - 1

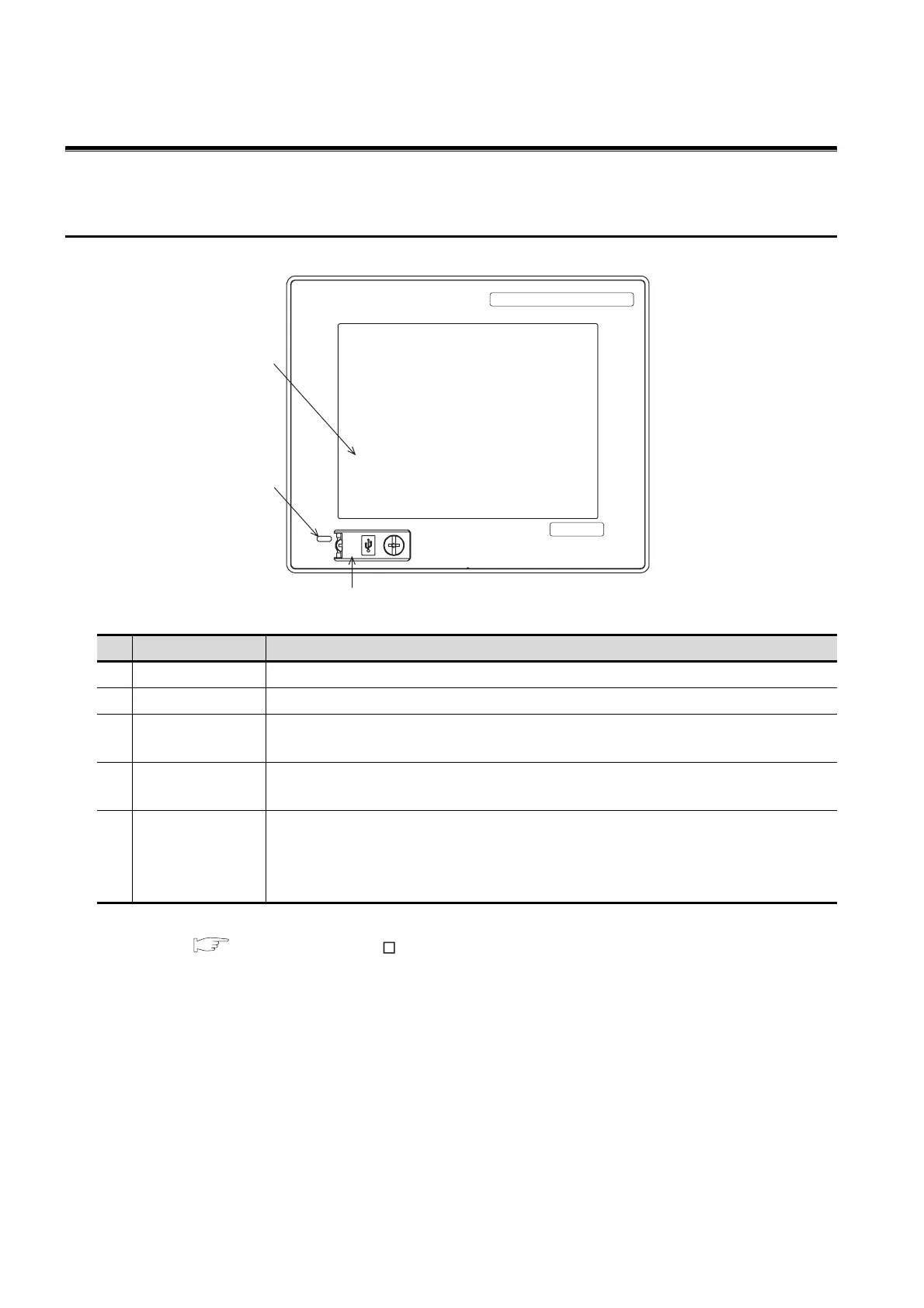

4.1 Front Panel
4. PART NAME
4.1 Front Panel
For the PC connection, refer to the following.
GT Designer2 Version Basic Operation/Data Transfer Manual
Section1.5 System Configuration
No Name Specifications
1) Display screen Displays the utility screen and the user creation screen.
2) Touch key For operating the touch switches in the utility screen and the user creation screen
3) USB interface
USB interface for connecting a personal computer
(OS installation, project data download, transparent)
4)
USB environmental
protection cover
Opens/Closes when the UBS interface is used.
5) POWER LED
Lit in green : Power is correctly supplied
Lit in orange : Screen saving
Blinking in orange/green : Blown backlight bulb
Not lit : Power is not supplied
1) 2)
3) 4)
5)
GRAPHIC OPERATION TERMINAL
GOT
1000
MITSUBISHI
