9 - 9
9.3 Utility Display
9.3.3 Basic operation of settings change
9
UTILITY FUNCTION
10
COMMUNICATION
INTERFACE
SETTING
11
DISPLAY AND
OPERATION
SETTINGS
12
CLOCK SETTINGS
AND BATTERY
STATUS DISPLAY
13
FILE DISPLAY AND
COPY
14
GOT SELF CHECK
15
CLEANING OF
DISPLAY SECTION
16
INSTALLATION OF
BOOTOS AND
STANDARD MONITOR OS

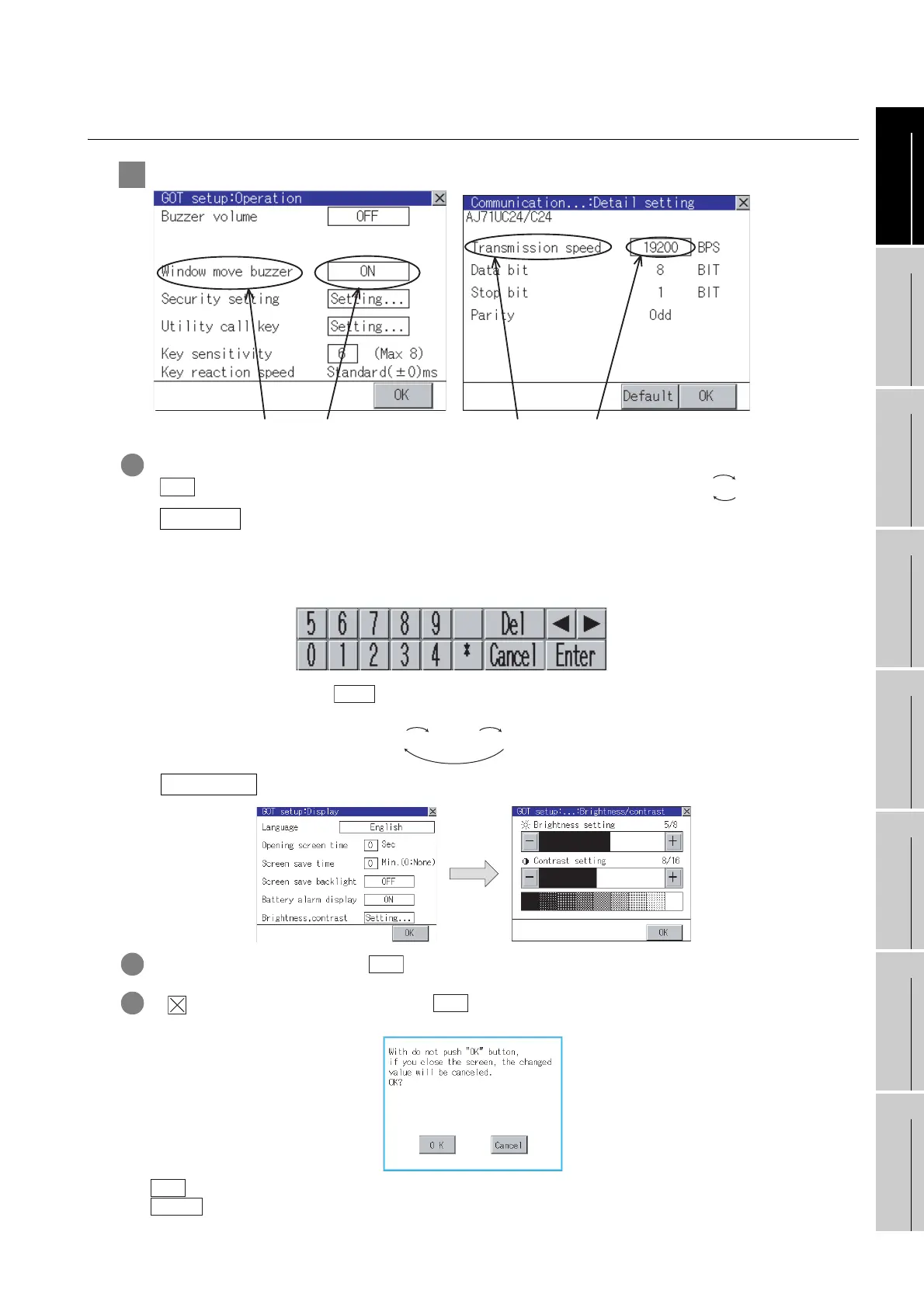

9.3.3 Basic operation of settings change
1 Change of setting value
1 Touch the select button (setting point) on the screen.
• Key: It is a key for selecting the setting value. Repeats with each touch .
• Key: It is a key for inputting the numerical value. It displays the keyboard on the bottom of
the screen when touched.
In the above mentioned screen example, there is no setting item which displays the keyboard. For the
operation of keyboard refer to the next page.
Touching confirms the numerical input.
When the setting range exists it repeats the numerical without displaying keyboard.
• Key: It shifts to the setting screen of each setting item when touched.
2 Setting contents are reflected if button is touched.
3 If button is pressed without touching button, the dialogue below is displayed and the changes
are canceled, then the dialog box is closed.
button: The changed value is canceled, and the screen is closed.
button: The operation setting screen is displayed.
Setting item Select buttonSetting item Select button
OK
ON OFF
Numerical
Enter
4800bps 9600bps 19200bpsExample:
Setting...
OK
OK
OK
Cancel
To Next Page
