6.5 Installation Procedure
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
PART NAME
5
EMC DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION
6.5 Installation Procedure
The GOT is designed to be embedded into a panel.
Mount the GOT by following the procedure below.
For panel cutting dimensions, refer to Section 6.2.
Note that the panel thickness should be within 5mm.
1 Installing the packing
(1) GT1155-QSBD and GT1150-QLBD
Install packing to the packing installation groove on
the back panel of the GOT.
While referring to the cross sectional view of the
packing shown right, push the thinner side into the
packing groove.
(Right drawing is the example of lateral format.)
(2) GT1155-QTBDQ, GT1155^QSBDQ,
GT1150-QLBDQ, GT1155-QTBDA, GT1155-QSBDA,
and GT1150-QLBDA
Units are shipped with the packing attached.
2 Inserting into the panel face
Insert the GOT from the front side of the panel.

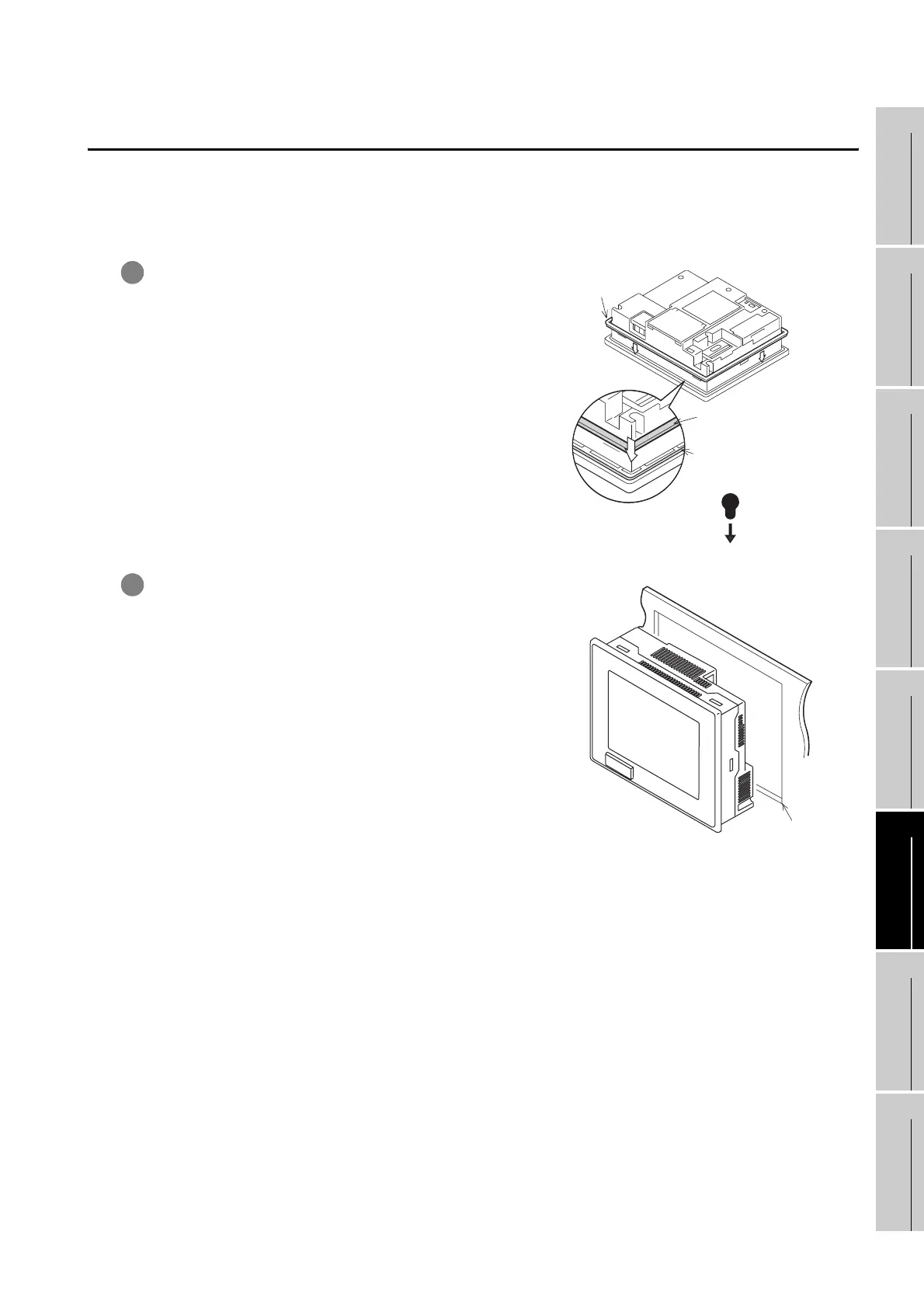

Packing cross sectional view
Inserting direction
Packing
Packing installation groove
Packing
Magnified
illustration
Mounting hole

Mitsubishi GOT1000 GT11 Specifications

General

Power Supply	24V DC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Screen Size	5.7 inches
Resolution	320 x 240 pixels
Communication Interface	RS-422/485, USB
Memory	Internal flash memory
CPU	RISC
Touch Panel	Analog Resistive
