9 - 8
9.3 Utility Display
9.3.2 Utility basic configuration
9.3.2 Utility basic configuration

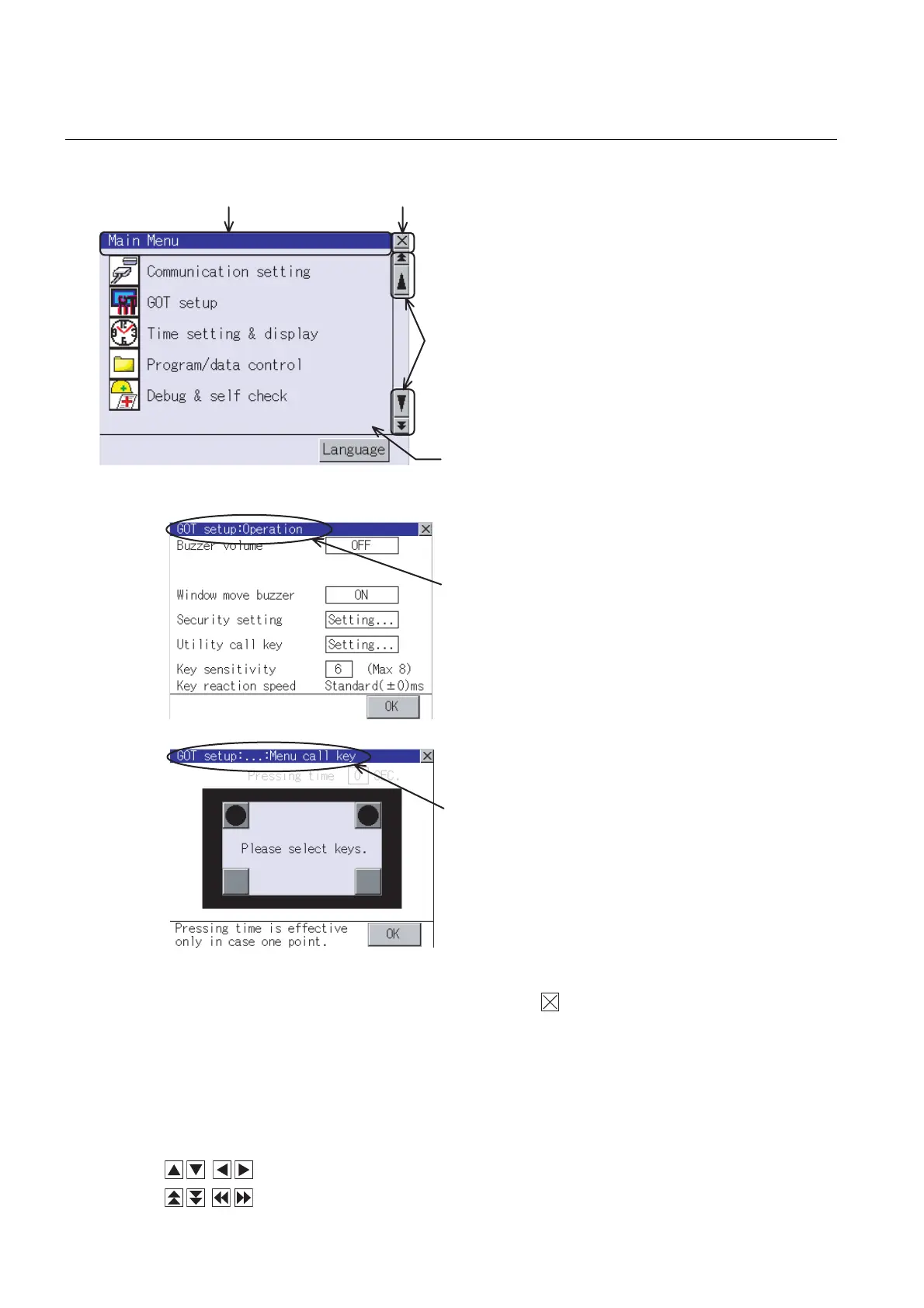

The basic configuration of the screen is as follows.
(1) Title display
The screen title name is displayed in title
display part.
As the screen is composed of multiple
layers, the title including these layers is
displayed.
If the title overflows the title display area,
the middle section is omitted and "..." is
displayed at the section.
(2) Close/Return button
When a middle screen of the layers is displayed, if the (Close/return) button in the right corner
of screen is touched, returns to the previous screen.
If this button is touched when directly displayed from monitor screen, the screen is closed and
returns to monitor screen.
(3) Scroll button
For screens in which the content does not fit on one screen page, there is a right or down scroll
button on the screen.
Scroll one line/column
Scroll window
Scroll key
Title display Close/Return button
Screen
Title displa
Title display
