9 - 1
9.1 Utility Execution
9
UTILITY FUNCTION
10
COMMUNICATION
INTERFACE
SETTING
11
DISPLAY AND
OPERATION
SETTINGS
12
CLOCK SETTINGS
AND BATTERY
STATUS DISPLAY
13
FILE DISPLAY AND
COPY
14
GOT SELF CHECK
15
CLEANING OF
DISPLAY SECTION
16
INSTALLATION OF
BOOTOS AND
STANDARD MONITOR OS
9. UTILITY FUNCTION
Utility is a function, which carries out connection of GOT and PLC, screen display and operation method
settings, program/data control and self-check etc.
Refer to the following for the utility function list.
Section 9.2 Utility Function List
9.1 Utility Execution
For utility execution, utility has to be displayed by installing BootOS and Standard monitor OS in the C drive
(Flash memory).

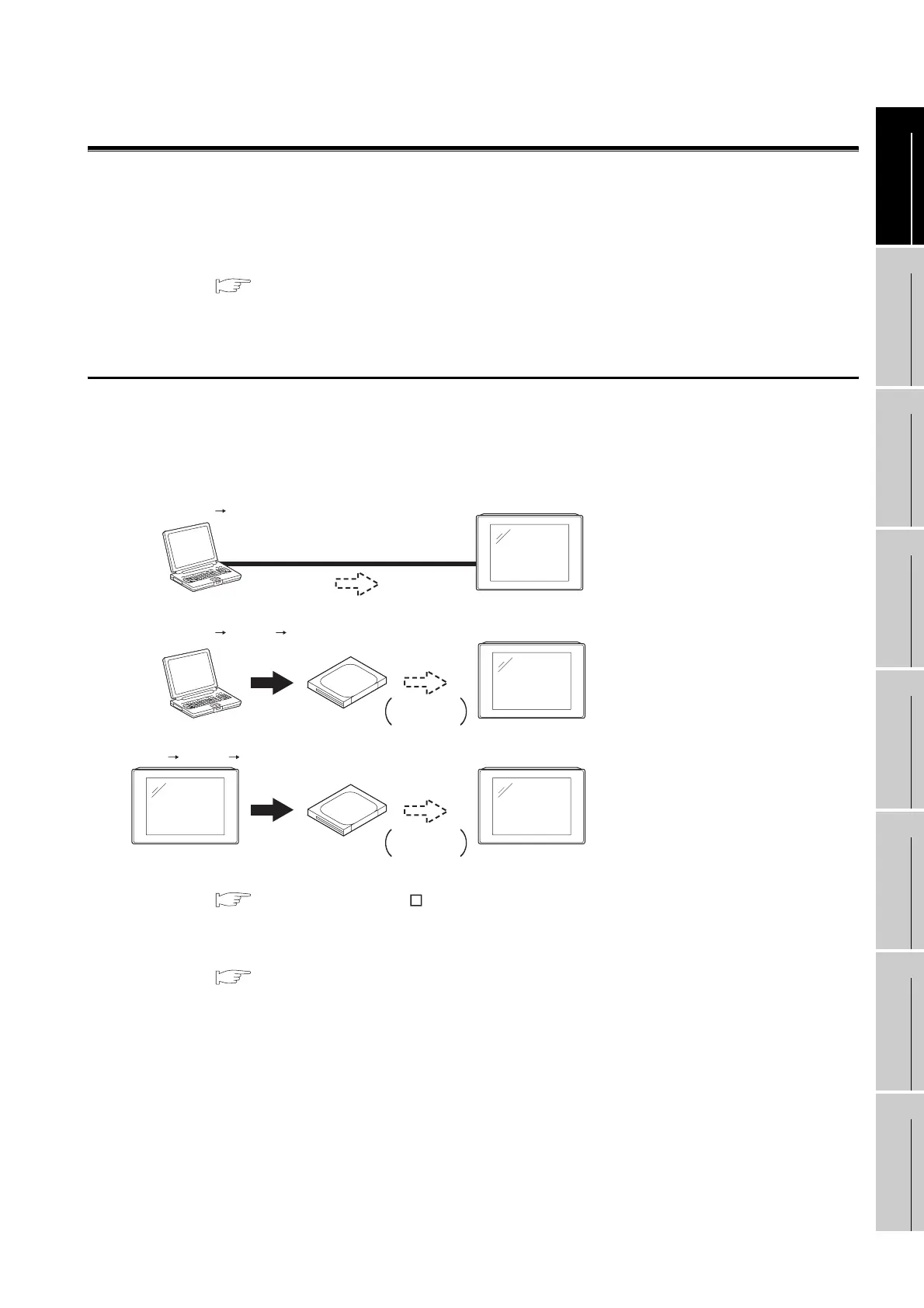

There are following three types for the installing Standard monitor OS methods.
Refer to the following for the installation which uses GT Designer2.
GT Designer2 Version Basic Operation/Data Transfer Manual
Chapter 8 TRANSFERRING DATA
Refer to the following for the installation which uses GOT.
Chapter 16 INSTALLATION OF CoreOS, BOOTOS AND STANDARD MONITOR OS
Via USB interface or
RS-232 interface
BootOS or Standard monitor OS installation
• Installed directly from the GT Designer2
BootOS or Standard
monitor OS installation
BootOS, Standard
monitor OS installation
CF card
GT Designer2
GT Designer2
CF card
GOT
GOT
GOT
GOT
OS file
write
1) GT Designer2 GOT
OS file
upload
2) GT Designer2 CF card GOT
3) GOT CF card GOT
Install the CF
card in GOT
Install the CF
card in GOT
• When GOT is remote, installed easily
using the CF card
• Install OS from GOT to GOT using CF card
