6.4 Control Panel Temperature and Mounting Angle
6.4 Control Panel Temperature and Mounting Angle

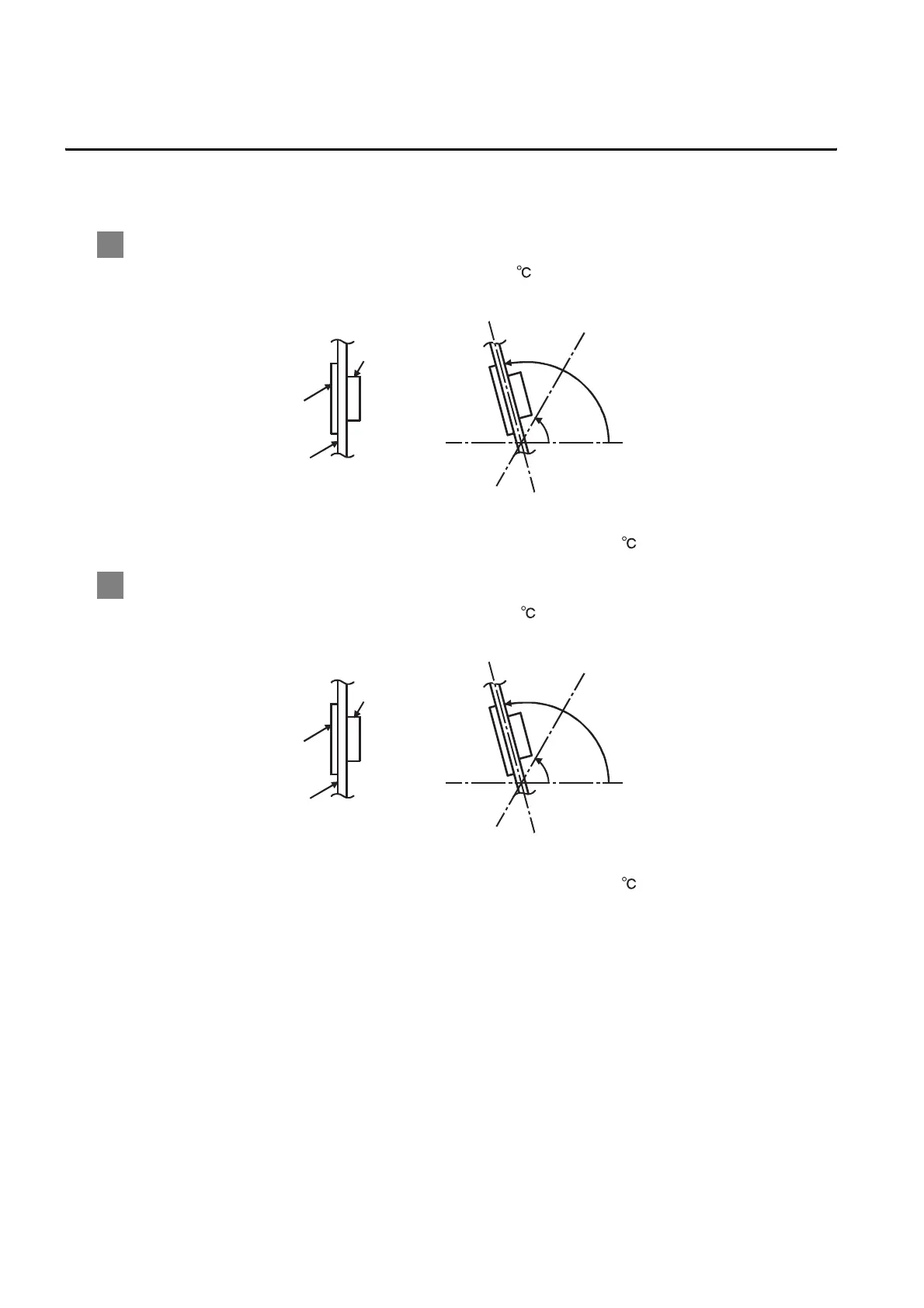

When mounting the main unit to a control panel or similar fixture, set the GOT display section as shown
below.
1 Horizontal installation
When the temperature inside the control panel is 40 to 55 , the mounting angle should be in the range
from 60 to 105 degrees.
• The GOT will have a longer lifetime if used within the mounting angles shown above.
Ideally, the temperature inside the control panel should not exceed 0 to 40
2 Vertical installation
When the temperature inside the control panel is 40 to 50 , the mounting angle should be in the range
from 60 to 105 degrees.
• The GOT will have a longer lifetime if used within the mounting angles shown above.
Ideally, the temperature inside the control panel should not exceed 0 to 40 .
GOT
back panel
GOT
display
section
Control panel,
etc.
105°
60°
GOT
back panel
GOT
display
section
Control panel,
etc.
105°
60°

Mitsubishi GOT1000 GT11 Specifications

General

Power Supply	24V DC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Screen Size	5.7 inches
Resolution	320 x 240 pixels
Communication Interface	RS-422/485, USB
Memory	Internal flash memory
CPU	RISC
Touch Panel	Analog Resistive
