Mitsubishi GOT1000 GT11 User Manual

App - 3
17
MAINTENANCE AND INSPECTION
18
ERROR MESSAGE AND SYSTEM ALARM
APPENDICES

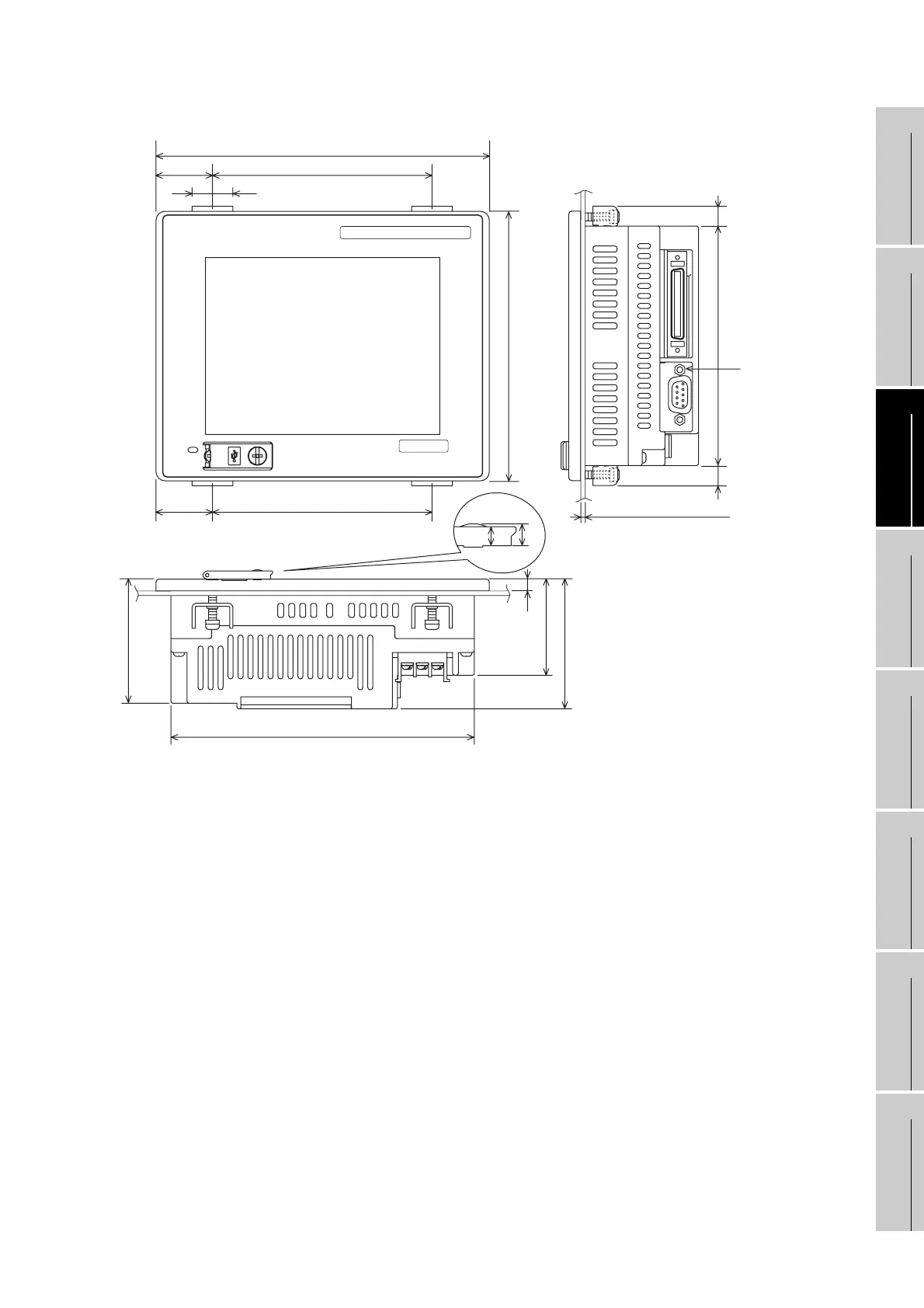

Appendix 1 External Dimensions
External dimensional diagrams of GT1155-QTBDA, GT1155-QSBDA and GT1150-QLBDA
GRAPHIC OPERATION TERMINAL
GOT 1000
MITSUBISHI
167(6.57")
28.5
21(0.83")
135(5.32")
62
(2.44")
6(0.24")
48(1.89")
65(2.56")
10
120
(4.73")
10
110(4.33")
#4-40UNC
(Inch screw type)
Panel board thickness to be 5 mm(0.2
") or less
Unit: mm(inch)
152
(5.99")
28.5
110(4.33")
(1.12")
(1.12")
(0.4")(0.4")
4
5
(0.16") (0.2")

Mitsubishi GOT1000 GT11 Specifications

General

Power Supply	24V DC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Screen Size	5.7 inches
Resolution	320 x 240 pixels
Communication Interface	RS-422/485, USB
Memory	Internal flash memory
CPU	RISC
Touch Panel	Analog Resistive
