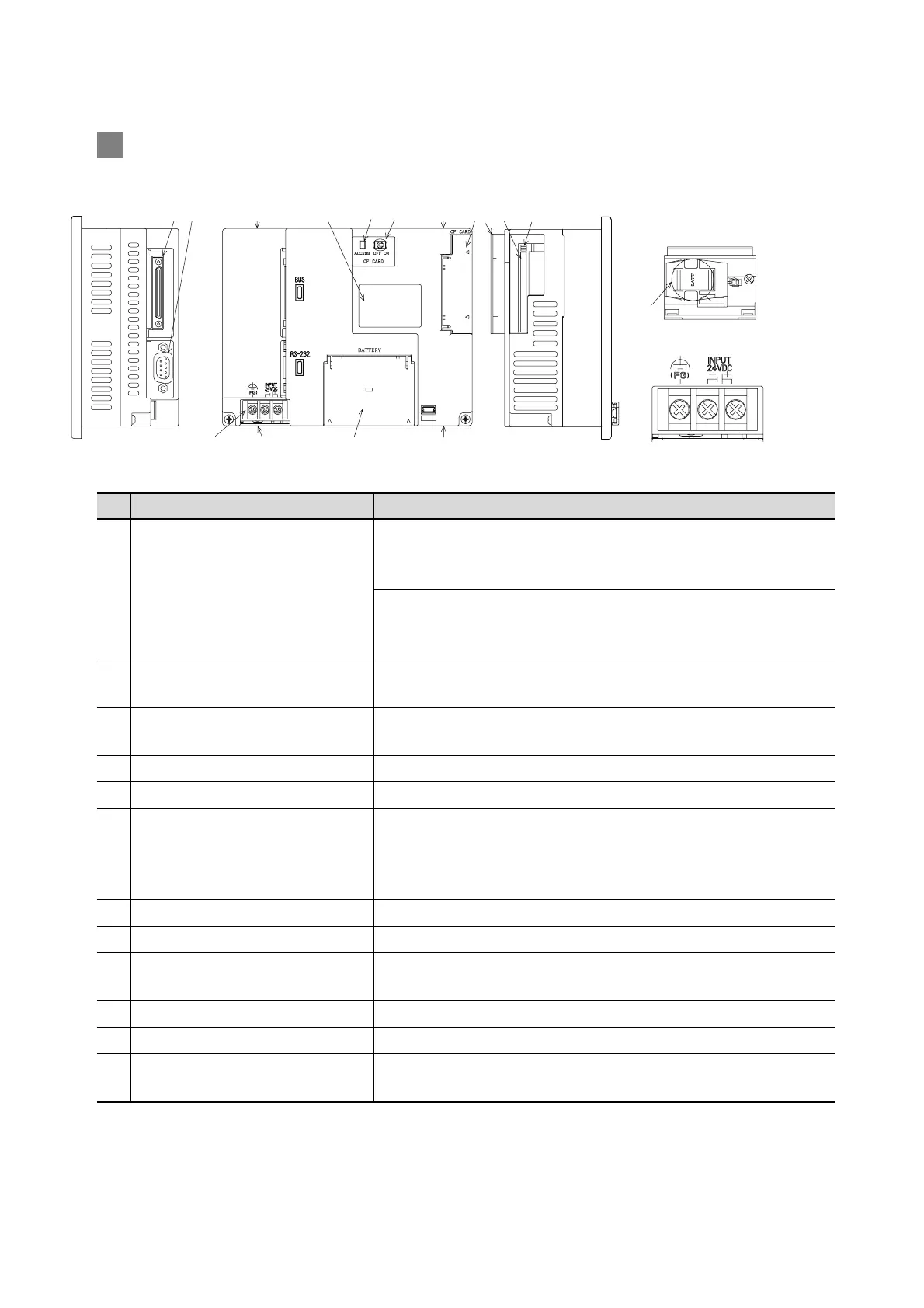

4.2 Back Panel
2 GT1155-QTBDQ, GT1155-QSBDQ, GT1150-QLBDQ, GT1155-QTBDA,
GT1155-QSBDA, GT1150-QLBDA
No. Name Specifications
1) Bus interface
Compatible GOT : GT1155-QTBDQ, GT1155-QSBDQ, GT1150-QLBDQ
Use : For connection to QCPU (Q mode)/motion controller
CPU (Q series)
Compatible GOT : GT1155-QTBDA, GT1155-QSBDA, GT1150-QLBDA
Use : For connection to QnA/ACPU/motion controller CPU
(A series)
2) RS-232 interface
For communicating with controller (bar code) or personal computer (OS
installation, project data download, transparent) (D-sub 9-pin male)
3) Hole for unit installation fitting
Hole for the inserting installation fittings (accessory) during the GOT
installation to the panel (4 holes at top and bottom)
4) Rating plate (nameplate) -
5) CF card access LED Lit: CF card accessed Not lit: CF card not accessed
6) CF card access switch
Switch for prohibiting access to CF card before removing the CF card from
the GOT
ON : CF card being accessed (CF card removal prohibited)
OFF : No access to CF card (CF card removal possible)
7) CF card cover Open or close when inserting or removing the CF card.
8) Battery cover Open or close when replacing the battery.
9) Power terminal
Power terminal and FG terminal (for power supply (24VDC) to GOT and
grounding)
10) CF card interface Interface for installing the CF card to GOT
11) CF card eject button Button for removing the CF card
12) Battery
GT11-50BAT battery for storing clock data, alarm history and recipe data
(The project data is stored in the built-in flash memory.)
Battery cover opened
Power supply terminal layout
CF card cover opened
1)
3)
3)
9)
11)10)
7)
3)
6)
5)
4)
3)
2)
8)
12)
