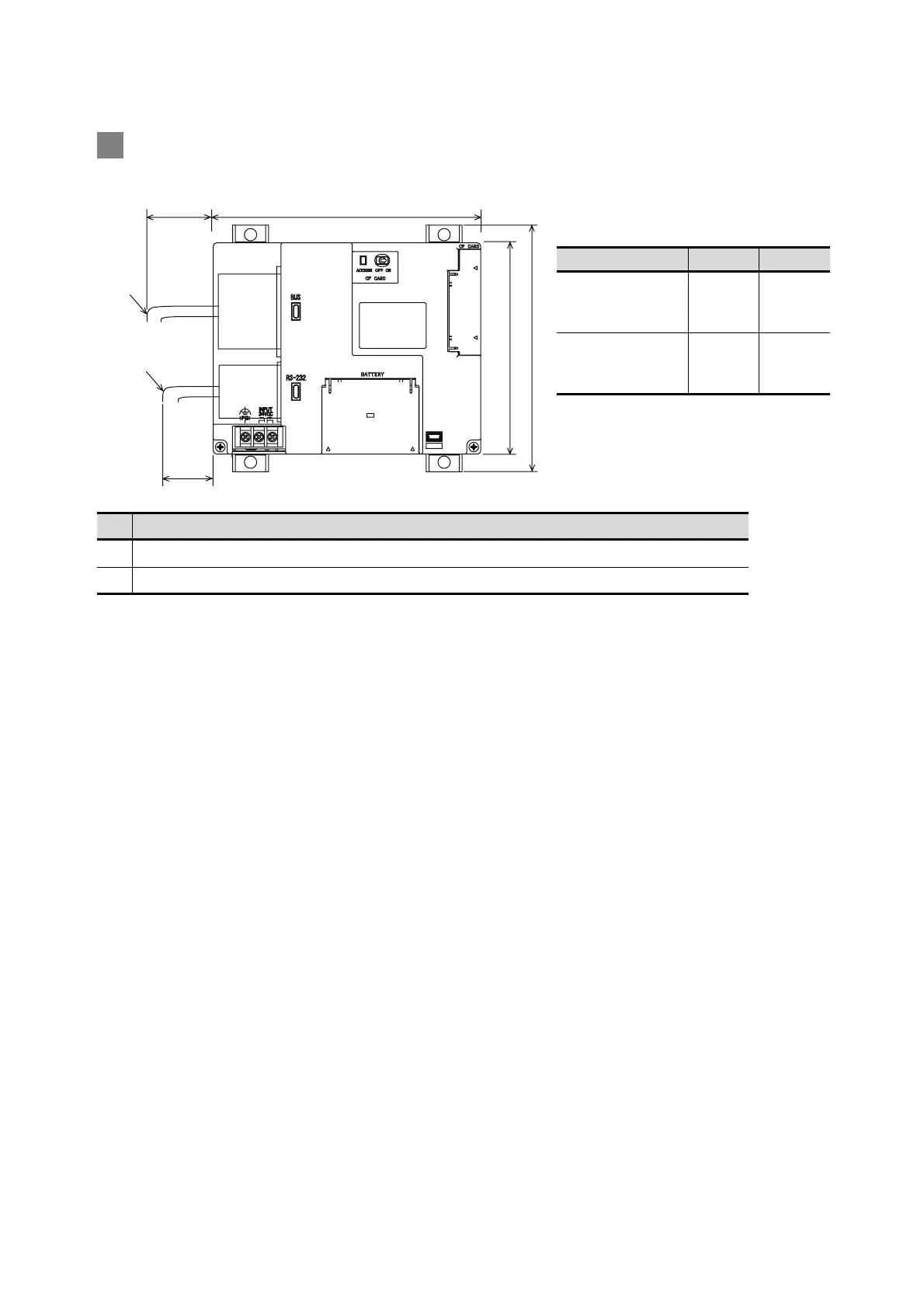

6.1 Control Panel Inside Dimensions for Mounting GOT
2 GT1155-QTBDQ, GT1155-QSBDQ, GT1150-QLBDQ, GT1155-QTBDA, GT1155-
QSBDA, GT1150-QLBDA
No Name
1)
Bus cable
2) PC cable/barcode cable
152 (5.99")
120 (4.73")
140 (5.52")
A
B
1)
2)
Unit: mm(inch)
Type A B
GT1155-QTBDQ
GT1155-QSBDQ
GT1150-QLBDQ
56(2.20) 40(1.57)
GT1155-QTBDA
GT1155-QSBDA
GT1150-QLBDA
38(1.50) 40(1.57)
