8.1 CF Card
8.1.2 Installing and removing procedures of the CF card
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
PART NAME
5
EMC DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION
2 Removing
1 Set the CF card access switch of the GOT to "OFF."
Make sure that the CF card access LED turns off.
When the CF card access LED turns off, the CF card can be installed
or removed even during the GOT power on.
2 Push-in the CF card eject button of the GOT to eject the CF card,
and then remove the CF card.
Precautions for removing the CF card
(1) While the CF card access LED is on, do not install/remove the CF card or power
off the GOT.
To do so may cause data corruption or malfunction.
(2) When ejecting the CF card, support it by hand since it may pop out.
Failure to do so may cause a fall of the CF card leading to failure or damage of
the card.

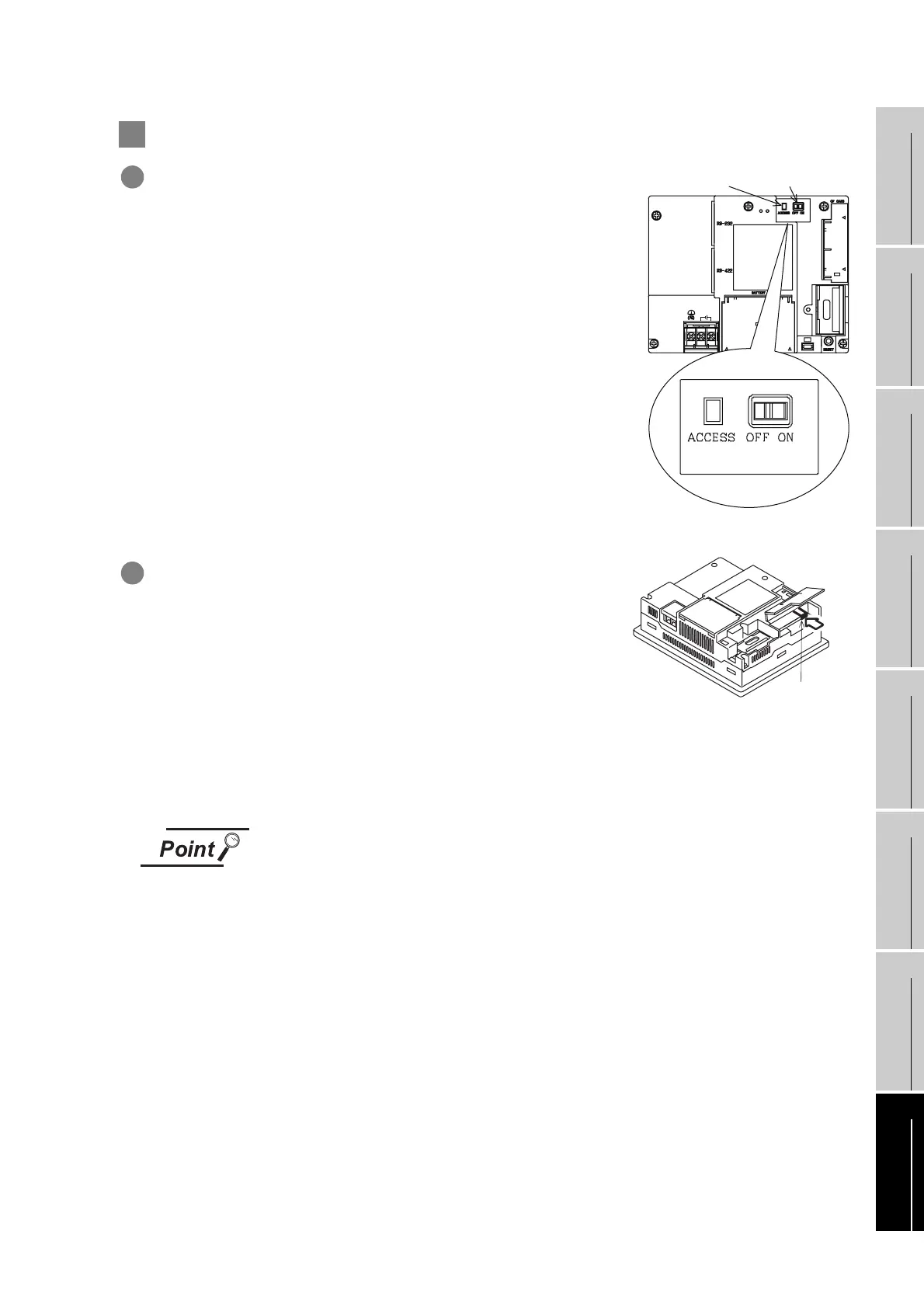

CF card access
switch
CF card
access LED
CF card
I/F
24V DC
INPUT
+-
CF card
GT1155-QSBD, GT1150-QLBD
CF card
eject
button
Push.

Mitsubishi GOT1000 GT11 Specifications

General

Power Supply	24V DC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Screen Size	5.7 inches
Resolution	320 x 240 pixels
Communication Interface	RS-422/485, USB
Memory	Internal flash memory
CPU	RISC
Touch Panel	Analog Resistive
