8.4 Battery
8.4.3 Battery replacement procedure
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
PART NAME
5
EMC DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION

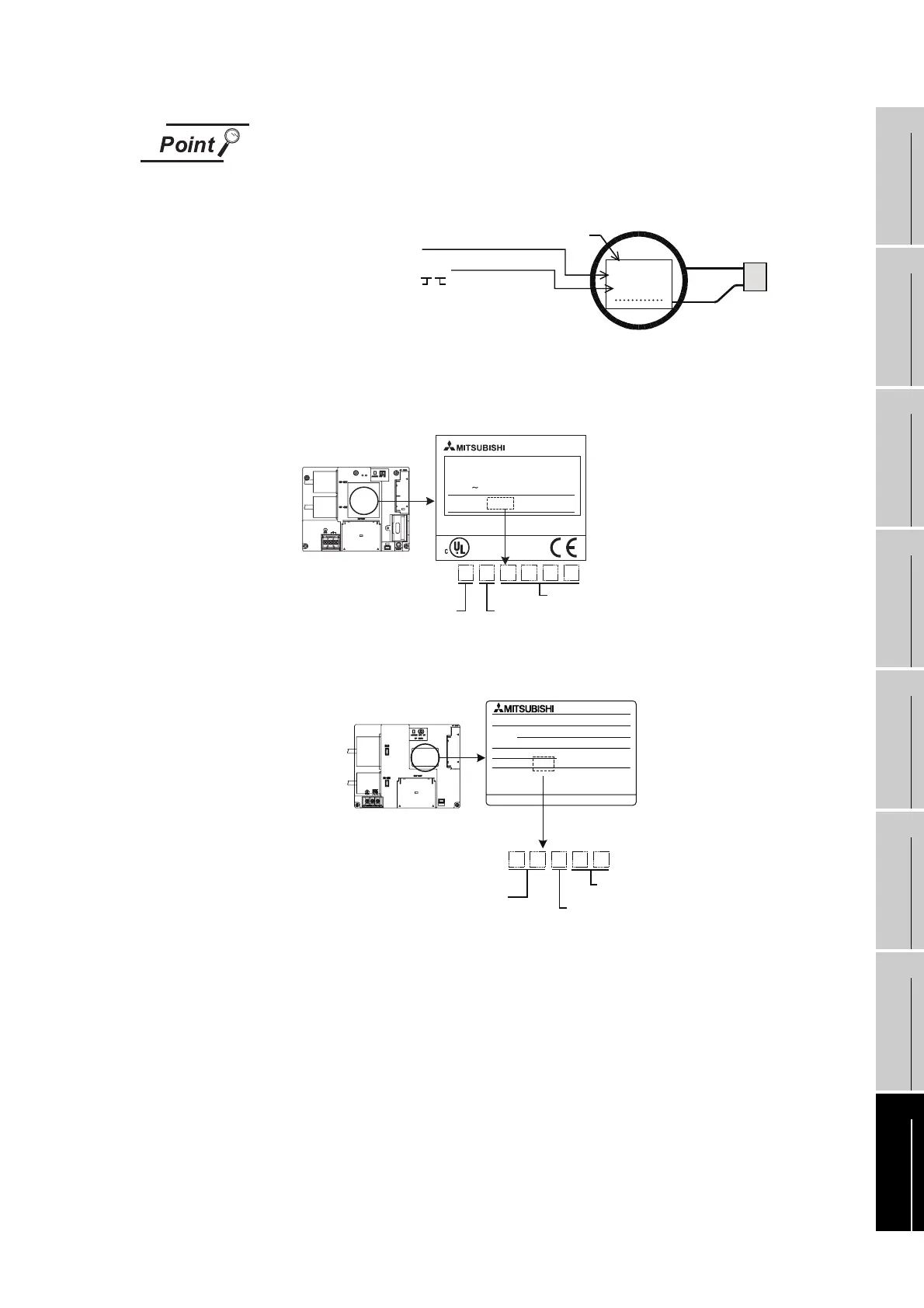

(1) Battery life
The battery life is approximately 5 years.
The production date of the optional replacement battery can be confirmed by the
lot No. marked on the nameplate (label) affixed on the battery.
The production date of the battery built in the purchased GOT can be confirmed
by the production No. (serial No.) marked on the GOT main unit
(a) GT1155-QSBD, GT1150-QLBD.
(b) GT1155-QTBDQ, GT1155-QTBDA, GT1155-QSBDQ,
GT1155-QSBDA, GT1150-QLBDQ, GT1150-QLBDA
(2) Battery procurement
The battery is susceptible to natural discharge. Order one when necessary.
GT11-50BAT
LOT.54
Connecto
r
Year (example: 2005)
last digit
L OT.5 4
Model name
Month
(example: Apr.)
1 (Jan.) to 9 (Sep.),
X (Oct.), Y (Nov.), Z (Dec.)
Nameplate
5 4 0 0 0
Control number
Year (example: 2005)
last digit
1
Month (example: Apr.). 1 to 9: Jan. to Sep.,
X: Oct., Y: Nov., Z: Dec.
CF CARD
I/F
24V DC
INPUT
+-
GRAPHIC OPERATION TERMINAL
MODEL
IN 20.4
SERIAL
MITSUBISHI ELECTRIC CORPORATION
MADE IN JAPAN
80M1 IND. CONT. EQ
US LISTED
JY550D26101A
540001 BC
26.4VDC
POWER 9.84W MAX
GT1155-QSBD
MODEL
GRAPHIC OPERATION TERMINAL
SERIAL
GT1155-QTBDQ
00007201 DP00001-A
IN 24VDC
POWER MAX 00W
MITSUBISHI ELECTRIC MADE IN JAPAN
Year (e.g., 2007) The last two digits
of the Western calendar year
Date (e.g., 1st) 1 to 31=1st to 31st
Month
(e.g., February)
1 to 9=Jan. to Sept.,
X = Oct., Y = Nov., Z = Dec.
0
7
2
0
1

Mitsubishi GOT1000 GT11 Specifications

General

Power Supply	24V DC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Screen Size	5.7 inches
Resolution	320 x 240 pixels
Communication Interface	RS-422/485, USB
Memory	Internal flash memory
CPU	RISC
Touch Panel	Analog Resistive
