(b) GT1155-QTBDQ, GT1155-QSBDQ, GT1150-QLBDQ, GT1155-QTBDA, GT1155-QSBDA,
GT1150-QLBDA
Standard interfaces have the following three types
BUS.........For communication with PLC
RS232 .....For communication with PC (GT Designer2) and barcode reader
USB.........For communication with PC (GT Designer2)

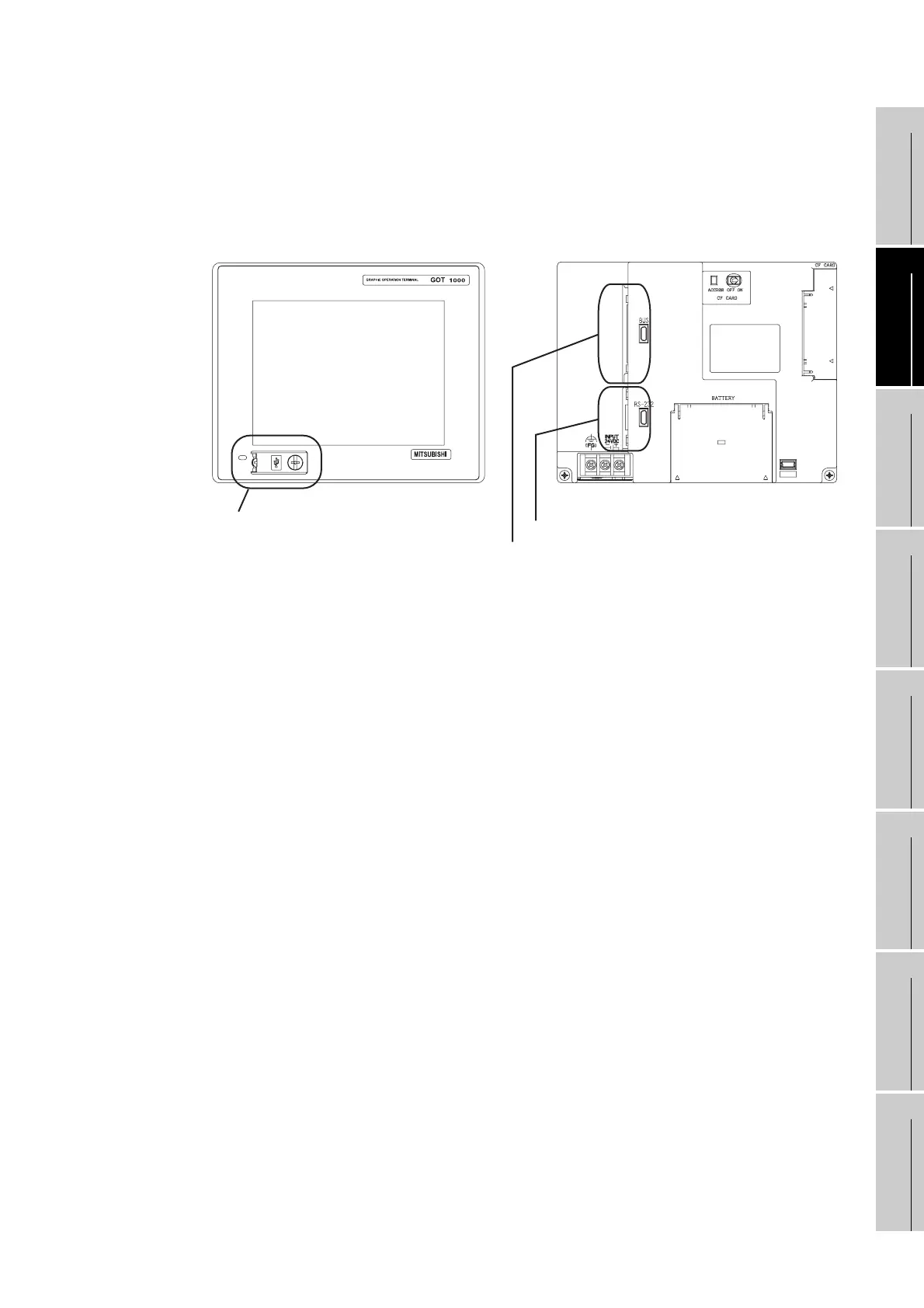

[GOT front face]
USB interface (Standard interface)
(mini)
[GOT rear face]
BUS interface (Standard interface)
BUS for connection to QCPU (Q mode)/motion controller CPU (Q series),
or BUS for connection to QnA/ACPU/motion controller CPU (A series)
RS-232 interface (Standard interface)
