WATER MANIFOLDS
Display

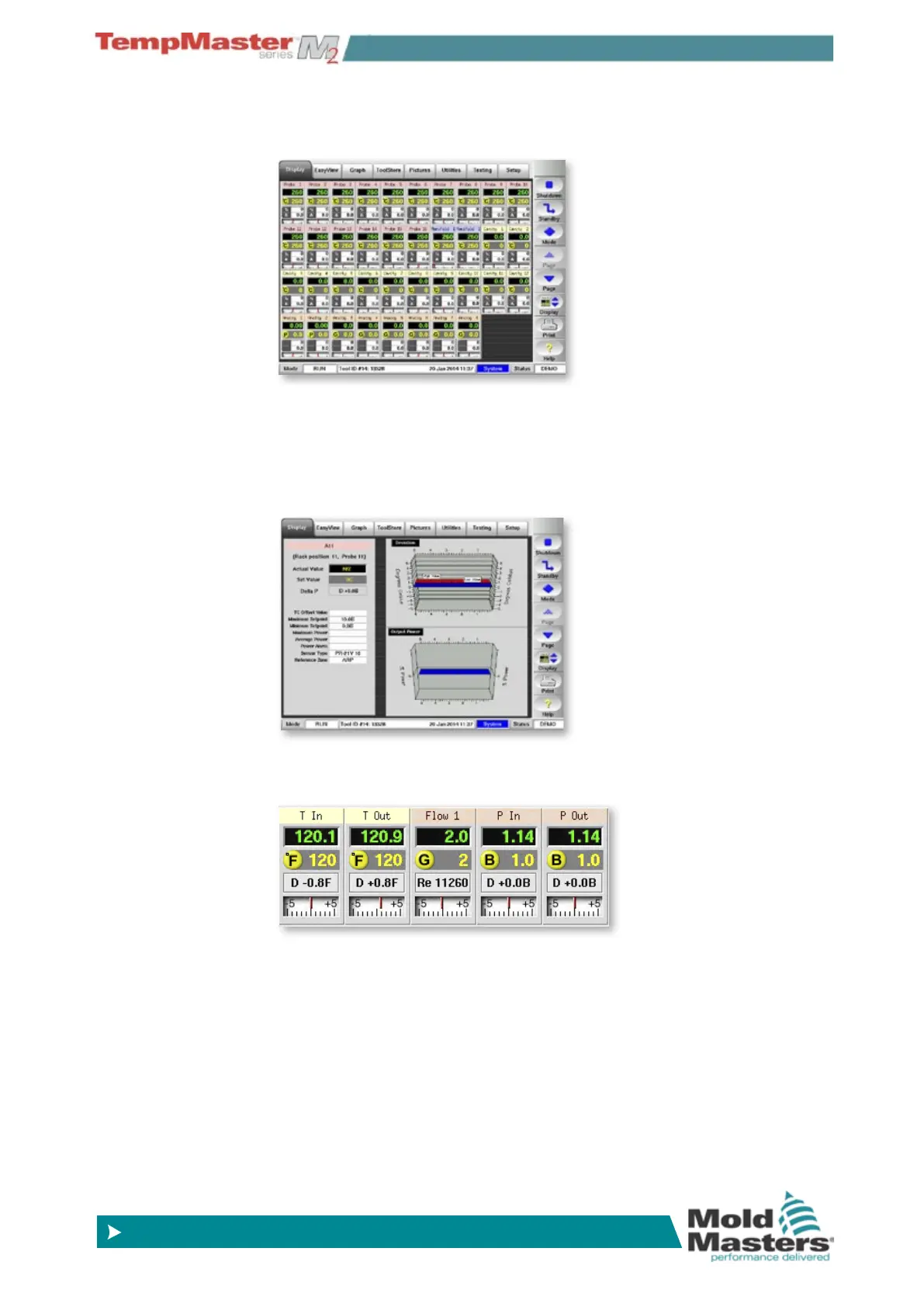

This shows an example Display page which has cavity temperature, Flow
temperature and Flow pressure zones.
Most of the zones are cross referenced to show:
1. Delta T (temperature difference) in the cavity temperature zones
2. Delta P (pressure difference) in the coolant pressure zones
3. Reynolds Factor (ow analysis) in the coolant ow zones
The zone page below shows the details for a typical coolant pressure
monitoring zone.
