SV9100 Networking Manual 4-79

 A trunk call (CO/PBX/TIE/DID/K-CCIS) over a K-CCIS network is transferred or

forwarded to another station or trunk within the same office as the original

incoming trunk. (Refer to Figure 4-2 Link Reconnect for Trunk Tandem Calls.)

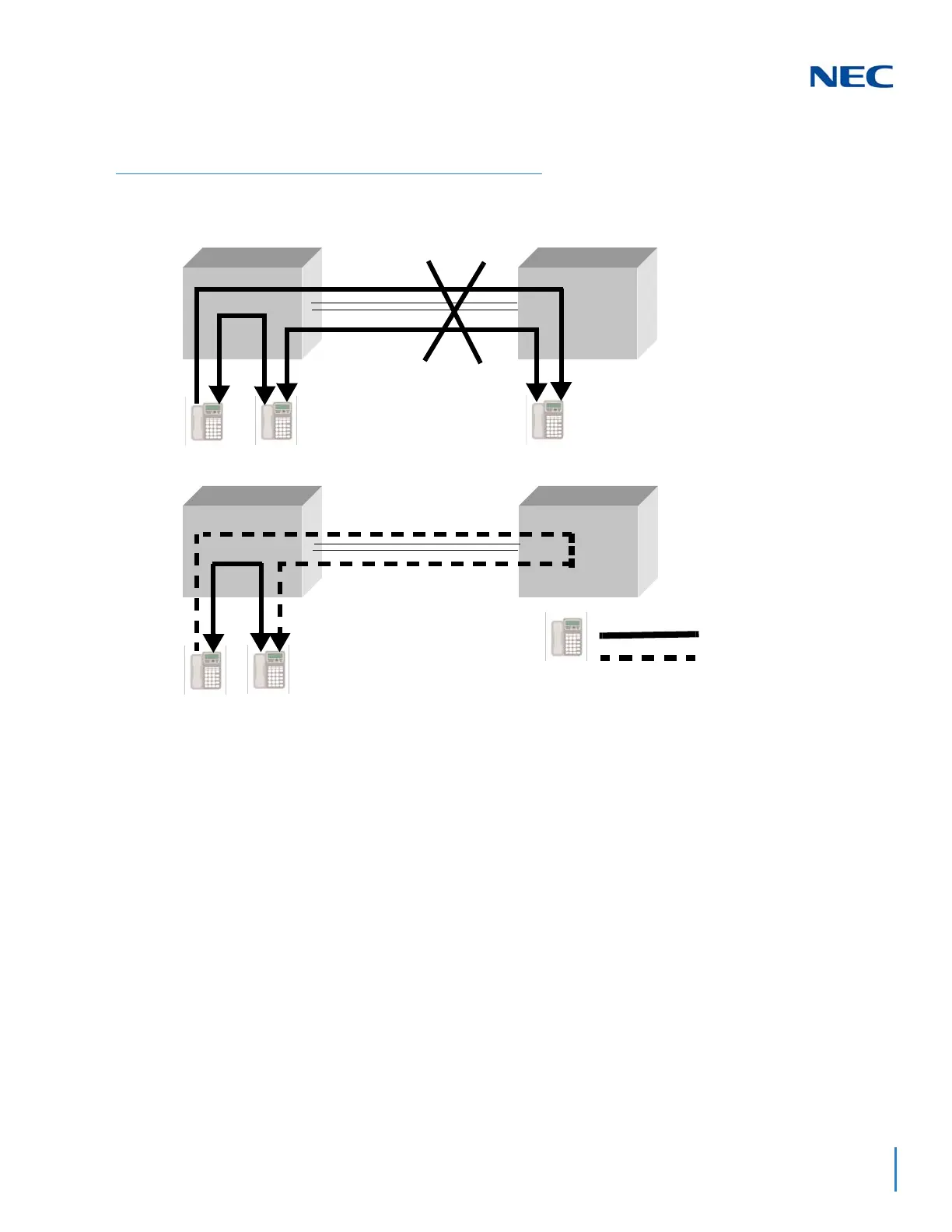

Figure 4-1 Link Reconnect for Station Calls

 When Station A holds the call or is in the conference, Link Reconnect is not provided.

System A

System A System B

System B

101 102

201

101

100

201

After Reconnect

Before Reconnect

Stations 101, 102, and 201 must be multiline terminals.
