Issue 2.0
3-8 General IP Configuration
SECTION 4 TESTING THE UNIVERGE SV9100 NETWORK CONNECTION
To test the UNIVERGE SV9100 network connection, it is possible to use the ICMP
(Internet Control Message Protocol) Ping command. This basically sends a small
amount of data from one device to another and then waits for a reply. This test
confirms that the IP addressing and physical connection are good. To perform this
test, from a Windows PC:
1. Click Start.
2. Click Run... .
3. In the Open dialogue box, enter command.
4. Click OK. A Command prompt window opens.
5. Type ping 192.168.1.200.

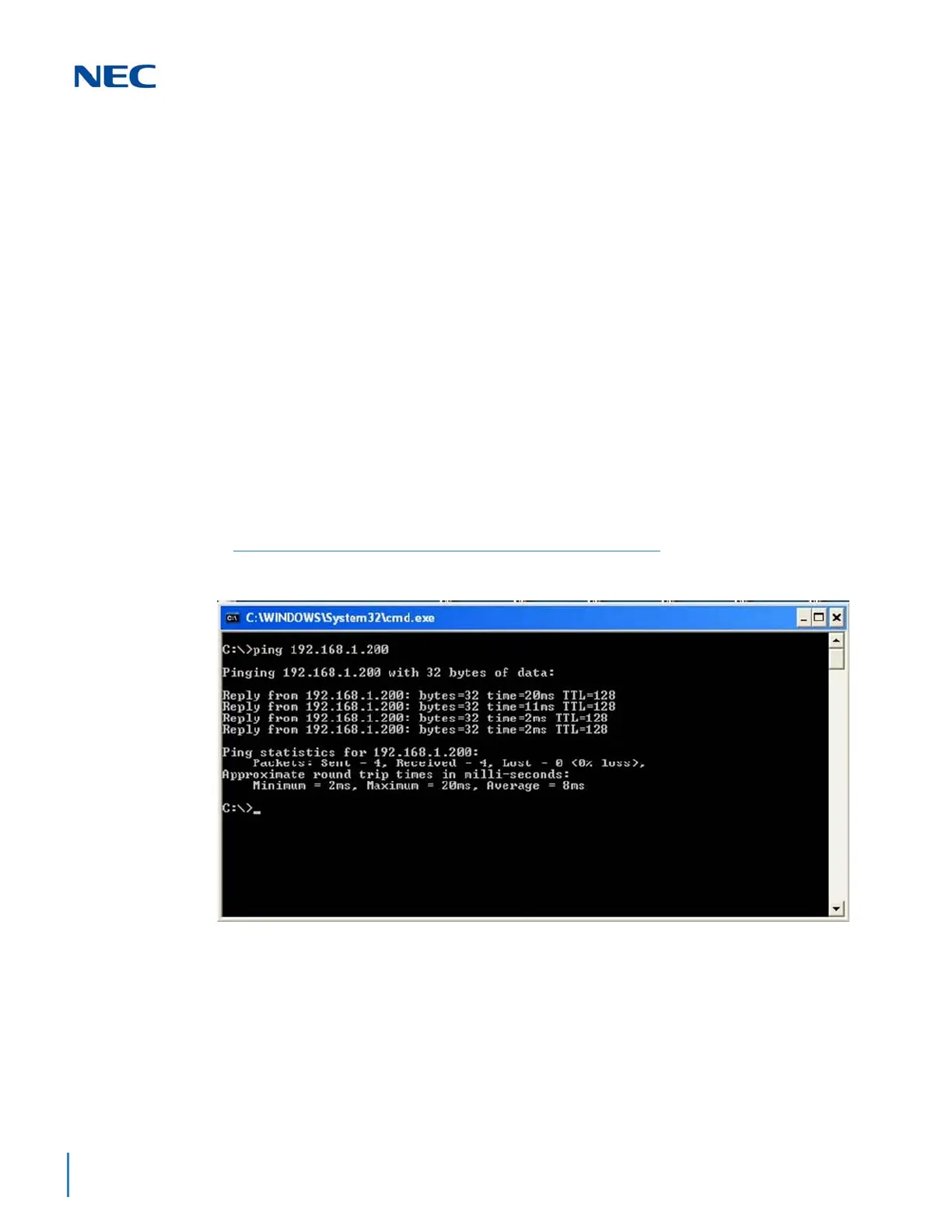

Figure 3-5 Testing the Network Connection shows that the UNIVERGE SV9100
system has replied to the Ping request – this indicates that the UNIVERGE SV9100
system is correctly connected to the network.
Figure 3-5 Testing the Network Connection
