5.3.2Multi-Site Networking Example
Multi-Site Networking is a network of three or more SV9100 systems. The network can consist of either
ISDN or IP network connections.

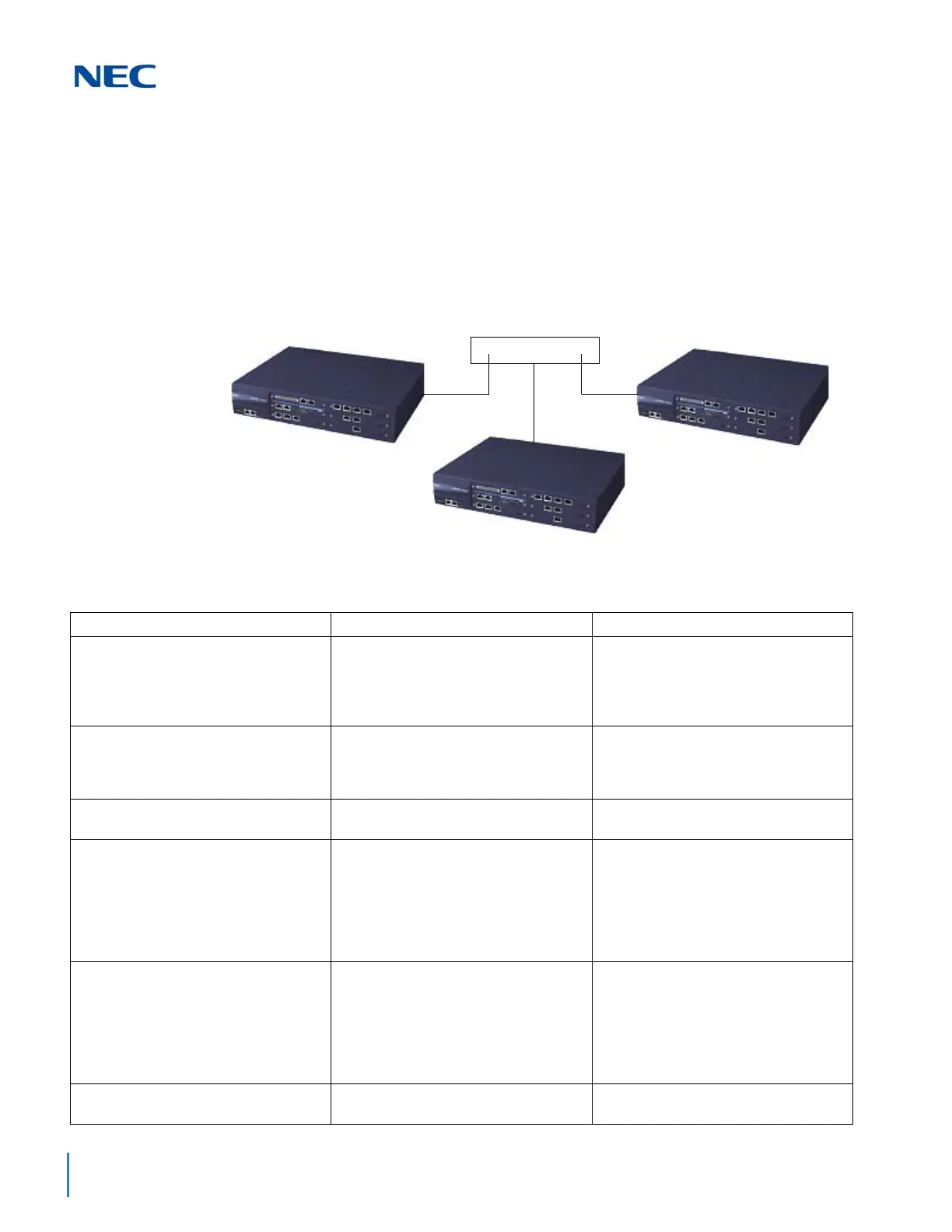

The example below shows three SV9100 systems, each has a VOIPDB Blade installed. The VOIPDB
Blades are connected to a hub via a standard LAN patch cable.
SV9100 A has extension numbers in the range 200-299, SV9100 B has 300-399, and SV9100 C has 400-
499.
SV9100 A SV9100 B SV9100 C
Program 10-12-09
IP Address of the IPLE = 172.16.0.10
Program 10-12-10
Subnet Mask = 255.255.0.0
Program 10-12-09
IP Address of the IPLE = 172.16.5.10
Program 10-12-10
Subnet Mask = 255.255.0.0
Program 10-12-09
IP Address of the IPLE
=172.16.10.10
Program 10-12-10
Subnet Mask = 255.255.0.0
Program 10-19-01
DSP Resource is assigned for the
Network.
= 3
Program 10-19-01
DSP Resource is assigned for the
Network.
= 3
Program 10-19-01
DSP Resource is assigned for the
Network.
= 3
Program 10-20-01 TCP Port Setup
Device 4 = 30000
Program 10-20-01 TCP Port Setup
Device 4 = 30000
Program 10-20-01 TCP Port Setup
Device 4 = 30000
Program 10-27-01 Destination IP
Address and port number for each
ID
ID 1 = IP Address 172.16.5.10
Procedure port must be set to 1730
ID 2 = IP Address 172.16.10.10
Procedure port must be set to 1730
Program 10-27-01 Destination IP
Address and port number for each ID
ID 1 = IP Address 172.16.0.10
Procedure port must be set to 1730
ID 2 = IP Address 172.16.10.10
Procedure port must be set to 1730
Program 10-27-01 Destination IP
Address and port number for each ID
ID 1 = IP Address 172.16.0.10
Procedure port must be set to 1730
ID 2 = IP Address 172.16.5.10
Procedure port must be set to 1730
Program 11-01-01 System Number-
ing
Dial 2x = 3 digit, Type 2 (Intercom)
Dial 3x = 3 digit, Type 8 (Network-
ing), ID=1
Dial 4x = 3 digit, Type 8 (Network-
ing), ID=2
Program 11-01-01 System Number-
ing
Dial 2x = 3 digit, Type 8 (Network-
ing), ID=1
Dial 3x = 3 digit, Type 2 (Intercom)
Dial 4x = 3 digit, Type 8 (Network-
ing), ID=2
Program 11-01-01 System Number-
ing
Dial 2x = 3 digit, Type 8 (Network-
ing), ID=1
Dial 3x = 3 digit, Type 8 (Network-
ing), ID=1
Dial 4x = 3 digit, Type 2 (Intercom)
Program 84-02-35
Enable Fast Start
Program 84-02-35
Enable Fast Start
Program 84-02-35
Enable Fast Start
SV9100 A
SV9100 B
Hub
IPLE IPLE
IPLE
