Issue 2.0
13-166 AspireNet
AspireNet - IP
5.3 AspireNet - IP
5.3.1 VoIP Networking Example
AspireNet IP requires the VOIPDB Blade and SV9100 Networking License. The VOIPDB Blade provides
the speech resources.

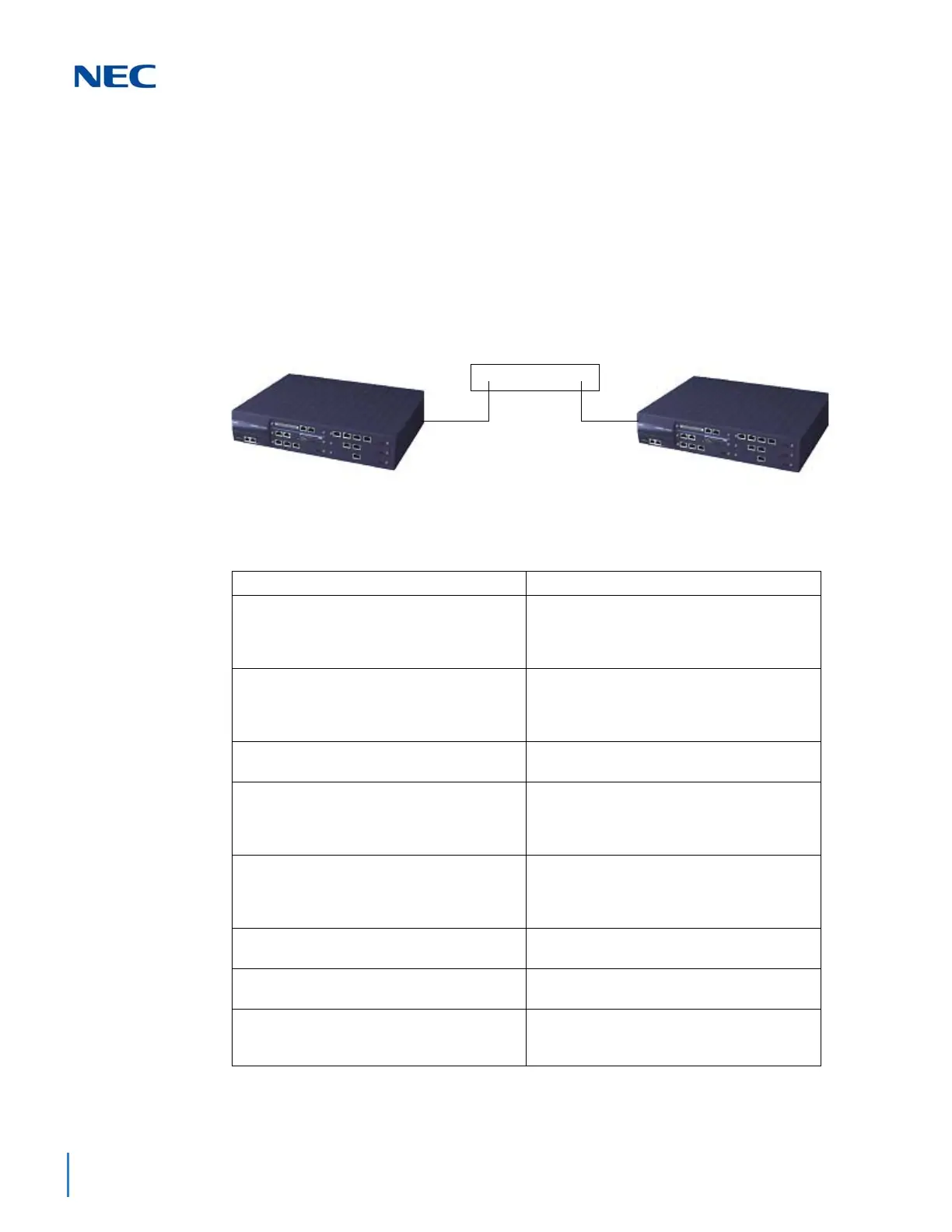

The example below shows two SV9100 systems, each has a VOIPDB Blade installed.
The VOIPDB Blades are connected to a hub via a standard LAN patch cable.
SV9100 A has extension numbers in the range 200-299, SV9100 B has 300-399.
SV9100 A SV9100 B
Program 10-12-09
IP Address of the IPLE = 172.16.0.10
Program 10-12-10
Subnet Mask = 255.255.0.0
Program 10-12-09
IP Address of the IPLE= 172.16.5.10
Program 10-12-10
Subnet Mask = 255.255.0.0
Program 10-19-01
DSP Resource is assigned for the Net-
work.
= 3
Program 10-19-01
DSP Resource is assigned for the Net-
work.
= 3
Program 10-20-01 TCP Port Setup
Device 4 = 30000
Program 10-20-01 TCP Port Setup
Device 4 = 30000
Program 10-27-01 Destination IP Address
and port number for each ID
ID 1 = IP Address 172.16.5.10
Procedure port must be set to 1730
Program 10-27-01 Destination IP Address
and port number for each ID
ID 1 = IP Address 172.16.0.10
Procedure port must be set to 1730
Program 11-01-01 System Numbering
Dial 2x = 3 digit, Type 2 (Intercom)
Dial 3x = 3 digit, Type 8 (Networking),
ID=1
Program 11-01-01 System Numbering
Dial 2x = 3 digit, Type 8 (Networking),
ID=1
Dial 3x = 3 digit, Type 2 (Intercom)
Program 84-02-35
Enable Fast Start
Program 84-02-35
Enable Fast Start
Program 84-12-31 DTMF Relay Mode
1 = RFC2833 (default: VoIPDB)
Program 84-12-31 DTMF Relay Mode
1 = RFC2833 (default: VoIPDB)
Program 84-26-01 IP address for each
DSP
172.16.0.20
Program 84-26-01 IP address for each
DSP
172.16.5.20
SV9100 A
SV9100 B
Hub
IPLE IPLE
To Next Page
