Issue 2.0

SV9100 Networking Manual 8-35

7. Click Save.

8. After saving settings, click OK to confirm. The telephone reboots and

applies the VLAN settings.

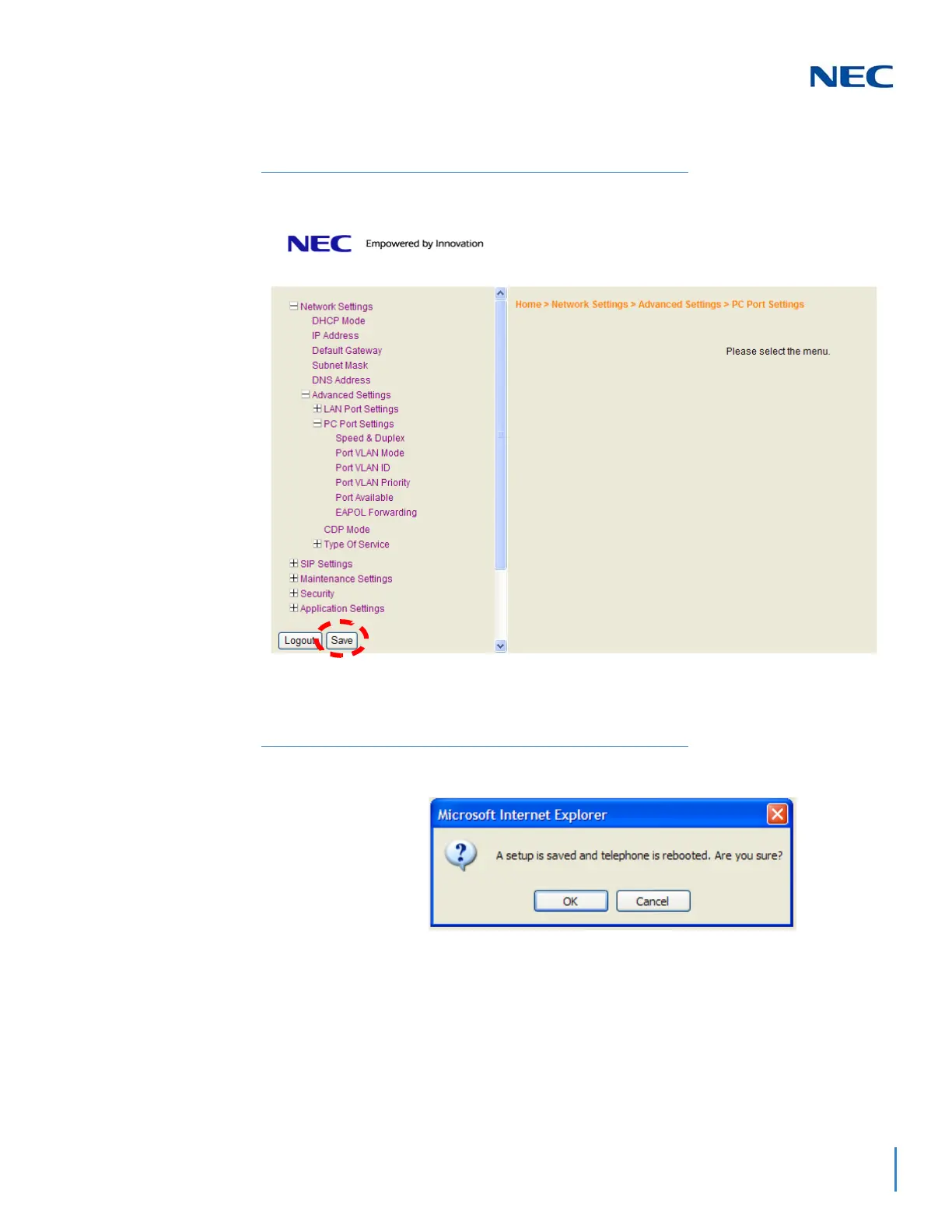

Figure 8-25 Save Network Settings

Figure 8-26 Save Confirmation Window
