3.2 Determining Number of K-CCIS Routes
When the system is a Central Office or Tandem Office, two or more routes to other
offices are required. Each GCD-CCTA can support one K-CCIS link. Up to eight
GCD-CCTA blades can be installed in a UNIVERGE SV9100 system. The KTS
requires the GCD-CCTA to support a K-CCIS interface.
One Common Signaling Channel (CSC) can support up to 127 voice channels, if
needed.

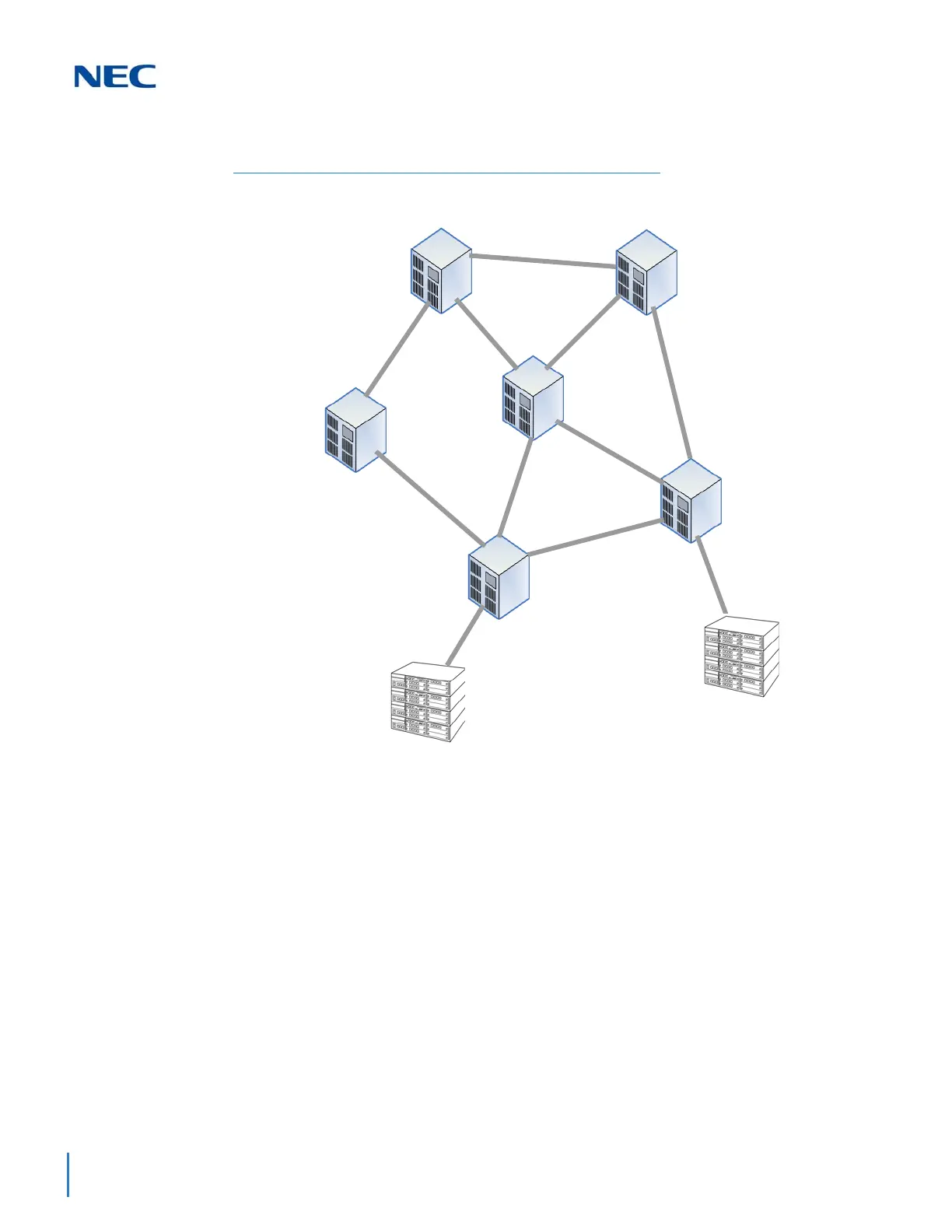

Figure 1-8 Mesh Topology (PBX-to-KTS)
NEAX2000/
NEAX2400
NEAX2000/
NEAX2400
NEAX2000/
NEAX2400
NEAX2000/
NEAX2400
NEAX2000/
NEAX2400
NEAX2000/
NEAX2400
A UNIVERGE SV9100 can be connected to a PBX only as a remote
office. The UNIVERGE SV9100 software can register a maximum of
255 point codes in the UNIVERGE SV9100 network. The network must
consist of a PBX-to-KTS structure with the KTS programmed as a
remote office. The KTS must be located as the end-point in the
UNIVERGE SV9100 network.
UNIVERGE SV9100
UNIVERGE SV9100
To Next Page
