Issue 2.0

5-8 SV9100 IP K-CCIS

1.4.8 Connectors

Figure 5-5 VoIP Connections shows a typical connection layout. Figure 5-6

Connecting a VOIPDB to a Network/PC on page 5-9 illustrates how to

connect a VoIP Daughter Board to a Network or PC.

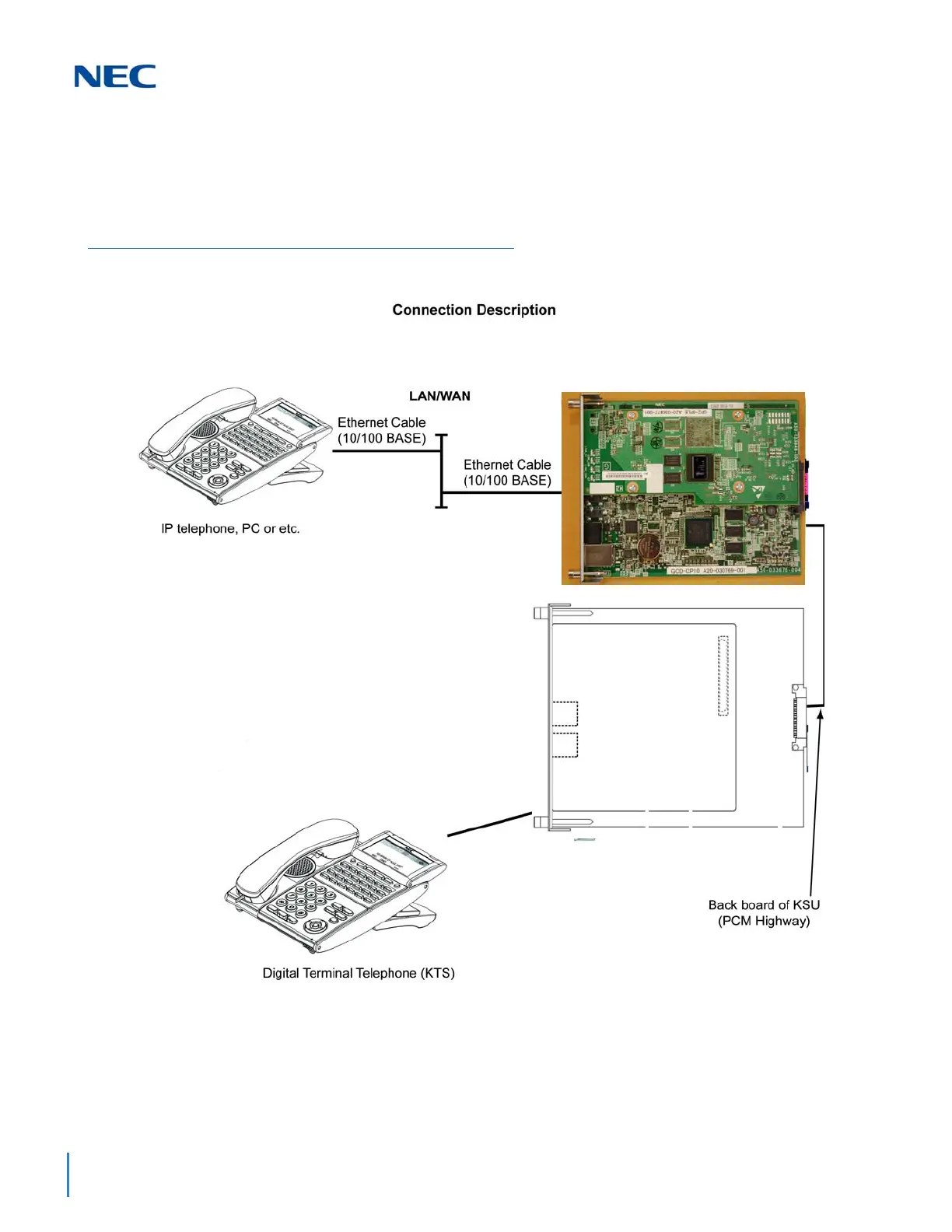

Figure 5-5 VoIP Connections

GCD-CP10

GPD-8/16DLCB
