Issue 2.0

10-8 SV9100 NetLink

NetLink with IP Phones connected via NAPT

3.2 Limitations

3.2.1 Features

Synchronous Ringing via NetLink is not supported.

3.2.2 IP Terminal

All DT800/DT700 terminals and softphones must register to the primary

system.

All DT800/DT700 terminals can register to either the primary or a secondary

system. Softphones and wireless LAN phones must still register to the

primary system.

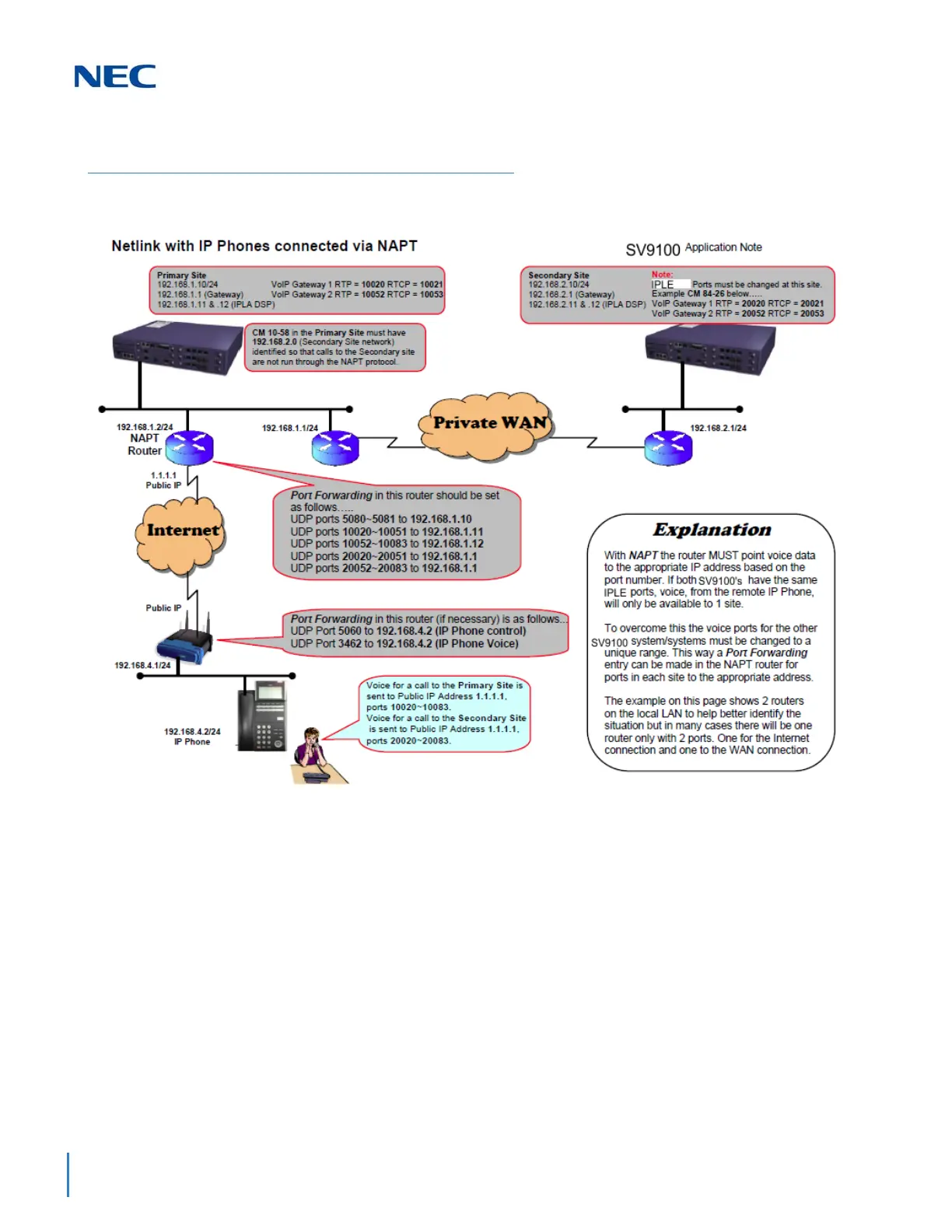

Figure 10-4 NetLink with IP Phones connected via NAPT
