NEC Univerge SV9100

To Next Page

To Previous Page

Issue 2.0

8-68 IP Multiline Station (SIP)

5. Program 10-46

Change Program 10-46-01 to Automatic.

6. Program 15-05-27

Each IP phone requires a unique personal ID index. Valid settings

are 1 ~ 960.

7. Program 84-22-01

Assign the user ID and password to be associated with the Personal

ID Index assigned in Step 6.

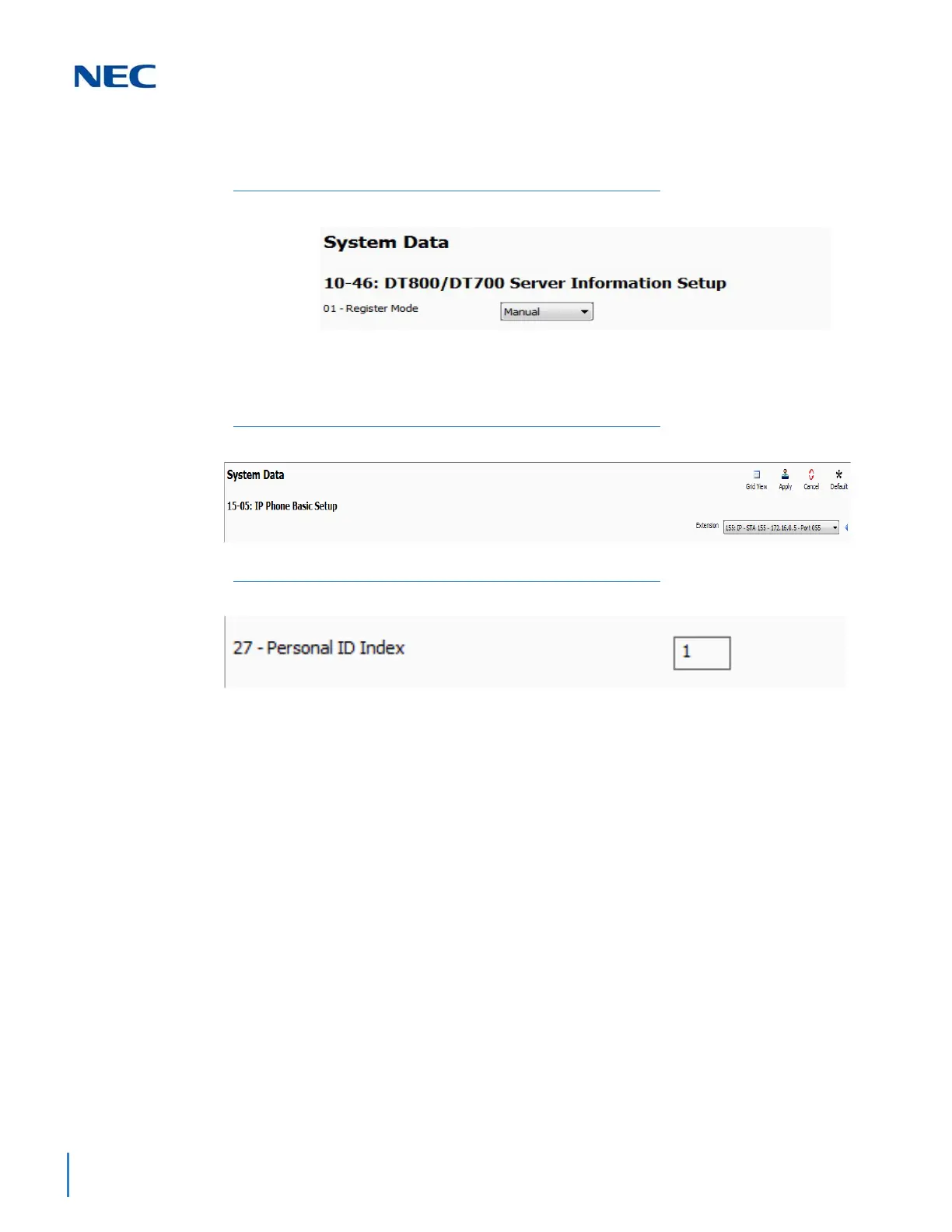

Figure 8-41 Automatic Registration Setting

Figure 8-42 Automatic Registration Basic Setup

Figure 8-43 Automatic Registration Personal ID Index
