7-12 H.323 Trunking
2.6 H.323 TIE Line Programming Example
Figure 7-1 H.323 TIE Line Programming Example illustrates how to program a
TIE line for H.323.
The following programs are assigned in this example.
84-01-67 H.323 Trunk Basic
Information Setup – G.722
Jitter Buffer (max)
0~300ms
Default is 120
84-01-68 RTP Filter 0 = Disable
1 = Enable
2 = Enable (SSRC)
Default is 1
Table 7-8 IP Networking (H.323) CODEC Assignments (Continued)
Program/
Item No.
Description/
Selection
Assigned Data Comments

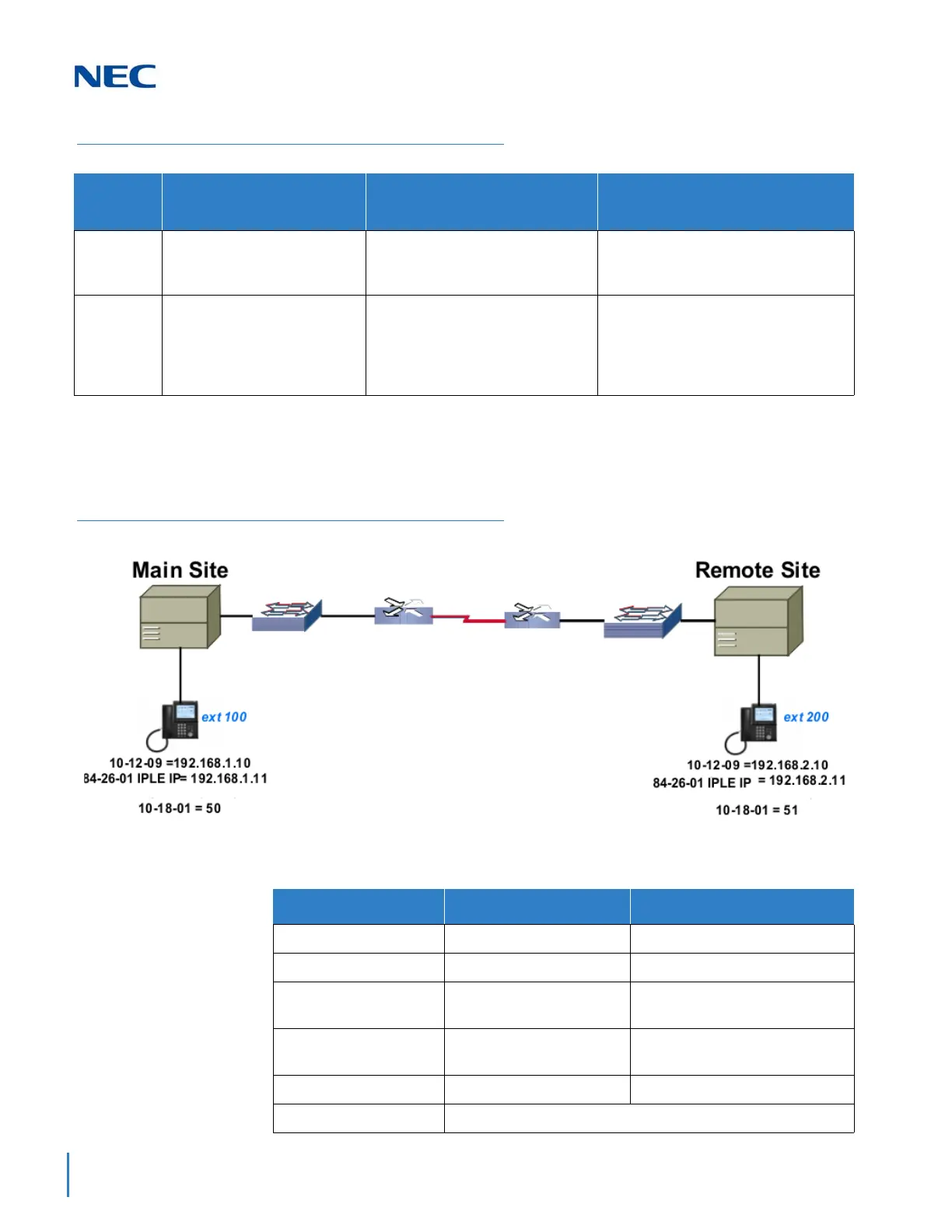

Figure 7-1 H.323 TIE Line Programming Example
Program Main Site (Office A) Remote Site (Office B)
PRG 10-12-09 * 192.168.1.10 192.168.2.40
PRG 10-12-10 * 255.255.255.0 255.255.255.0
PRG 11-01-01 Digit 1x 3 Digits, Extension Program 11-01-01 Digit 1x
3 Digits, F-Route
PRG 11-01-01 Digit 2x 3 Digits, F-Route Program 11-01-01 Digit 2x
3 Digits, Extension
PRG 11-02-01 100, 101, etc. 200, 201, etc.
PRG 14-05-01 Set all IP Trunks to Trunk Group 10
