Issue 2.0
SV9100 Networking Manual 8-43
Access the following menus to select options:
RTP - Voice Packets
SIP - Signalling Packets
4. After selecting Save, the following message appears.
5. Select OK and the phone reboots. Once online, the phone tags all packets
with the applied settings.
Assign Values on IP Terminal
The following is an example of assigning fields on the IP terminal.
1. Press and hold the Menu button until display changes.
2. Press 0 on the dial pad for Configuration.
3. At a default state there is no login or password associated to the IP terminal.
Press the OK soft key.
4. Press 1 on the dial pad for Network Settings.
5. Press 6 on the dial pad for Advanced Settings.
6. Press 4 on the dial pad for Type of Service.
7. There are two options (1) is RTP and (2) is SIP.
8. Press 1 on the dial pad for RTP (voice packets), enter the hexadecimal
value, and then press the OK soft key.

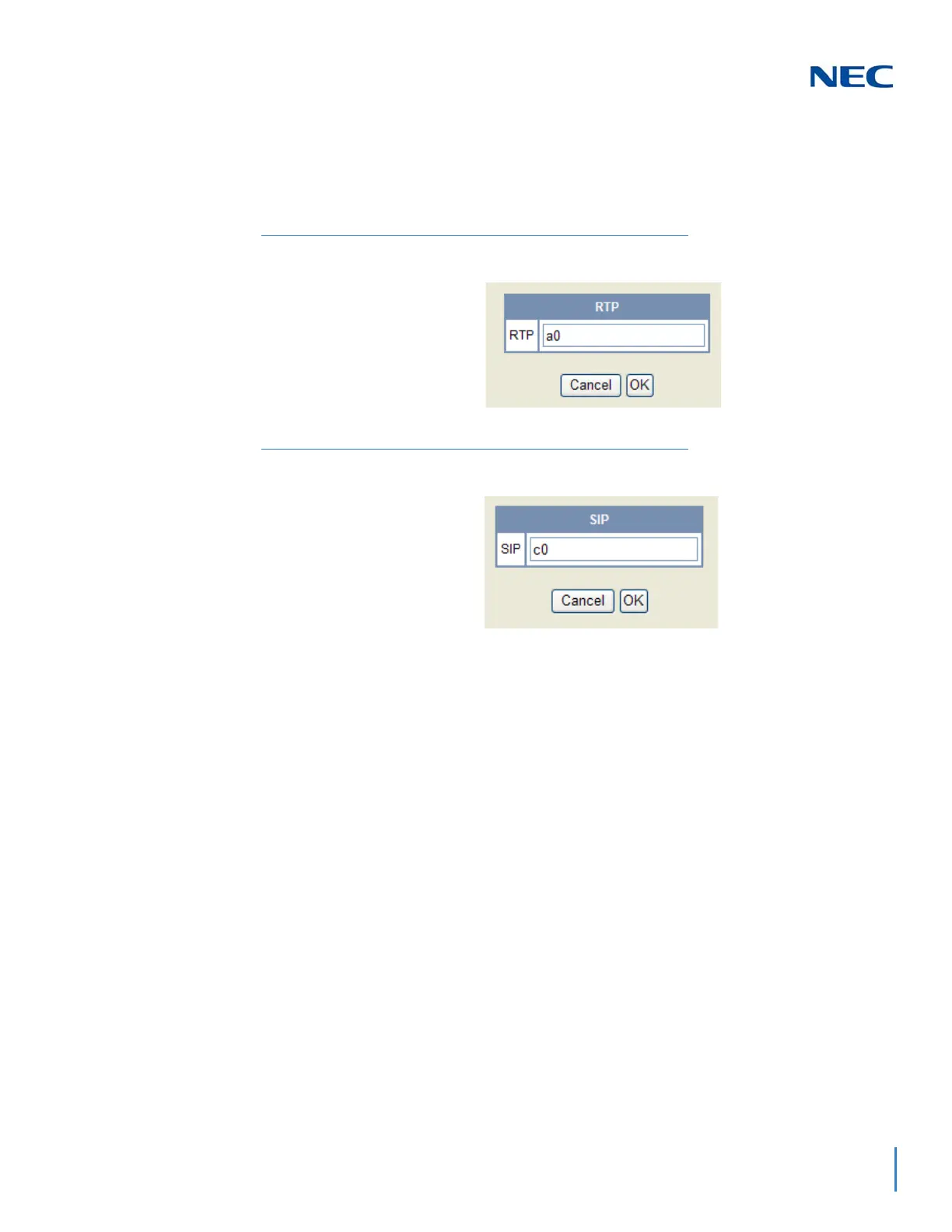

Figure 8-30 RTP - Voice Packets
Figure 8-31 SIP - Signalling Packets
