NEC Univerge SV9100

To Next Page

To Previous Page

Issue 2.0

8-40 IP Multiline Station (SIP)

 Individual. If different IP phones require different ToS assignments, due to the

network configuration, these assignments must be set at each individual station

Command 84-23 requires a Hexadecimal representation of the 8 bit ToS field.

For example, to assign the signaling packets an IP precedence value of 4 and the

voice packets an IP precedence value of 5, it would be as follows. Refer to Figure

8-28 SIP DT800/DT700 Basic Setup.

 80 in Hex is 10000000 - This represents the signaling packets leaving the IP

phone

 A0 in Hex is 10100000 - This represents the voice packets leaving the IP phone

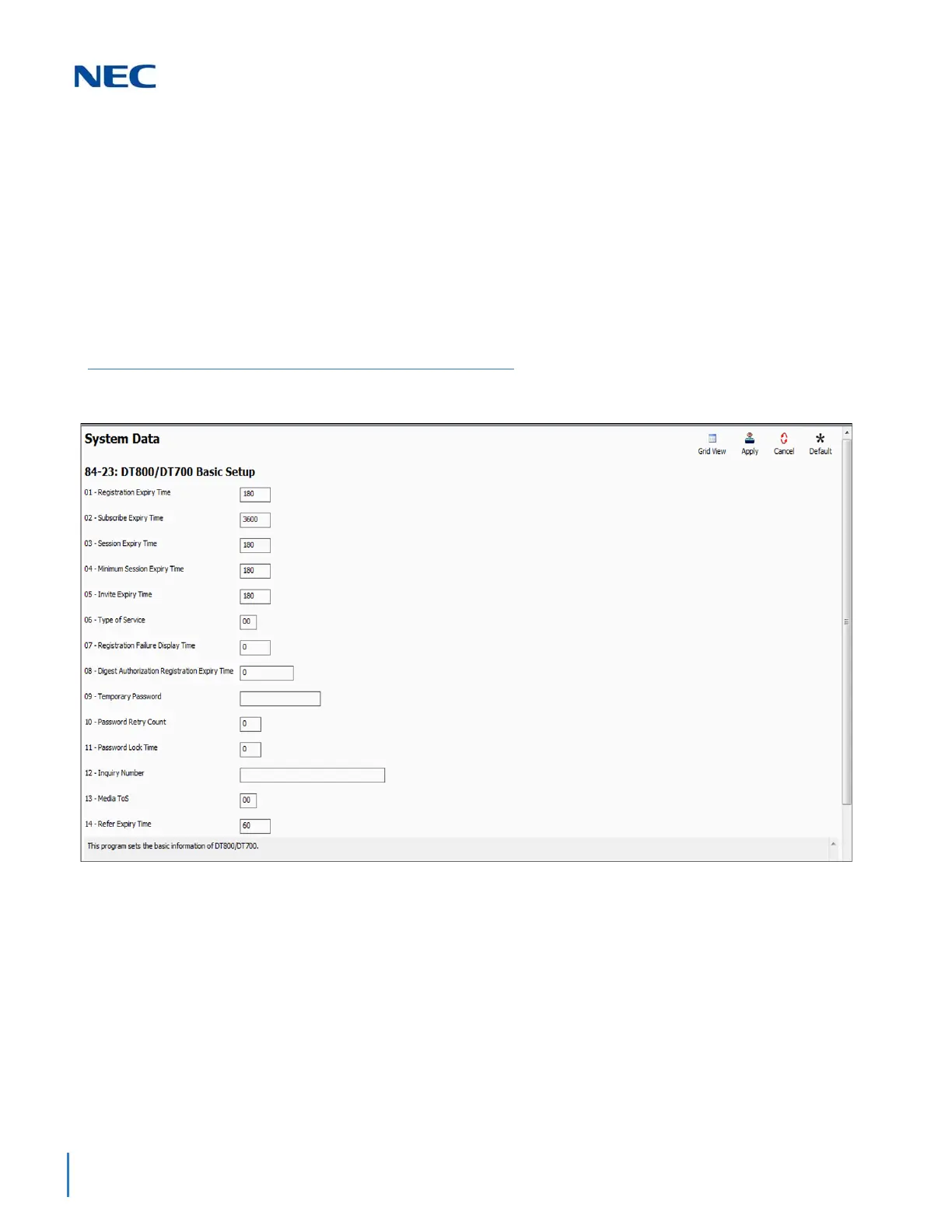

Figure 8-28 SIP DT800/DT700 Basic Setup
