Issue 2.0

SV9100 Networking Manual 8-19

11.3 Configuring an FTP Server

The file generated in the IP Phone Manager must be placed in an anonymous

account.

The following procedure is an example using Quick and Easy FTP server.

1. Click Configure Settings.

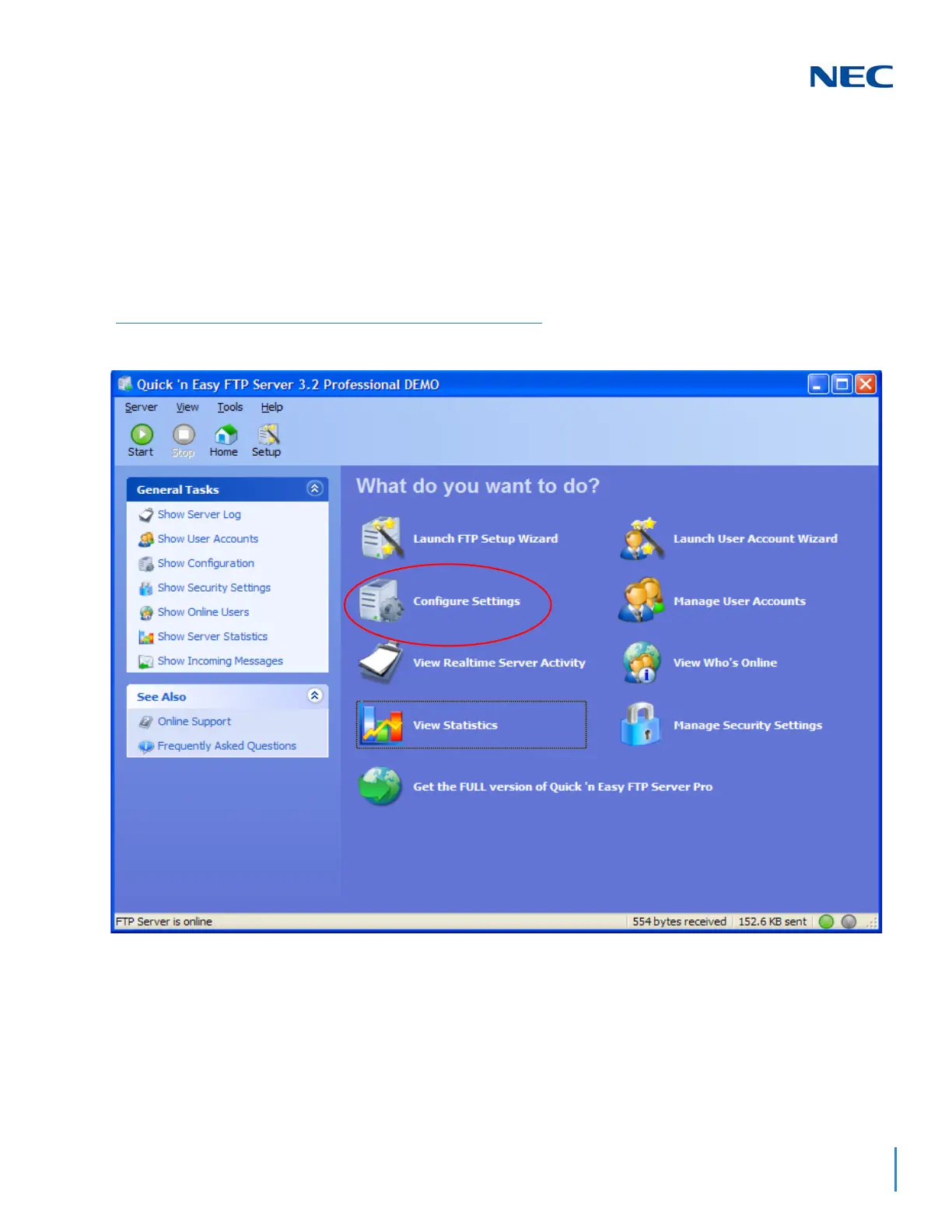

Figure 8-13 Quick ‘n Easy FTP Server
