Issue 2.0
3-6 General IP Configuration
The Network Administrator (or IT Manager) should provide the following:
IP Address (for the GCD-CP10 blade)
IP Addresses (for the GPZ-IPLE)
Subnet Mask
Default Gateway
Range(s) of IP Addresses to assign
List of permanent IP addresses, with corresponding MAC Addresses
A spare switch/hub port
Now connect the UNIVERGE SV9100 GPZ-IPLE Ethernet Port to the switch/hub
port, using a standard CAT-5 patch cable. The UNIVERGE SV9100 is now
configured on the network and its DHCP server is ready to allocate IP addresses.
The client PCs should be set to Obtain IP Address Automatically. Refer to Figure
3-4 TCP/IP Properties Screen on page 3-7.

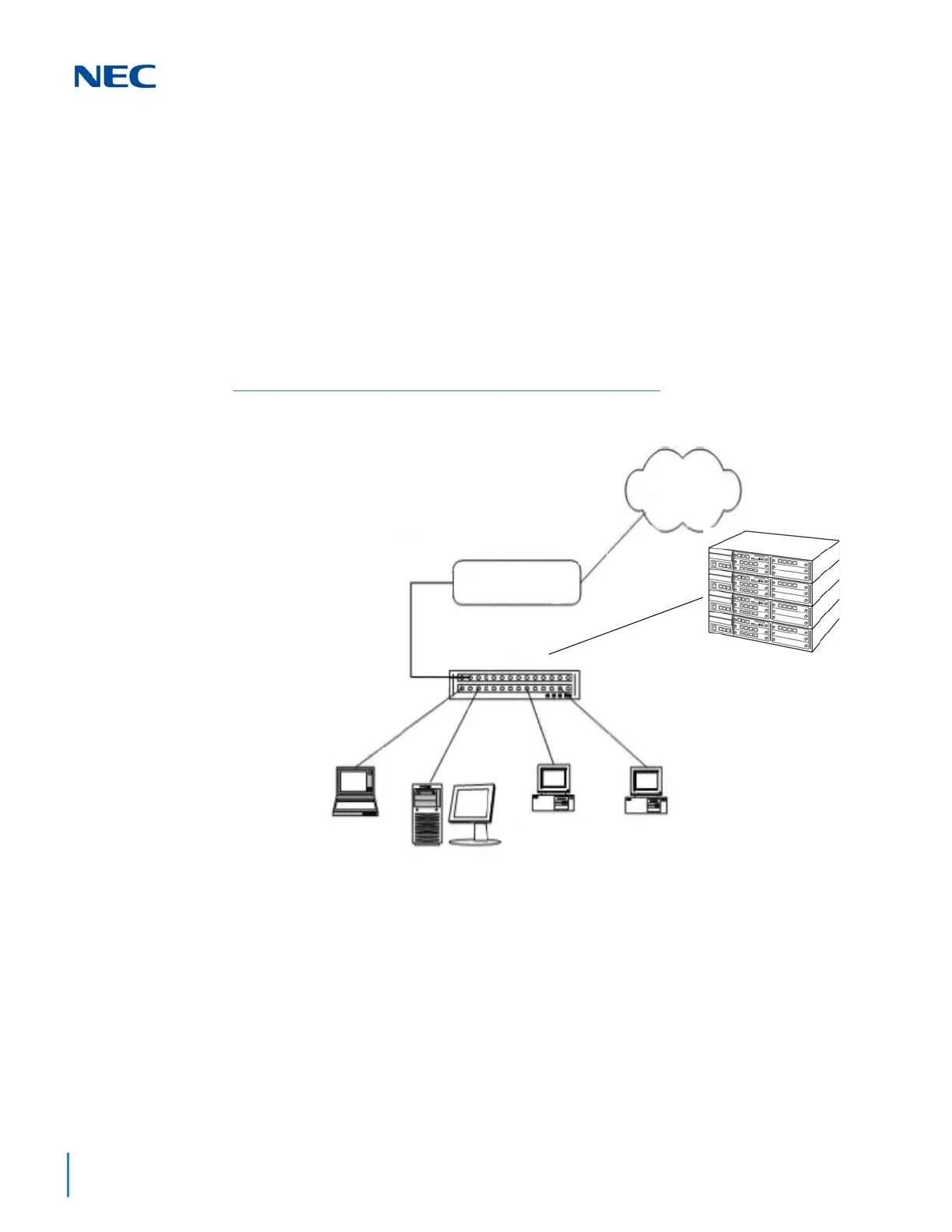

Figure 3-3 Example Configuration 2 - New Network with Dynamic Addressing
Router
(Default
Gateway)
WAN,
Internet, etc.
192.168.1.254
DHCP Client
Server
(should always have
192.168.1.32 assigned)
UNIVERGE SV9100
Chassis with
GCD-CP10
Installed
192.168.1.200
DHCP Client
DHCP Client
Switch
(Switched Hub)
To Next Page
