Issue 2.0

SV9100 Networking Manual 6-29

Incoming call from: +4902131795770

Program 10-02-02 = 00

Program 10-02-03 = 9

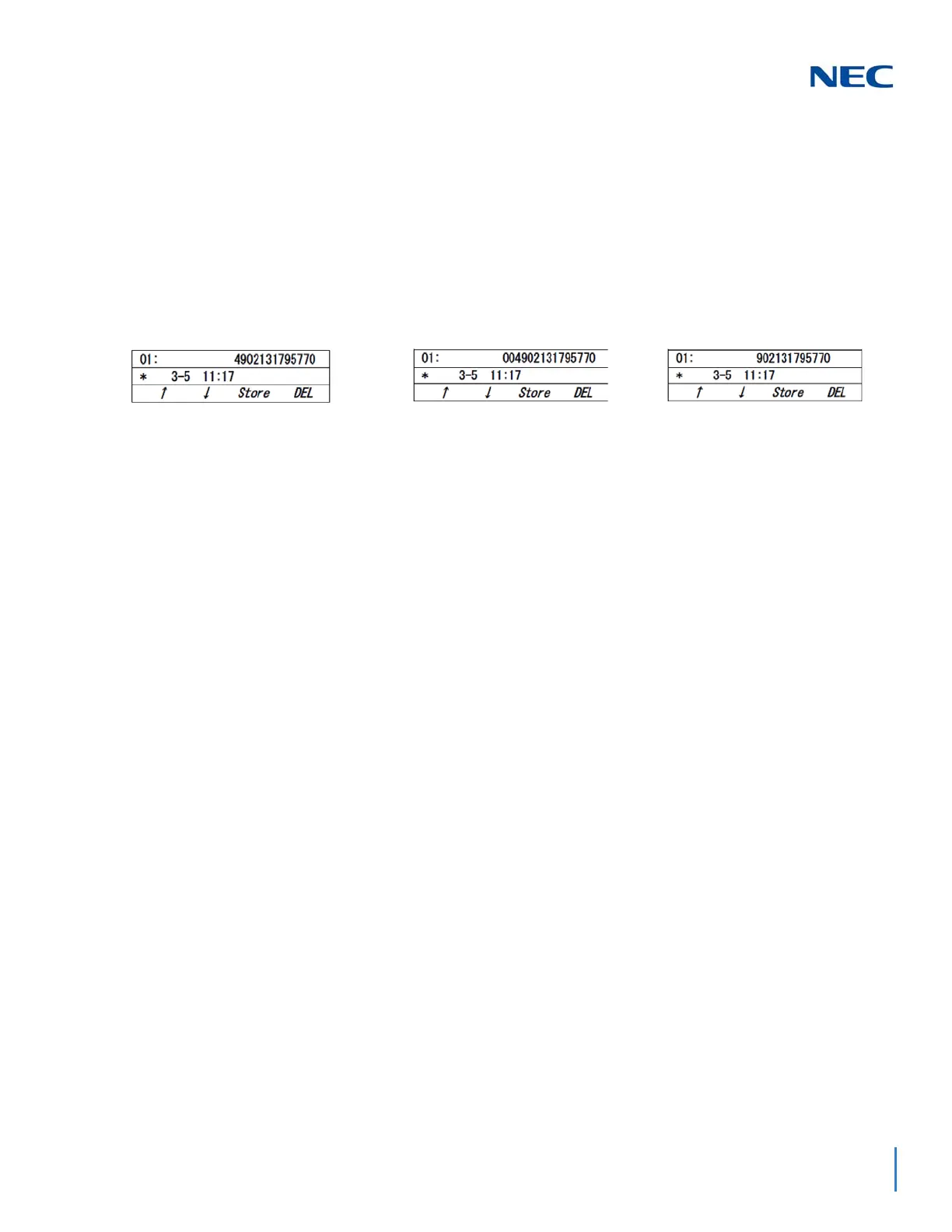

Displayed in terminal incoming caller history as:

Making an outgoing call from history of incoming calls:

1. From an idle multiline terminal.

2. Press soft key List.

3. Press soft key CID.

4. Press Speaker.

Original

Program 10-02-01 = 0

Program 10-02-01 = 49
